What This Product Does
The S4500-8GP is equipped with eight RJ45 ports (10/100/1000 Mbps) with four of them being compliant with 802.3at/af PoE. Users can supply up to 62W total power to connected devices and easily deploy equipment such as wireless access points or IP cameras without worrying about power outlets. PoE support, together with high-performance static routing, enterprise-level QoS, advanced security features, and a choice of Layer 2 management options, make the S4500-8GP an excellent choice for business networking.
Layer 2 and Layer 2+ features include IGMP Snooping, MLD Snooping, and Static Routing. While IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication protect against broadcast storms, ARP attacks, Denial-of-Service (DoS) attacks, and other threats. Quality of Service (QoS) provides enhanced traffic management capabilities to ensure fast transfers for your important data, even when the network is busy. Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image, mean faster setup and configuration with less downtime.
IEEE 802.3at/af-compliant Power over Ethernet
Eight IEEE 802.3at/af-compliant PoE ports supply up to 62 W total power to 802.3at and 802.3af devices.* Quickly and easily set up wireless access points, surveillance cameras, IP phones, and other PoE devices without the hassle and cost of installing power cabling.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission-even when bandwidth is in short supply.
Abundant L2 and L2+ features
The S4500-8GP supports a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee that your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Integrated into Omada Pro
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.** Omada Pro's Software Defined Networking (SD
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- The desktop installation makes it ideal for deployments outside the wiring closet
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Technical Information | |
| Features | Fanless |
| Miscellaneous | |
| Application/Usage | Network |
| Business | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 4 x Mbps PoE+ RJ-45 Network Ports |
| 4 × 10/100/1000 Mbps RJ-45 Network Ports | |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Form Factor | Desktop |

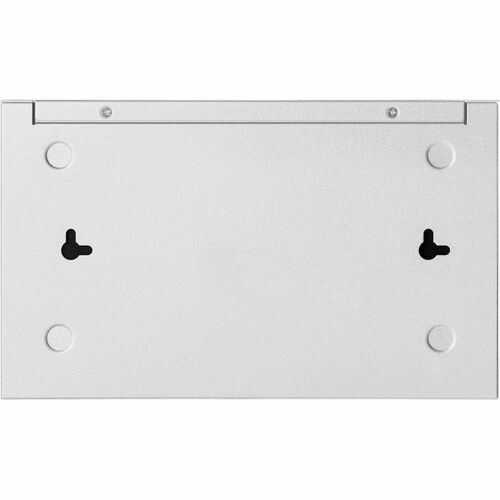

| Wall Mountable | |
| Height | 1" (25.40 mm) |
| Width | 8.20" (208.28 mm) |
| Depth | 4.90" (124.46 mm) |
| Power Description | |
| Input Voltage | 53.5 V DC |
| Power Source | Power Adapter |
| Power Consumption | 77.30 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 62 W |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | S45008GP |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | S4500-8GP |
| Product Name | Omada Pro 8-Port Gigabit Smart Switch with 4-Port PoE+ |
| Product Line | Omada |
| Product Series | Pro |
| Brand Name | TP-Link |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1s |
| IEEE 802.1Q | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3x | |
| IEEE 802.3u | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3i | |
| IEEE 802.1D | |
| IEEE 802.1p |
