What This Product Does

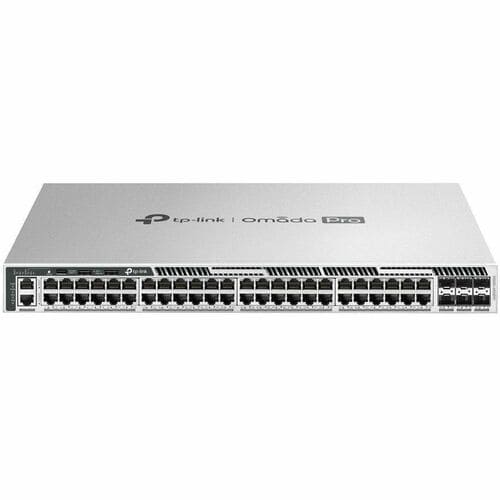

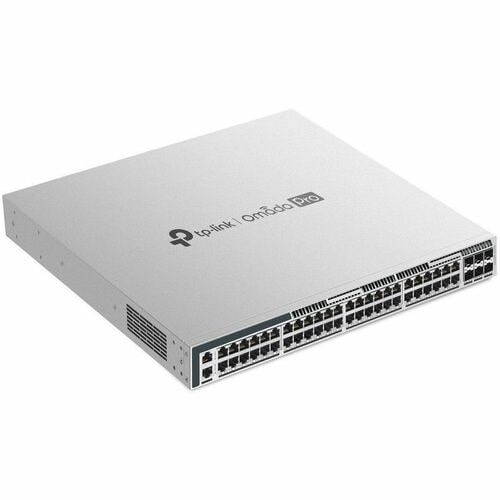

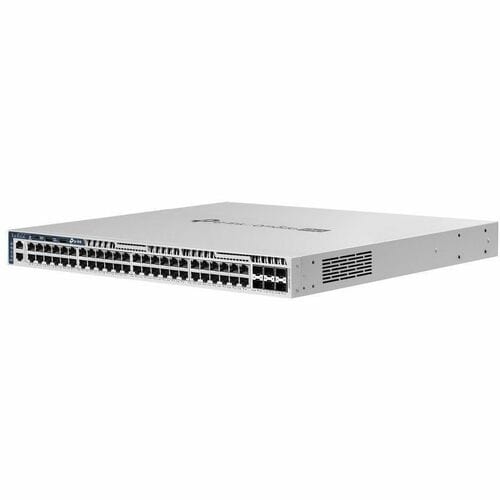

Omada Pro S6500-48G6XF is a high-performance L3 managed switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 48× Gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S6500-48G6XF offers a dependable networking solution for SMBs, enterprises, and ISPs.
High-speed Connectivity and Powerful Stacking
48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Physical stacking of up to 12 units?enhances network performance and redundancy.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.
Comprehensive Security Functions
Defend against a range of network threats with MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X. MACsec works with the 802.1X protocol to ensure secure communication of all traffic on Ethernet links. Secure Boot protects the operating system from malicious attacks.
Highly Available

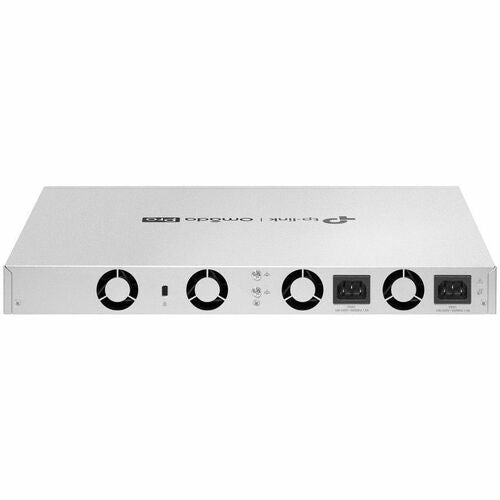

Internally fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.
Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface.
Apart from central management via the web or Omada app, S6500-48G6XF can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Technical Information | |
| Features | Energy Efficient |
| High Availability Supported | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 6 |
| Total Number of Expansion Slots | 6 |
| Miscellaneous | |
| Application/Usage | Business |
| Enterprise | |
| Network | |
| Package Contents |
|
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 15" (381 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | S6500-48G6XF |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | S6500-48G6XF |
| Product Name | Omada Pro 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots |
| Product Line | Omada Pro |
| Brand Name | TP-Link |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 1000Base-X | |
| 10/100/1000Base-T | |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1x | |
| IEEE 802.3az | |
| IEEE 802.1p | |
| IEEE 802.1ab | |
| IEEE 802.3ah | |
| IEEE 802.3x | |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 39.80 W |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply Supported | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 × 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port |
| 1 × RJ-45 Management Port | |
| 6 × 1/10 Gigabit Ethernet SFP+ Expansion Slot | |
| 1 × RJ45 Console Port | |
| 1 × USB Type-C Console Port | |
| 2 × USB 2.0 Port |
