À propos du produit

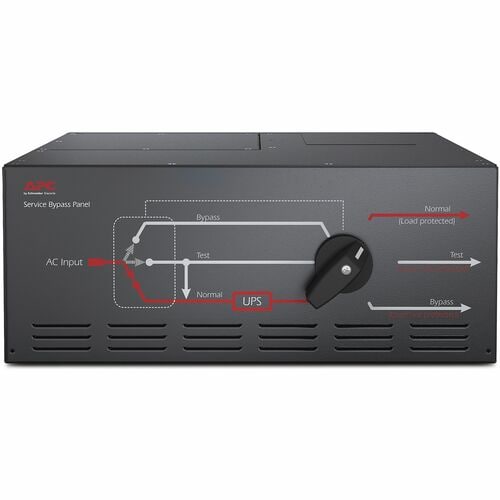

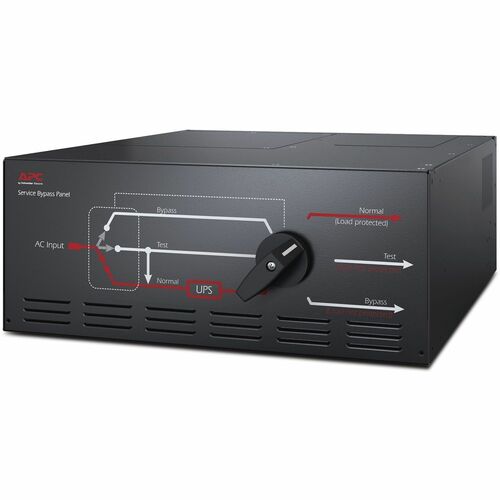

Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.

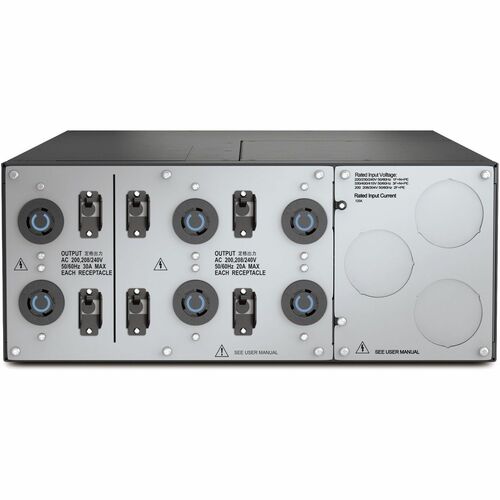

- APC Service Bypass Panel 200/208/240V 125A HW input (2) L6-30R (4) L6-20R output
- Extremely reliable service bypass panels designed for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS products.
- Includes : Installation Guide , Rack Mounting Brackets , User Manual
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years (parts only) |
| Technical Information | |
| Protection Type | Overload |
| Receptacles | 1 x Hard Wire 3-wire (2PH + G) |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| General Information | |
| Product Type | Bypass Panel |
| Manufacturer Part Number | SBP20KRMT4U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Bypass Panel |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V AC |
| 200 V AC | |
| 240 V AC | |
| Output Voltage | 240 V AC |
| 208 V AC | |
| 200 V AC | |
| Current | 125 A |
| Load Capacity (VA) | 20 kW |
| Physical Characteristics | |
| Weight (Approximate) | 41.40 lb (18778.72 g) |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7.01" (178 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.52" (572 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Compatibility | APC Products:
|
| Certifications & Standards | CSA|GOST |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP2200RM_ROHS_DECLARATION&p_FileName=SBP2200RMKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035289&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035289&lang=en-us |
| REACH free of SVHC | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
