À propos du produit

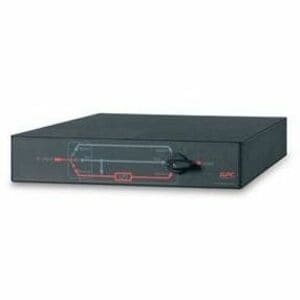

Panneaux de dérivation de service extrêmement fiables conçus pour les produits APC InfraStruXure® Type A, Smart-UPS et Symmetra UPS.
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years (parts only) |
| Technical Information | |
| Protection Type | Overload |

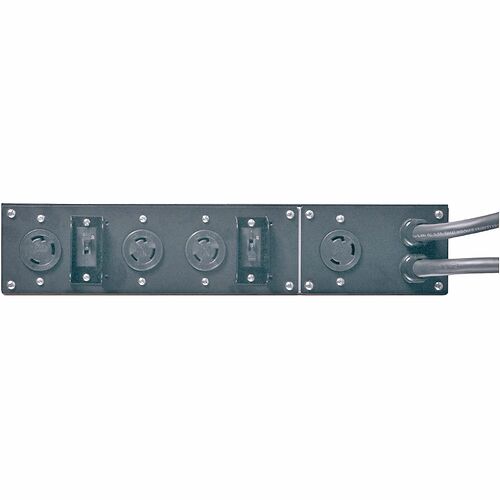

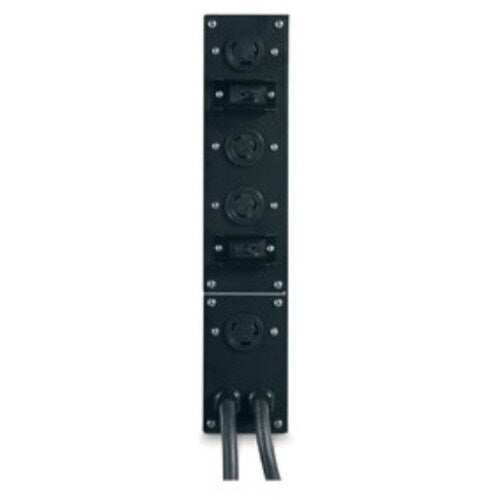

| Receptacles | 2 x NEMA L6-20R |
| 1 x NEMA L6-30R | |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 10 ft (3048 mm) |
| Power Description | |
| Input Voltage | 200 V AC |
| 208 V AC | |
| Output Voltage | 208 V AC |
| 200 V AC | |
| Current | 30 A |
| Load Capacity (VA) | 6 kW |
| General Information | |
| Product Type | Bypass Panel |
| Manufacturer Part Number | SBP6KRMT2U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | 19" Rack Mountable 30A Maintenance Bypass Panel |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 30.07 lb (13639.52 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (89 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25.98" (660 mm) |
| Product Color | Gray |
| Color Family | Gray |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | CSA|GOST |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP6KRMT2U_ROHS_DECLARATION&p_FileName=SBP6KRMT2UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764550&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764550&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
