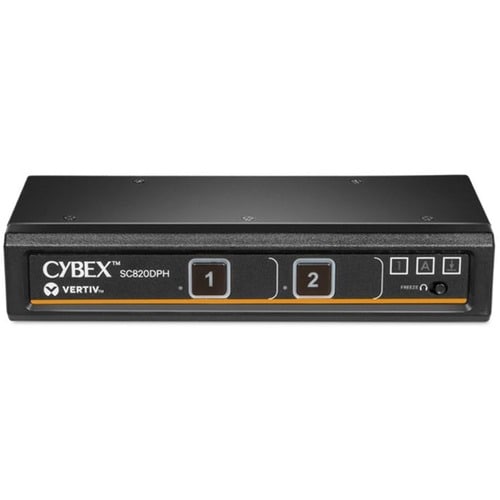

The Vertiv Avocent Cybex SC820DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC820DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz on a single display, delivering crisp, clear visuals. The two universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems, while a 3.5mm audio jack supports alerts and notifications. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC820DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access. With a universal power supply and 4K support, it offers both security and performance in a streamlined solution.
- NIAP 4.0 Certified: Security: Secure 2-port KVM with always-on anti-tampering, NIAP 4.0 certified.
- Enhanced Situational Awareness: Equipped with customizable indicators that display active channels.
- Versatile Video Support: Supports DP, HDMI, and DVI-I up to 3840 x 2160 resolution for HD visuals.
- Zero Delay Switching: Instant mouse and keyboard switching with emulation for lag-free transitions.
- Peripheral Isolation: Combines keyboard, mouse, and display into one setup for a clutter-free space.
Spécifications techniques
| Power Description | |
| Input Current | 1.50 A |
| Input Voltage Range | 100VAC-240VAC |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | NIAP 4.0 Certified |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 3 lb (1360.78 g) |
| Form Factor | Rack-mountable |
| Desktop | |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 7" (177.80 mm) |
| Depth | 2.40" (60.96 mm) |
| Technical Information | |
| Connectivity Technology | Wired |
| Features | Tamper Resistant |
| Intrusion Detection | |
| Maximum Operating Distance | 10 ft (3048 mm) |
| KVM Technology | Digital & Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Device Type | Secure KVM |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SC820DPH-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | SC820 |
| Product Name | Cybex SC800 Secure Desktop KVM, Single Head Monitor, 2 Port, NIAP V4.0 Certified, TAA Compliant, Common Criteria PP3.0 (SC820DPH-400) |
| Product Line | Cybex |
| Product Series | 800 |
| Brand Name | Vertiv AVOCENT |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| DVI | Yes |
| VGA | No |
| Number of Network (RJ-45) Ports | 0 |
| Network (RJ-45) | No |
| Number of USB Ports | 4 |
| DisplayPort | Yes |
| Management Port | No |
| PS/2 Port | No |
| Number of PS/2 Ports | 2 |
| Number of VGA Ports | 0 |
| Number of DisplayPorts | 3 |
| Number of DVI Ports | 0 |
