À propos du produit

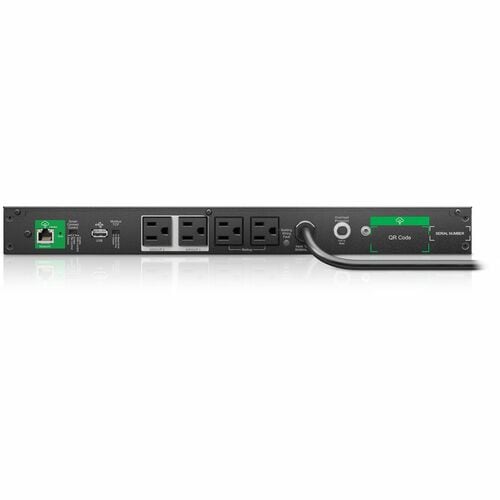

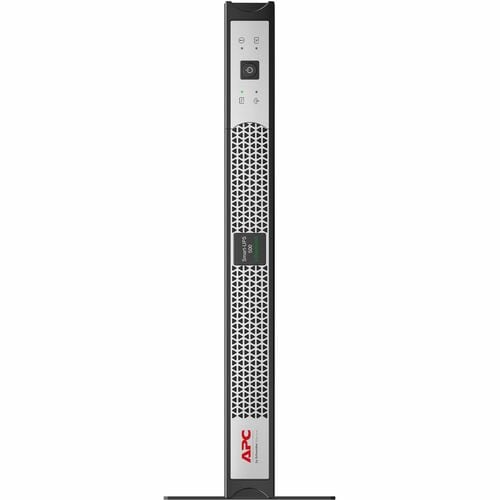

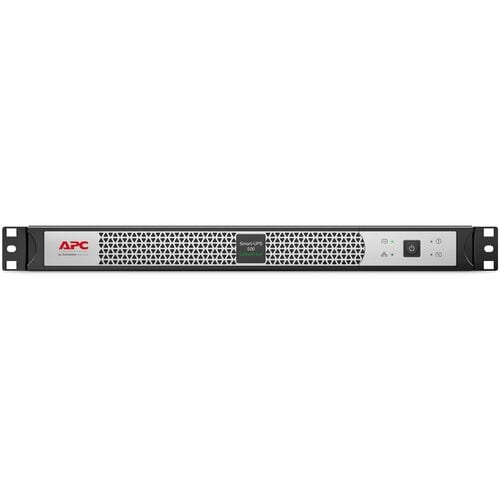

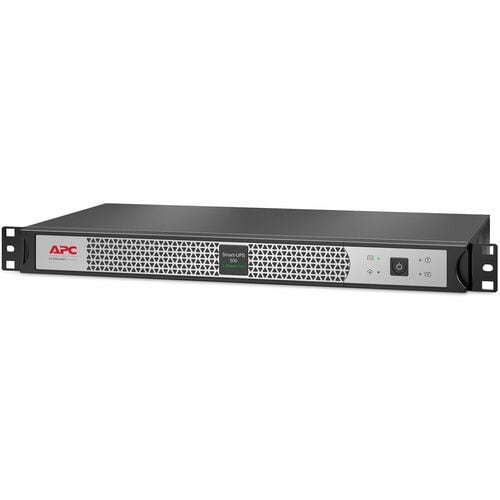

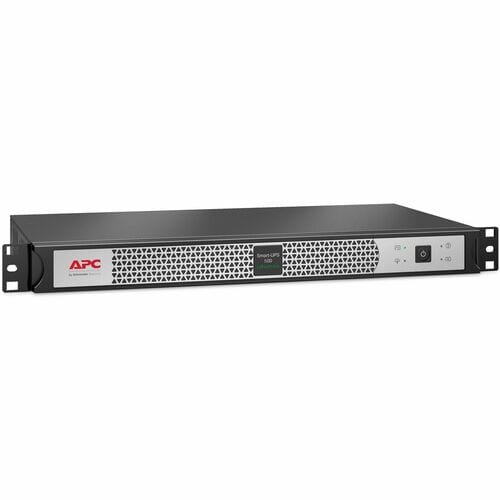

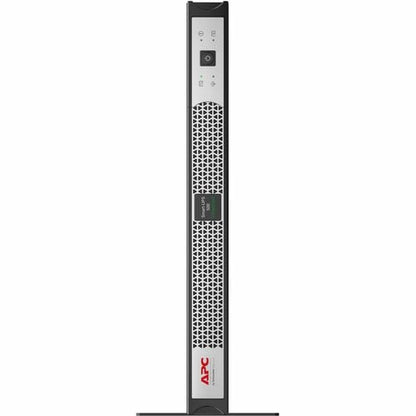

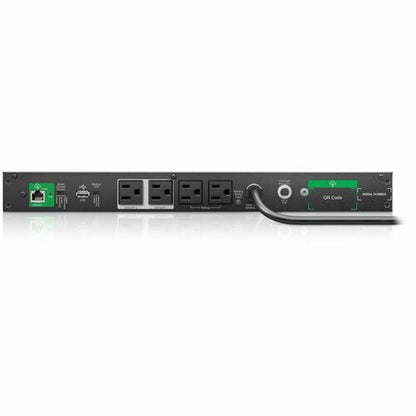

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Works adequately in situations where the supply is prone to sags and surges
- 400 W load capacity - backup power for your valuable electronics
- 500 VA load capacity provides sufficient backup during power failures
- Up to 2.70 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Display |
| Warranty | |
| Additional Warranty Information | 5 year repair or replace |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 6561 ft (1999792.80 mm) |
| Maximum Storage Elevation | 49212 ft (14999817.60 mm) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SmartConnect |
| Alarm | On Battery |
| Low Battery | |
| Configurable Delay | |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SCL500RM1UC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 500VA Rack/Floor Mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 680 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 92 V AC - 139 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 400 W |
| Physical Characteristics | |
| Weight (Approximate) | 9.22 lb (4182.12 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.13" (232 mm) |
| Product Color | Black |
| Silver | |
| Color Family | Dual Color |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute Serial Edition |
| Certifications & Standards | cULus|NOM |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UC_ROHS_DECLARATION&p_FileName=SCL500RM1UCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500677&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500677&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN |
| REACH free of SVHC | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Application/Usage | Communication System |
| Switch | |
| Storage | |
| Server | |
| Security System | |
| Router | |
| POS Terminal | |
| Network Hub | |
| Business | |
| Voice/Data Network | |
| Equipment | |
| Network | |
| Dataline Protection | RJ-45 |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15P |
| AVR | Yes |
| Number of Battery & Surge Outlets | 4 |
| Transfer Time | 10 ms |
| Receptacle Detail | 4 x NEMA 5-15R |
