À propos du produit

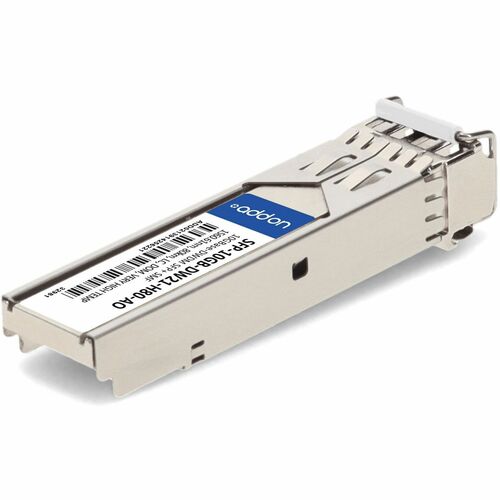

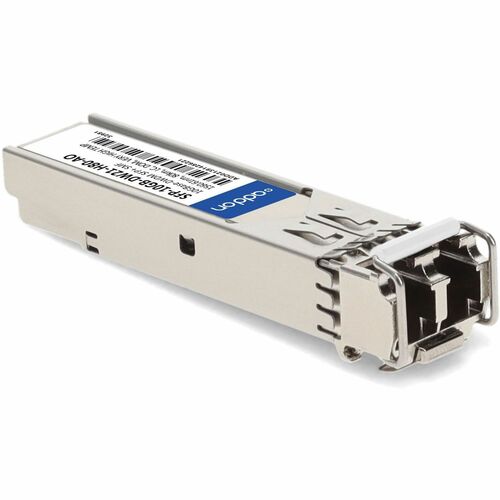

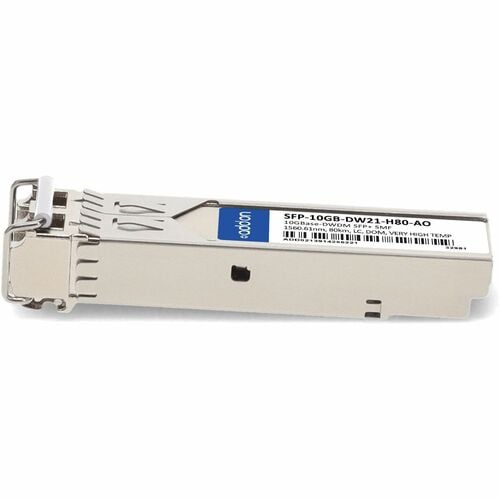

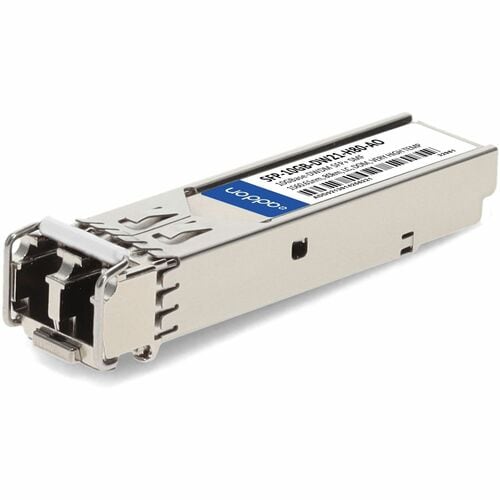

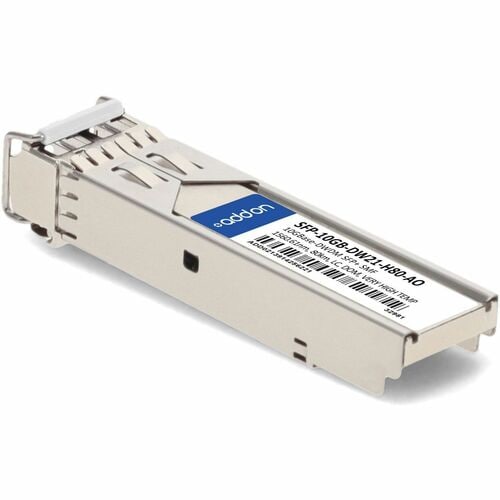

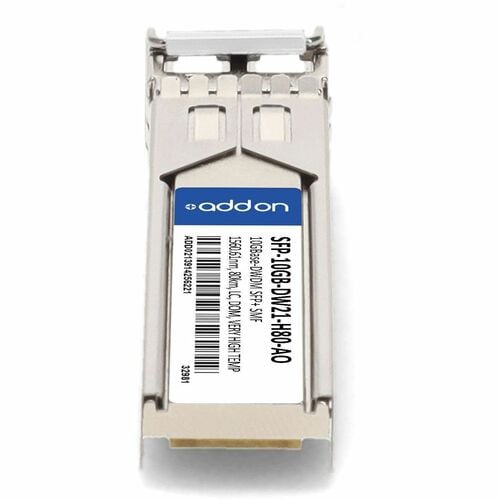

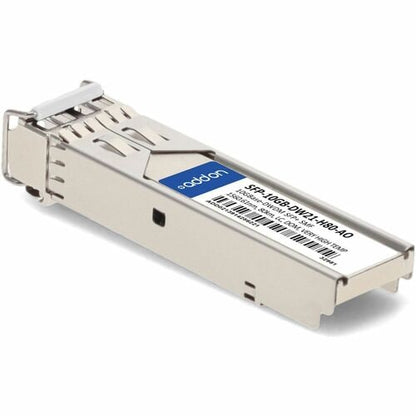

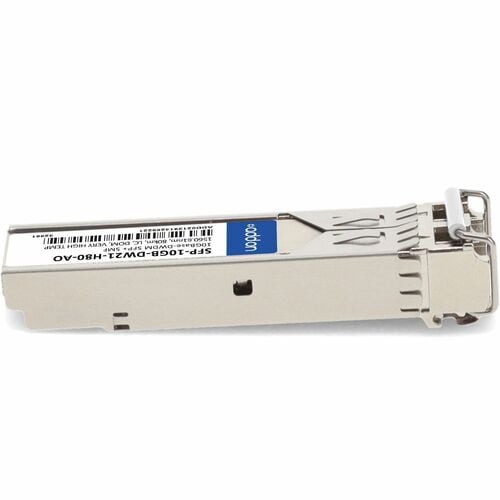

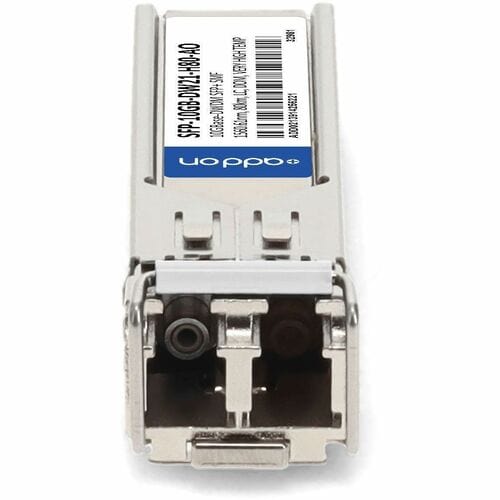

This MSA compliant SFP+ transceiver provides 10GBase-DWDM throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1560.61nm via an LC connector. It can operate at temperatures between -40 and 92C. All of our transceivers are built to comply with Multi-Source Agreement (MSA) standards and are uniquely serialized and tested for data-traffic and application to ensure seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Enjoy flexibility and scalability with data transfer rate of up to 10 Gbps with 10 Gigabit Ethernet technology
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
- With 10GBase-DWDM technology, get up to 10Gbps data transfer rate using dense wavelength-division multiplexing
Spécifications techniques
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 197.6°F (92°C) |
| Interfaces/Ports | |
| Interfaces/Ports Details | LC 10GBase-DWDM Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| Features | Digital Optical Monitoring (DOM) |
| Physical Characteristics | |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Form Factor | Hot-pluggable |
| Height | 0.40" (10.16 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 2.20" (55.88 mm) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States/United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | SFP+ |
| Manufacturer Part Number | SFP-10GB-DW21-H80-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Name | SFP+ Module |
| Brand Name | AddOn |
| Media & Performance | |
| Maximum Distance Supported | 80 km (49.71 Mile) |
| Network Technology | 10GBase-DWDM |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
