À propos du produit
- 48× Gigabit RJ45 Ports (8× PoE++, 40× PoE+)
- 4× 10 Gbps SFP+ Slots
- 750 W Total PoE Budget (Max 90 W for Each PoE++ Port)
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring Protection Switching
- Static Routing
Empowering the High-Power Devices with Gigabit PoE++ Ports
8× Gigabit PoE++ RJ45 Ports
40× Gigabit PoE+ RJ45 Ports
Budget Up to 90W per PoE++ Port
Total 750W PoE Power
- Access Points
- PTZ HD IP Cameras with Heaters
- Smart Building Lighting
- Audio System
- Thin Clients
Easily Build a Whole 10G Multi-gigabit Network
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 750 W total PoE budget
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology

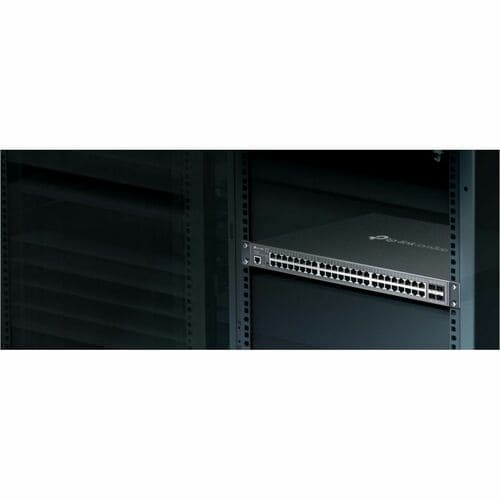

- Durable metal casing and rack-mountable design
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Reliability | |
| MTBF | 275277 Hour |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4 |
| Technical Information | |
| Features | Zero-Touch Provisioning (ZTP) |
| Loop Protection | |
| Intelligent monitoring | |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE++ |
| 40 x Gigabit Ethernet PoE+ | |
| 4 x 10 Gigabit Ethernet Expansion Slot | |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Standalone | |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 13" (330.20 mm) |
| Compatible Rack Unit | 1U |
| Product Material | Metal |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SG3452XMPP |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | SG3452XMPP |
| Product Name | Omada SG3452XMPP Ethernet Switch |
| Product Line | Omada |
| Brand Name | TP-Link |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 913.40 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 750 W |
| Miscellaneous | |
| Application/Usage | Enterprise |
| IP Camera | |
| Network | |
| Office | |
| Retail | |
| Security | |
| Wireless Access Point | |
| Campus | |
| Education | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ab |
| IEEE 802.1x | |
| IEEE 802.3ab | |
| IEEE 802.3ae | |
| IEEE 802.3af | |
| IEEE 802.3ah | |
| IEEE 802.3at | |
| IEEE 802.3bt | |
| IEEE 802.3i | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1w | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.3ad |
