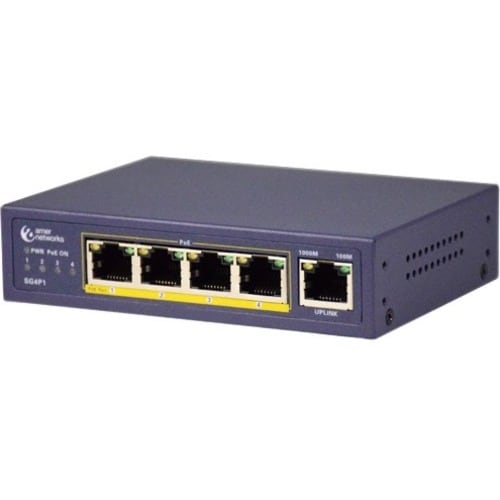

Designed for use with Power over Ethernet (PoE) devices, the SG4P1 switch provides up to 15.4W of power to 802.3af PoE compatible devices connected to the switch's PoE ports. The Switch allows these devices to draw power from the switch and remove the need for a power adapter. Some devices that may have support for 802.3af are Wireless Access Points, IP Phones and IP Cameras. The Ethernet ports automatically negotiate between 10BASE-T and 100BASE-TX network speeds, as well as between full and half duplex modes, so any port can connect to a Fast Ethernet or Ethernet network. The ports also support Auto MDIX, allowing the automatic detection of a straight through or cross-over cable, this feature reduces support problems commonly caused by incorrect cable usage.
- 4 x 1 Gigabit PoE Ethernet Ports plus 1 Gigabit Ethernet Uplink Port
- Standard IEEE802.3af support
- Metal Chassis Construction
- Wall and Desktop Mounting
- RJ-45 Port Alignment
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | Power Adapter |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Interfaces/Ports | |
| Modular | No |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| 1 x Gigabit Ethernet Uplink | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SG4P1 |
| Manufacturer Website Address | http://www.amermounts.com |
| Packaged Quantity | 1 |
| Manufacturer | Amer Networks, Inc |
| Product Model | SG4P1 |
| Product Name | 5 Port 10/100/1000 Desktop Switch with 4 PoE ports |
| Brand Name | Amer |
| Physical Characteristics | |
| Weight (Approximate) | 10.88 oz (308.442812 g) |
| Form Factor | Wall Mountable |
| Under Table | |
| Desktop | |
| Length | 4.65" (118.11 mm) |
| Height | 1.10" (27.94 mm) |
| Width | 3.35" (85.09 mm) |
| Product Color | Blue |
| Color Family | Blue |
