À propos du produit

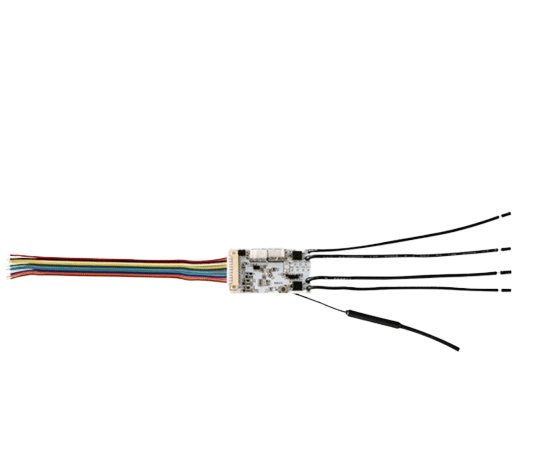

The Shelly Plus Uni is a compact and intelligent universal module that has two solid state relays with potential free contacts, two analogue inputs, a pulse counter, and two digital inputs. It enables remote control of electrical appliances via a PC, tablet, smartphone, or home automation system. It has two modes of operation: standalone on a local Wi-Fi network and cloud-based home automation services.
As long as the device is linked to both a Wi-Fi router and the Internet, Shelly Plus Uni may be seen, managed, and watched remotely from any location where the user has internet access.
The inbuilt Web Interface of Shelly Plus Uni allows for device control and monitoring in addition to setup adjustments.
Shelly Plus Uni Features:
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
- Suitable for small appliances with low-voltage AC and DC applications (8-24 VAC, 9-28 VDC, and 5 VDC)
- Has two digital and 1 analog inputs
- Supports 1-Wire sensors (single DHT22 & up to 5 DS18B20)
- Compatible with most Arduino sensors! Use its digital or analog inputs to measure your desired parameters and create complex automation scenes based on the sensor data
- Receive precise data readings from your energy/gas/water meter (or any other meter that supports pulse count readings via external sensors)
- Wi-Fi Range Extender & BLE Gateway
- Extremely fast processor for immediate reaction - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Shelly Plus Specifications:
- PCB size (LxWxH): 40x21x7 mm / 1.57x0.83x0.28 in
- Weight: 8.5 g / 0.3 oz (with the cables)
- Ambient temperature: -20 °C to 40 °C / -4 °F to 104 °F
- Humidity: 30 % to 70 % RH
- Power supply: 8-24 VAC / 9-28 VDC / 5 VDC (stabilized, via +5 VDC and GND)
- Power consumption: < 1 W
- Digital inputs resistance: 50 k?
- Digital inputs triggering voltage: 1.5 V (active low level)
- Max switching voltage: 30 V
- Max switching current: 250 mA
- Voltmeter: 0-15 VDC / 0-30 VDC (Two-range)
- Pulse counter input triggering voltage: 1.5 V (active low level)
- Pulse counter max frequency: 1 kHz
- External sensors supported: Single DHT22 or up to five DS18B20
- RF band: 2400 - 2495 MHz
- Max. RF power: < 20 dBm
- Wi-Fi protocol: 802.11 b/g/n
- WI-FI OPERATIONAL RANGE (DEPENDING ON LOCAL CONDITIONS):
- up to 50 m / 160 ft outdoors
- up to 30 m / 100 ft indoors
- Bluetooth protocol: 4.2
- BLUETOOTH OPERATIONAL RANGE (DEPENDING ON LOCAL CONDITIONS):
- up to 30 m / 100 ft: outdoors
- up to 10 m / 33 ft: indoors
- CPU: ESP32
- Flash: 4 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
Spécifications techniques
The Shelly Plus Uni is a compact and intelligent universal module that has two solid state relays with potential free contacts, two analogue inputs, a pulse counter, and two digital inputs. It enables remote control of electrical appliances via a PC, tablet, smartphone, or home automation system. It has two modes of operation: standalone on a local Wi-Fi network and cloud-based home automation services.
As long as the device is linked to both a Wi-Fi router and the Internet, Shelly Plus Uni may be seen, managed, and watched remotely from any location where the user has internet access.
The inbuilt Web Interface of Shelly Plus Uni allows for device control and monitoring in addition to setup adjustments.
Shelly Plus Uni Features:
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
- Suitable for small appliances with low-voltage AC and DC applications (8-24 VAC, 9-28 VDC, and 5 VDC)
- Has two digital and 1 analog inputs
- Supports 1-Wire sensors (single DHT22 & up to 5 DS18B20)
- Compatible with most Arduino sensors! Use its digital or analog inputs to measure your desired parameters and create complex automation scenes based on the sensor data
- Receive precise data readings from your energy/gas/water meter (or any other meter that supports pulse count readings via external sensors)
- Wi-Fi Range Extender & BLE Gateway
- Extremely fast processor for immediate reaction - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Shelly Plus Specifications:
- PCB size (LxWxH): 40x21x7 mm / 1.57x0.83x0.28 in
- Weight: 8.5 g / 0.3 oz (with the cables)
- Ambient temperature: -20 °C to 40 °C / -4 °F to 104 °F
- Humidity: 30 % to 70 % RH
- Power supply: 8-24 VAC / 9-28 VDC / 5 VDC (stabilized, via +5 VDC and GND)
- Power consumption: < 1 W
- Digital inputs resistance: 50 k?
- Digital inputs triggering voltage: 1.5 V (active low level)
- Max switching voltage: 30 V
- Max switching current: 250 mA
- Voltmeter: 0-15 VDC / 0-30 VDC (Two-range)
- Pulse counter input triggering voltage: 1.5 V (active low level)
- Pulse counter max frequency: 1 kHz
- External sensors supported: Single DHT22 or up to five DS18B20
- RF band: 2400 - 2495 MHz
- Max. RF power: < 20 dBm
- Wi-Fi protocol: 802.11 b/g/n
- WI-FI OPERATIONAL RANGE (DEPENDING ON LOCAL CONDITIONS):
- up to 50 m / 160 ft outdoors
- up to 30 m / 100 ft indoors
- Bluetooth protocol: 4.2
- BLUETOOTH OPERATIONAL RANGE (DEPENDING ON LOCAL CONDITIONS):
- up to 30 m / 100 ft: outdoors
- up to 10 m / 33 ft: indoors
- CPU: ESP32
- Flash: 4 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
