À propos du produit

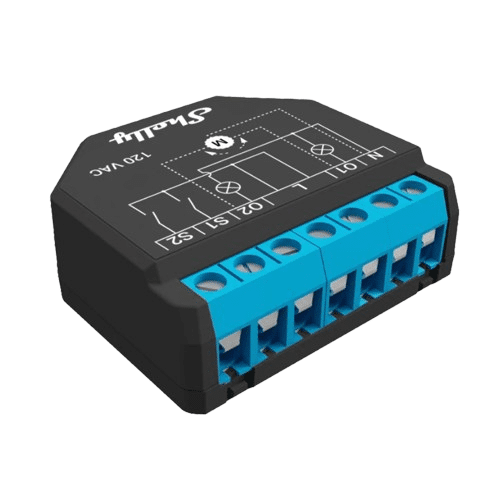

The UL-certified Shelly Plus 2PM UL is a tiny form factor 2-channel smart switch with cover control and power monitoring that enables remote management of electric appliances via a PC, tablet, smartphone, or home automation system. It may be controlled by cloud-based home automation services or it can run independently in a local Wi-Fi network.
As long as the Shelly Plus 2PM UL is linked to both a Wi-Fi network and the Internet, it may be seen, managed, and observed remotely from any location where the user has Internet access.

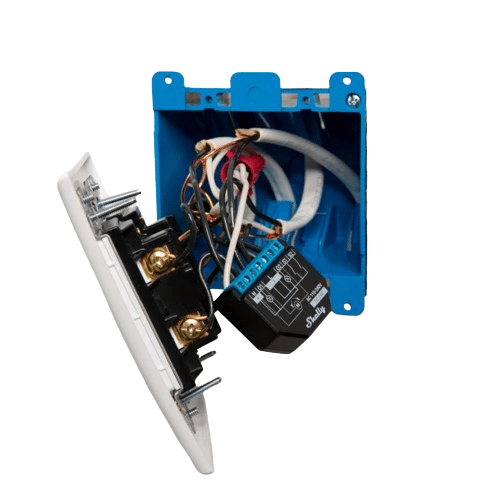

It may be adapted into conventional electrical wall boxes, beneath light switches and power outlets, and other spaces that are tight on space.
An incorporated web interface on the Shelly Plus 2PM UL allows for device control and monitoring, as well as configuration adjustments.
Shelly Plus 2PM UL Features:
- 2 channels on the same phase
- Power metering on each channel
- Cover (roller) control - automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
- Scripting, schedules and webhooks
- Designed to fit in most standard electrical boxes and switches
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Shelly Plus 2PM UL Specifications:
- Physical
- Mounting: Flush mounting
- Screw terminals max torque: 0.25 Nm / 2.2 bin
- Conductor cross section: 1.0 to 2.5 mm? / 16 to 14 AWG
- Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
- Shell material: Plastic
- Color: Black
- ENVIRONMENTAL
- Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
- Humidity 30 % to 70 % RH
- Max. altitude 2000 m / 6562 ft
- ELECTRICAL
- Power supply: 120 VAC, 50/60Hz
- Power consumption: < 1.4 W
- OUTPUT CIRCUITS RATINGS
- Max switching voltage AC: 120 V
- Max switching voltage DC: N/A
- Max switching current AC: 8 A (per channel), 16 A (total)
- Max switching current DC: N/A
- SENSORS, METERS
- Internal-temperature sensor: Yes
- Voltmeter (AC) Yes
- Ammeter (AC) Yes
- RADIO
- RF band: 2400 - 2495 MHz
- Max. RF power: <20 dBm
- Wi-Fi protocol: 802.11 b/g/n
- Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
- DEPENDS ON LOCAL CONDITIONS
- Bluetooth Protocol: 4.02.2024 ?.
- Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on Local Conditions)
- MCU
- CPU: ESP32
- Flash: 4 MB
- Firmware capabilities
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
- CoAP: No
- SPECIAL FUNCTIONS
- Dry contacts No
- Cover (roller) control Yes, with position control- roller shutters, blinds, awnings, curtains, gates, shades, sliding door, garage door, bi directional AC motors
- Overload protection Yes
- Power measurement Yes
- Overtemperature protection Yes
- Working without a neutral line No
- FEATURES
- HTTP/HTTPS webhooks Yes
- Custom scripts (mJs) Yes
- Operational temperature -20°C to + 40 °C
- Device power consumption < 1.4 W
- Local and remote control Yes
- Sunrise/Sunset Yes
- Weekly Schedule Yes
- cUL Listed Yes
- CONNECTIVITY
- Wireless 802.11 b/g/n
- Wi-Fi Radio frequency 2400 – 2500 MHz
- Wi-Fi Radio signal power 1mW
- Wi-Fi Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
- DIMENSIONS
- Size : 37x42x16 mm / 1.46x1.65x0.63 in
Spécifications techniques
The UL-certified Shelly Plus 2PM UL is a tiny form factor 2-channel smart switch with cover control and power monitoring that enables remote management of electric appliances via a PC, tablet, smartphone, or home automation system. It may be controlled by cloud-based home automation services or it can run independently in a local Wi-Fi network.
As long as the Shelly Plus 2PM UL is linked to both a Wi-Fi network and the Internet, it may be seen, managed, and observed remotely from any location where the user has Internet access.
It may be adapted into conventional electrical wall boxes, beneath light switches and power outlets, and other spaces that are tight on space.
An incorporated web interface on the Shelly Plus 2PM UL allows for device control and monitoring, as well as configuration adjustments.
Shelly Plus 2PM UL Features:
- 2 channels on the same phase
- Power metering on each channel
- Cover (roller) control - automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
- Scripting, schedules and webhooks
- Designed to fit in most standard electrical boxes and switches
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Shelly Plus 2PM UL Specifications:
- Physical
- Mounting: Flush mounting
- Screw terminals max torque: 0.25 Nm / 2.2 bin
- Conductor cross section: 1.0 to 2.5 mm? / 16 to 14 AWG
- Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
- Shell material: Plastic
- Color: Black
- ENVIRONMENTAL
- Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
- Humidity 30 % to 70 % RH
- Max. altitude 2000 m / 6562 ft
- ELECTRICAL
- Power supply: 120 VAC, 50/60Hz
- Power consumption: < 1.4 W
- OUTPUT CIRCUITS RATINGS
- Max switching voltage AC: 120 V
- Max switching voltage DC: N/A
- Max switching current AC: 8 A (per channel), 16 A (total)
- Max switching current DC: N/A
- SENSORS, METERS
- Internal-temperature sensor: Yes
- Voltmeter (AC) Yes
- Ammeter (AC) Yes
- RADIO
- RF band: 2400 - 2495 MHz
- Max. RF power: <20 dBm
- Wi-Fi protocol: 802.11 b/g/n
- Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
- DEPENDS ON LOCAL CONDITIONS
- Bluetooth Protocol: 4.02.2024 ?.
- Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on Local Conditions)
- MCU
- CPU: ESP32
- Flash: 4 MB
- Firmware capabilities
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
- CoAP: No
- SPECIAL FUNCTIONS
- Dry contacts No
- Cover (roller) control Yes, with position control- roller shutters, blinds, awnings, curtains, gates, shades, sliding door, garage door, bi directional AC motors
- Overload protection Yes
- Power measurement Yes
- Overtemperature protection Yes
- Working without a neutral line No
- FEATURES
- HTTP/HTTPS webhooks Yes
- Custom scripts (mJs) Yes
- Operational temperature -20°C to + 40 °C
- Device power consumption < 1.4 W
- Local and remote control Yes
- Sunrise/Sunset Yes
- Weekly Schedule Yes
- cUL Listed Yes
- CONNECTIVITY
- Wireless 802.11 b/g/n
- Wi-Fi Radio frequency 2400 – 2500 MHz
- Wi-Fi Radio signal power 1mW
- Wi-Fi Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
- DIMENSIONS
- Size : 37x42x16 mm / 1.46x1.65x0.63 in
