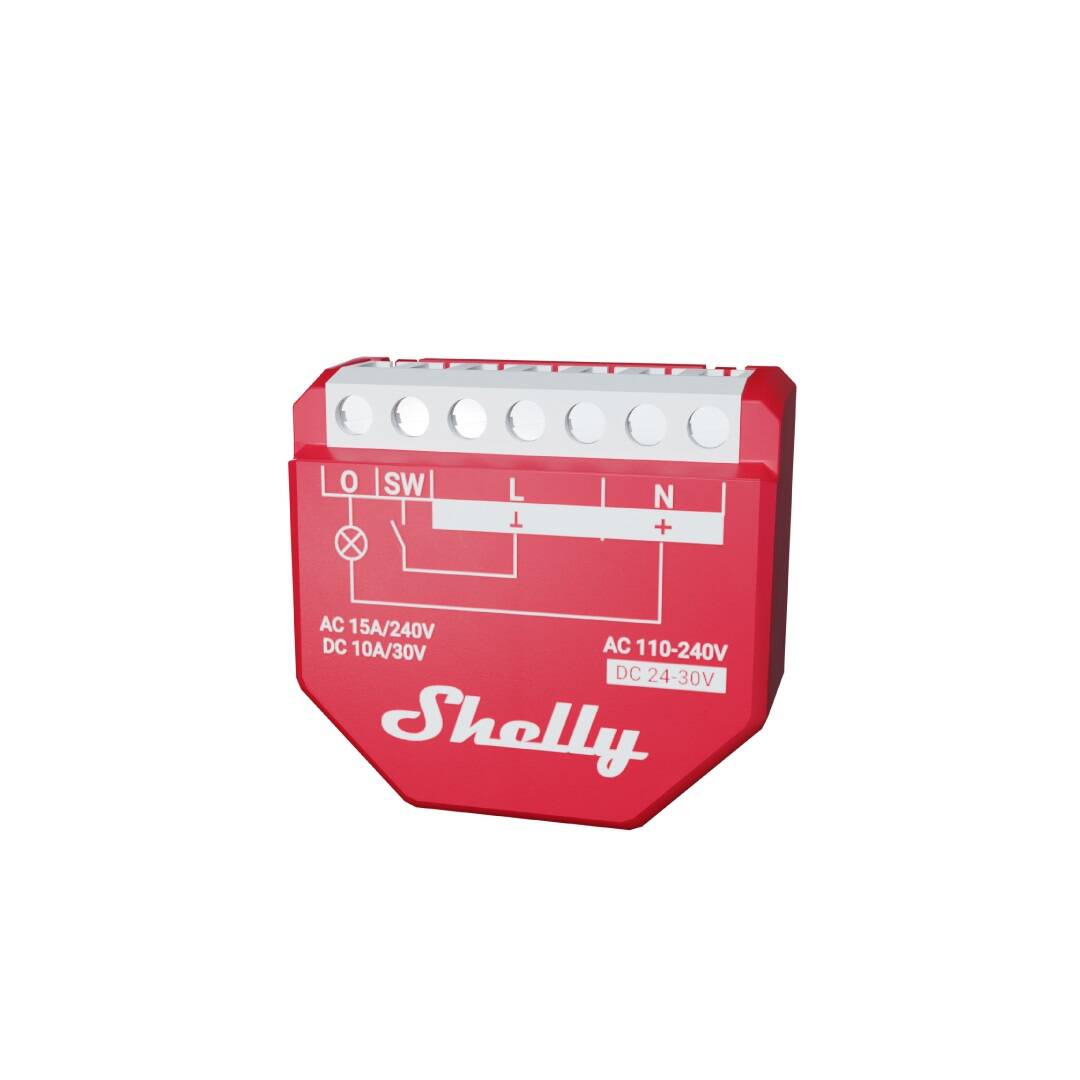

The Shelly Wave 1 UL Long Range in-line Z-Wave device wires in behind most standard-sized wallboxes and transforms ordinary lights and appliances into Z-Wave Long-Range capable smart devices with up to a massive 1 mile of transmission distance.
Ideal for residential and commercial retrofitting, connects into a single device for remote on/off functionality, such as lightbulbs, IR heaters, electric locks and strikes, garage doors, irrigation systems and more. Supports switching of appliances up to 15A @ 110-240VAC or 10A @24-48/12VDC. Historic and live power metering information keeps users up-to-date for connected appliances and can help save power by automatically turning appliances on/off based on usage information, consumption patterns, schedules, etc.
Selectable Z-Wave LR or Mesh networking supports a variety of installs—for smaller installs, Mesh networking increases the reliability of nearby or future Z-Wave sensors and devices; while Z-Wave LR transmission is optimized for large spaces like universities, hospitals, warehousing, and much more.
Supported by most major home hub systems, including Home Assistant, Fibaro, Homey, Homee Cube Gen 5/7, SmartThings, Vera Ezlo, Cozify, Hubitat and more. For additional compatibility information, consult Shelly’s compatibility listings.
For indoor use only. Consult wiring guide for device connection information. For inductive appliances that cause voltage spikes during switching on/off, such as electrical motors, fans, vacuum cleaners and similar ones, RC snubber (0.1 µF / 100 Ohms / 1/2 W / 600 VAC) should be connected parallel to the appliance.
SHELLY-WAVE-1PMLR-UL Specs and Features
- Power supply: 110-240 V AC / 24-48 V DC /12 V DC ± 10%
- Power consumption: < 0.3 W
- Max. switching voltage AC: 240 V
- Max. switching current AC: 15 A
- Max. switching voltage DC: 30 V
- Max. switching current DC: 10 A
- Overheating protection: Yes
- Distance Up to 40 m indoors: (131 ft.) (depends on local condition)
- Z-Wave® repeater: Yes
- CPU: Z-Wave® S800
- Z-Wave® frequency bands: 908.4 MHz
- Maximum radio frequency power transmitted infrequency band(s): < 25 mW
- Size (H x W x D): 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
- Weight: 26 g / 0.92 oz.
- Purpose of control: Operating
- Mounting: Flush mounting
- Construction of control: Independently mounted
- Screw terminals max. torque: 0.25 Nm / 2.2 lbin
- Conductor cross section: 1.0 to 2.5 mm² / 16 to14 AWG
- Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
- Shell material: Plastic
- Color: Red
- Type of Action: Type 1.B
- Overvoltage category: III
- Pollution degree: 2
- Impulse voltage: 4000 V
- Power Metering: Yes, KWh
- Ambient temperature: -20°C to 40°C / -5°F to 105°F
- Humidity: 30% to 70% RH
- Max. altitude: 2000 m / 6562 ft
Spécifications techniques
The Shelly Wave 1 UL Long Range in-line Z-Wave device wires in behind most standard-sized wallboxes and transforms ordinary lights and appliances into Z-Wave Long-Range capable smart devices with up to a massive 1 mile of transmission distance.
Ideal for residential and commercial retrofitting, connects into a single device for remote on/off functionality, such as lightbulbs, IR heaters, electric locks and strikes, garage doors, irrigation systems and more. Supports switching of appliances up to 15A @ 110-240VAC or 10A @24-48/12VDC. Historic and live power metering information keeps users up-to-date for connected appliances and can help save power by automatically turning appliances on/off based on usage information, consumption patterns, schedules, etc.
Selectable Z-Wave LR or Mesh networking supports a variety of installs—for smaller installs, Mesh networking increases the reliability of nearby or future Z-Wave sensors and devices; while Z-Wave LR transmission is optimized for large spaces like universities, hospitals, warehousing, and much more.
Supported by most major home hub systems, including Home Assistant, Fibaro, Homey, Homee Cube Gen 5/7, SmartThings, Vera Ezlo, Cozify, Hubitat and more. For additional compatibility information, consult Shelly’s compatibility listings.
For indoor use only. Consult wiring guide for device connection information. For inductive appliances that cause voltage spikes during switching on/off, such as electrical motors, fans, vacuum cleaners and similar ones, RC snubber (0.1 µF / 100 Ohms / 1/2 W / 600 VAC) should be connected parallel to the appliance.
SHELLY-WAVE-1PMLR-UL Specs and Features
- Power supply: 110-240 V AC / 24-48 V DC /12 V DC ± 10%
- Power consumption: < 0.3 W
- Max. switching voltage AC: 240 V
- Max. switching current AC: 15 A
- Max. switching voltage DC: 30 V
- Max. switching current DC: 10 A
- Overheating protection: Yes
- Distance Up to 40 m indoors: (131 ft.) (depends on local condition)
- Z-Wave® repeater: Yes
- CPU: Z-Wave® S800
- Z-Wave® frequency bands: 908.4 MHz
- Maximum radio frequency power transmitted infrequency band(s): < 25 mW
- Size (H x W x D): 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
- Weight: 26 g / 0.92 oz.
- Purpose of control: Operating
- Mounting: Flush mounting
- Construction of control: Independently mounted
- Screw terminals max. torque: 0.25 Nm / 2.2 lbin
- Conductor cross section: 1.0 to 2.5 mm² / 16 to14 AWG
- Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
- Shell material: Plastic
- Color: Red
- Type of Action: Type 1.B
- Overvoltage category: III
- Pollution degree: 2
- Impulse voltage: 4000 V
- Power Metering: Yes, KWh
- Ambient temperature: -20°C to 40°C / -5°F to 105°F
- Humidity: 30% to 70% RH
- Max. altitude: 2000 m / 6562 ft
