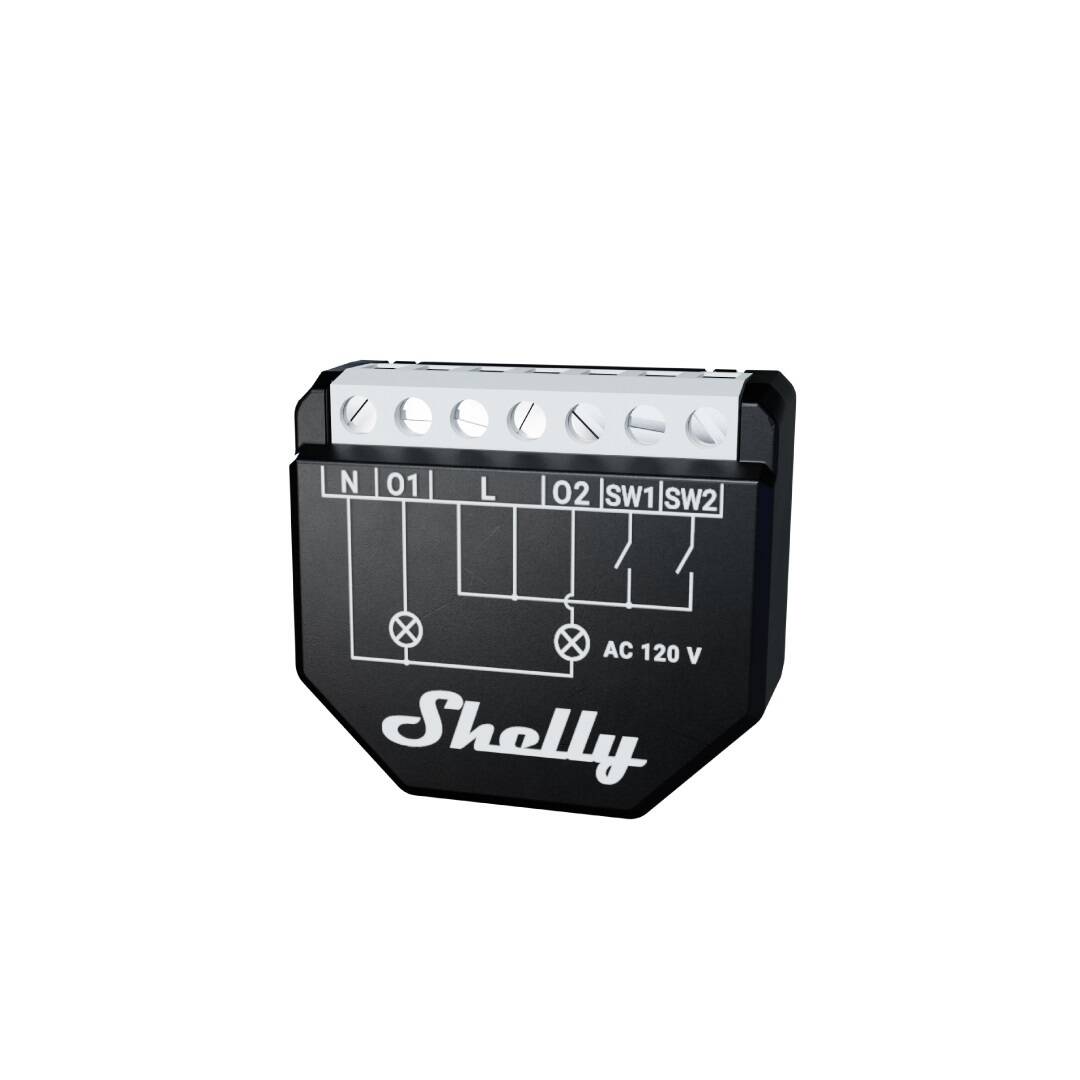

The Shelly Wave 2 UL Long Range in-line Z-Wave device with Power Metering wires in behind most standard-sized wallboxes and transforms ordinary lights and appliances, including resistive (incandescent bulbs, heating devices), capacitive (capacitor banks, electronic equipment, motor start capacitors) and inductive loads (RC Snubber required), into Z-Wave Long-Range capable smart devices with up to a massive 1 mile of transmission distance.
Supports switching of two separate 120V appliances. Historic and live power metering information keeps users up-to-date for connected appliances and can help save power by automatically turning appliances on/off based on usage information, consumption patterns, schedules, etc.
Selectable Z-Wave LR or Mesh networking supports a variety of installs—for smaller installs, Mesh networking increases the reliability of nearby or future Z-Wave sensors and devices; while Z-Wave LR transmission is optimized for large spaces like universities, hospitals, warehousing, and much more.
Supported by most major home hub systems, including Home Assistant, Fibaro, Homey, Homee Cube Gen 5/7, SmartThings, Vera Ezlo, Cozify, and more. For additional compatibility information, consult Shelly’s compatibility listings.
For indoor use only. Consult wiring guide for device connection information. For inductive appliances that cause voltage spikes during switching on/off, such as electrical motors, fans, vacuum cleaners and similar ones, RC snubber (0.1 µF / 100 Ohms / 1/2 W / 600 VAC) should be connected parallel to the appliance.
SHELLY-WAVE-2PMLR-UL Specs and Features
- Power supply: 120 V AC, 50/60 Hz
- Power consumption: < 0,3 W
- Power measurement (W): Yes
- Max. switching voltage AC: 120 V
- Max. switching current AC: 7 A per channel, 14 A total
- Max. power per channel: 1/3 hp
- Overheating protection: Yes
- Overcurrent protection: Yes
- Wireless protocol: Z-Wave
- CPU: S800 Z-Wave®
- Mesh distance: Up to 40 m indoors (131 ft.) (depends on local condition)
- Z-Wave® Mesh frequency band: 908.4 MHz
- Z-Wave® Long range distance: Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)
- Z-Wave® Long range frequency band: 912 MHz
- Z-Wave® repeater: No (Long Range), Yes (Mesh)
- Size (H x W x D): 37 x 42 x 16 ± 0.5 mm / 1.46 x 1.65 x 0.63 ± 0.02 in
- Weight: 29 g / 1.02 in
- Purpose of control: Operating
- Mounting: Flush mounting
- Construction of control: Independently mounted
- Screw terminals max. torque: 0.25 Nm / 2.2 lbin
- Conductor cross section: 1.0 to 2.5 mm² / 16 to 14 AWG
- Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
- Shell material: Plastic
- Color: Black
- Type of action: Type 1.B
- Overvoltage: category III
- Pollution: degree 2
- Impulse voltage: 2500 V
- Ambient temperature: -20°C to 40°C / -5°F to 105°F
- Humidity: 30% to 70% RH
- Max. altitude: 2000 m / 6562 ft
