À propos du produit
Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
- Maintains 120V output with 120V or 230V input, Sine wave output
- USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
- 95% line-mode efficiency, 2 switched load banks
- C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
Spécifications techniques
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 30 Minute |
| Backup/Run Time (Full Load) | 12 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Physical Characteristics | |
| Weight (Approximate) | 104.25 lb (47287 g) |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 5.25" (133.35 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25.25" (641.35 mm) |
| Power Description | |
| Input Voltage | 110 V AC |
| 220 V AC | |
| Output Voltage | 120 V AC |
| Input Current | 16 A |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Technical Information | |
| Emergency Power OFF | Yes |
| Receptacle Type | NEMA 5-15/20R |
| NEMA 5-15R | |
| Transfer Time | 4 ms |
| Receptacle Detail | 4 x NEMA 5-15/20R |
| 4 x NEMA 5-15R | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SM2200RMDVTAA |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SM2200RMDVTAA |
| Product Name | SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Additional Information | Input Receptacle: C20 |

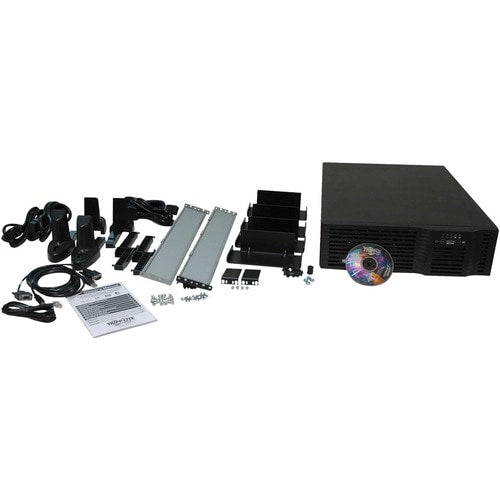

| Package Contents |
|
| Software Included | PowerAlert Software |
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
