Protects Mission-Critical Rack-Mounted Equipment
- Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware

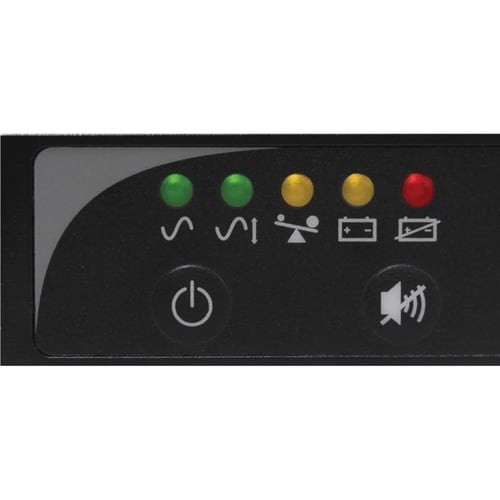

- Audible alarm signals loss of utility power, overload and low battery
- 6 NEMA 5-15R outlets
- 10 t. (3.1 m) power cord with 120V NEMA 5-15P input
- 450-joule surge suppression rating
- Supports half load up to 14 min. and full load up to 4 min.
- Internal batteries designed for hot-swap field replacement
- 2 load banks, each with one outlet individually controllable via software interface to reboot equipment or shed nonessential loads
- Maintains 120V nominal output over input range of 83V-147V without using battery power
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
- 99% line mode efficiency saves money, energy and protects the environment
- Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
- USB and DB9 ports combine with PowerAlert software (available via free download from www.tripplite.com/poweralert) to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure
- EPO port supports emergency shutdown in large facilities
- Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
- Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
- Compatible with vertical mount cabinets
- Corrects under- and overvoltages from 83V to 147V
- 6 NEMA 5-15R outlets-2 switchable via network interface
- Network power management and control capability
- 14 min. runtime at half load; 4 min. at full load
Spécifications techniques
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 31.99 lb (14510 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.40 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 16.75" (425.40 mm) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 115 V AC | |
| 110 V AC | |
| Waveform Type | Pure Sinusoidal |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 800 W |
| Technical Information | |
| Application/Usage | Computer |
| Data Center | |
| VoIP Phone System | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 5 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART1000RM1U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SMART1000RM1U |
| Product Name | SmartPro SMART1000RM1U 1000VA Rack-mountable UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
