À propos du produit

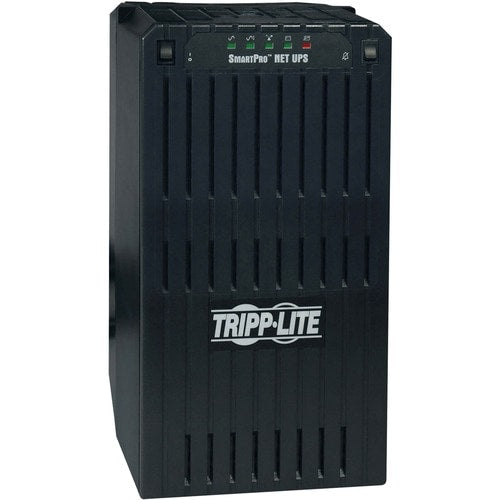

Tripp Lite's SMART 2200NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 2200VA/1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 6 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. PowerAlert UPS monitoring and unattended shutdown software is available via free download. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.
- 2.2kVA / 2200VA line interactive, extended-run tower UPS
- 120V output, Corrects brownouts and overvoltages from 87V to 140V
- 3 DB9 communication ports (1 RS232 / 2 contact-closure)
- Front panel status LEDs with load and battery capacity display
- 2 independently switchable output load banks
- NEMA 5-15P input, 6 NEMA 5-15R outlets
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Interfaces/Ports | |
| Total Number of Expansion Slots | 3 |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | On Battery |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 27 Minute |
| Backup/Run Time (Full Load) | 11 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 720 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.70 kW |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART2200NET |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | SmartPro 2200VA UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerAlert Software |
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Recycled | No |
| Assembly Required | No |
| Physical Characteristics | |
| Weight (Approximate) | 80 lb (36287.39 g) |
| Form Factor | Tower |
| Height | 17" (431.80 mm) |
| Width | 9" (228.60 mm) |
| Depth | 12.50" (317.50 mm) |
| Product Color | Gray |
| Color Family | Gray |
