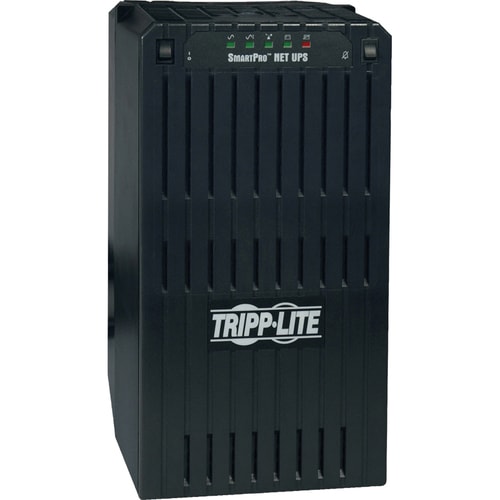

Tripp Lite's SMART3000NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 23 minutes half load runtime and 7 minutes fully loaded. Runtime is expandable with optional BP24V33 external battery packs. 3000VA / 2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 8 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Supports SNMP with optional external SNMPWEBSOLO adapter. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive large gray tower housing. Two year warranty with $250,000 connected equipment insurance.
- 3kVA / 3000VA / 2400W line interactive, extended-run tower UPS
- 120V output, Corrects brownouts and overvoltages from 87V to 140V
- 3 DB9 ports (1 RS232 / 2 contact-closure)
- Front panel status LEDs with load and battery capacity display
- 2 independently switchable output load banks
- NEMA L5-30P input; 4 NEMA 5-15/20R & 4 NEMA 5-15R outlets
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | On Battery |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.40 kW |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 23 Minute |
| Backup/Run Time (Full Load) | 7 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Physical Characteristics | |
| Weight (Approximate) | 80 lb (36287.39 g) |
| Form Factor | Tower |
| Height | 17" (431.80 mm) |
| Width | 9" (228.60 mm) |
| Depth | 13" (330.20 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART3000NET |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | SmartPro 3000NET UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-20R |
| NEMA 5-15R | |
| Transfer Time | 4 ms |
| Receptacle Detail | 4 x NEMA 5-20R |
| 4 x NEMA 5-15R |
