À propos du produit

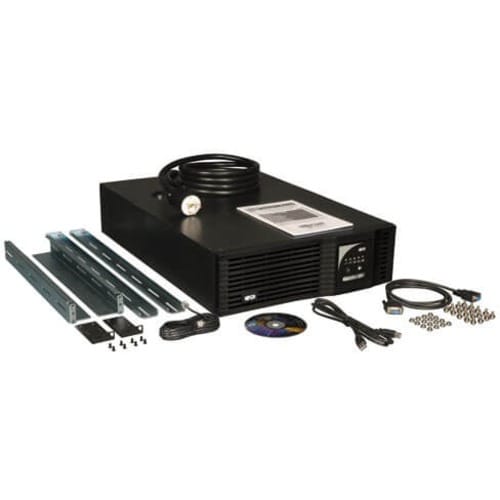

Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).
- 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
- 208V nominal output during inputs of 174-282V; Supports 600VA 120V output
- USB, Serial, EPO & optional SNMP/Web card monitoring options
- 97% line-mode efficiency; Hot-swappable internal batteries
- NEMA L6-30P input; 2 NEMA 5-15R, 2 L6-20R & 1 L6-30R outlets
Spécifications techniques
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| USB | Yes |
| Modem (RJ-11) | Yes |
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 24 Minute |
| Backup/Run Time (Full Load) | 10 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerAlert Software |
| Certifications & Standards | UL1778 (USA), CSA (Canada), FCC Class A (Emissions) |
| Country of Origin | Taiwan |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Input Current | 24 A |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 3.75 kW |
| Physical Characteristics | |
| Weight (Approximate) | 143.30 lb (64999.79 g) |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 5.25" (133.35 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25" (635 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART5000TEL3U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SMART5000TEL3U |
| Product Name | SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30R |
| NEMA L6-20R | |
| NEMA 5-15R | |
| Transfer Time | 8 ms |
| Receptacle Detail | 2 x NEMA 5-15R |
| 2 x NEMA L6-20R | |
| 1 x NEMA L6-30R |
