Over 20 million units sold - the UPS you can trust

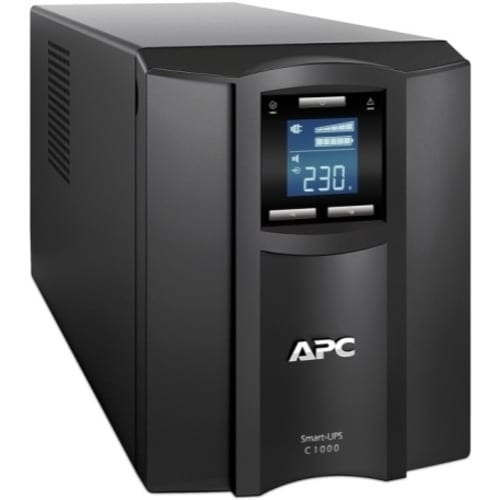

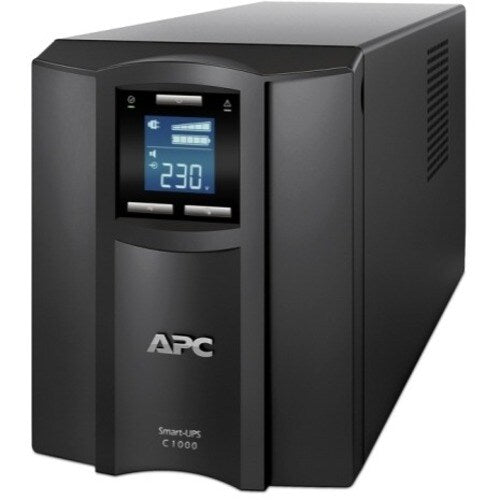

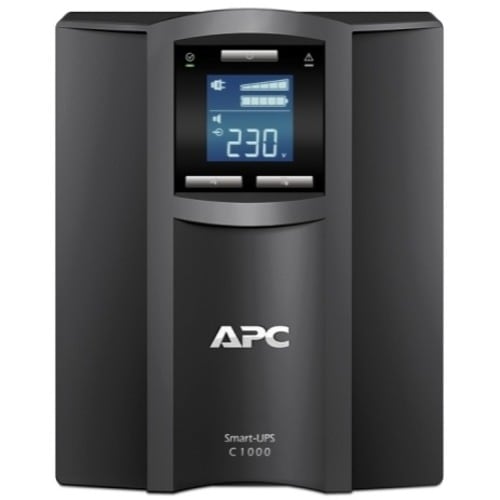

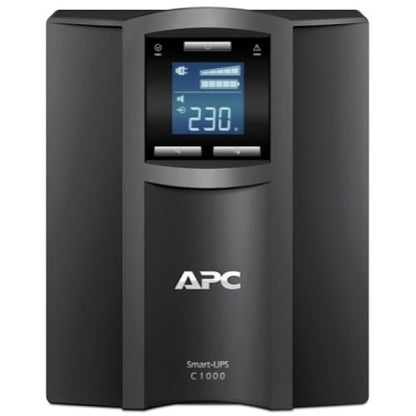

APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
- 1 kVA load capacity - work without any interruption during power outages
- 600 W load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 600 W load capacity
- Keep your sensitive devices powered with a backup of up to 6.10 minute at full load
- Up to 6.10 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Multifunction LCD status and control console |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | On Battery |
| Low Battery | |
| Configurable Delay | |
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Thermal Dissipation | 100 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 41 dB(A) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 16.18 Minute |
| Backup/Run Time (Full Load) | 6.10 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Technical Information | |

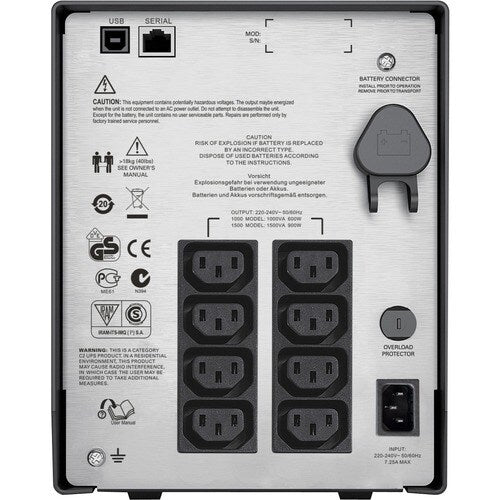

| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| IEC Jumper | |
| Number of Battery & Surge Outlets | 10 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 2 x IEC Jumper | |
| Physical Characteristics | |
| Weight (Approximate) | 38.07 lb (17270 g) |
| Form Factor | Tower |
| Height | 8.62" (219 mm) |
| Width | 6.73" (171 mm) |
| Depth | 17.28" (439 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMC1000I |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS C 1000VA LCD 230V |
| Product Line | Smart-UPS |
| Product Series | SMC |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 455 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 170 V AC - 300 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
