À propos du produit

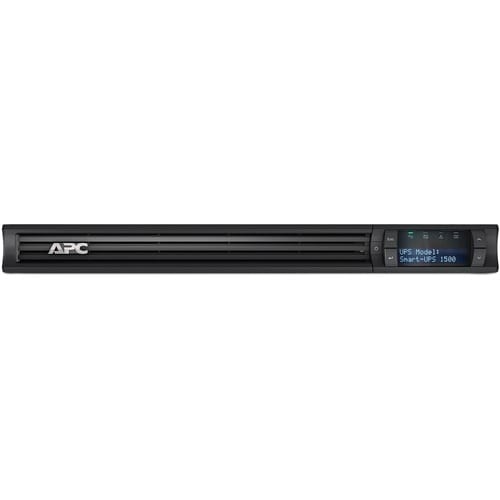

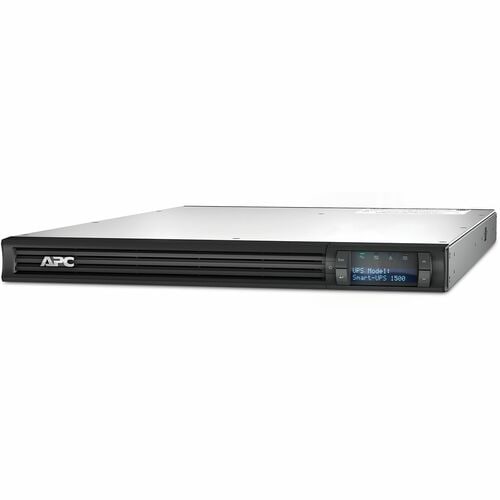

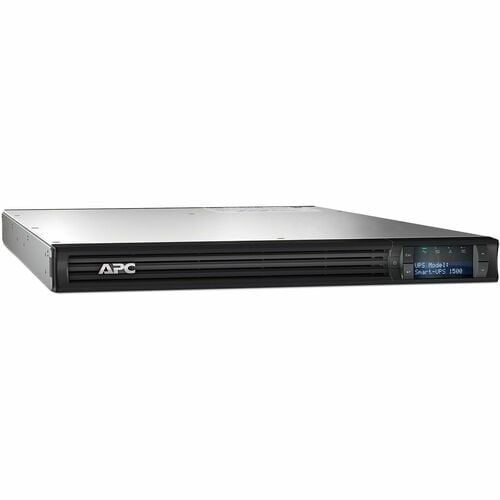

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with 4 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional NMC purchase that enables network-based UPS monitoring & management via PowerChute Network Shutdown and the ability to connect to EcoStruxure IT or third-party management platform. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
- Works adequately in situations where the supply is prone to sags and surges
- Experience higher efficiency with lower energy cost
- 1.44 kVA load capacity - work without any interruption during power outages
- 1 kW load capacity - backup power for your valuable electronics
- Keep your sensitive devices powered with a backup of up to 4.75 minute at full load
- Up to 4.75 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Console d'état et de contrôle LCD multifonction |
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | SmartConnect |
| Alarm | Configurable Delay |
| Low Battery | |
| On Battery | |
| Environmental Conditions | |
| Sound Emission | 46 dB |
| Thermal Dissipation | 116 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Battery Size | 36V |
| Battery Capacity | 54000 mAh |
| Battery Energy | 1054.8 kJ |
| Backup/Run Time (Half Load) | 16.57 Minute |
| Backup/Run Time (Full Load) | 4.75 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 4 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMT1500RM1UC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SMT 1500VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Product Series | SMT |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 54.01 lb (24498.52 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.18" (665 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Current | 12 A |
| Surge Energy Rating | 645 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 85 V AC - 155 V AC |
| 93.5 V AC - 143 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Power Factor | 0.7 |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Powerchute Serial Edition |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|CSA|UL 1778 5th edition|FCC part 15 class A|cUL |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RM1UC_ROHS_DECLARATION&p_FileName=SMT1500RM1UCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555108618&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555108618&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Technical Information | |
| Application/Usage | Hub |
| Healthcare | |
| Network Closet | |
| Network Device | |
| POS | |
| Retail | |
| Router | |
| Server | |
| Storage | |
| Switch | |
| VoIP | |
| IT | |
| Electronic | |
| Education | |
| Edge Computing | |
| Critical System | |
| Business | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15P |
| AVR | Yes |
| Transfer Time | 4 ms |

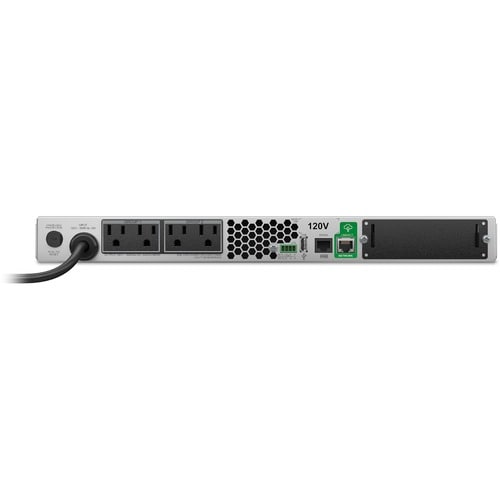

| Receptacle Detail | 4 x NEMA 5-15R |
