À propos du produit

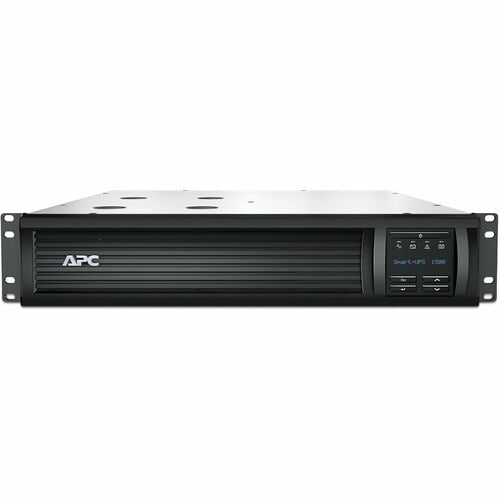

The APC Smart-UPS is a rackmount shipboard UPS with a power rating of 1440VA and an output power capacity of 1000 watts. It operates at a nominal voltage of 120V and includes 6 NEMA 5-15R outlets.
- 1.44 kVA load capacity - work without any interruption during power outages
- 1 kW load capacity - backup power for your valuable electronics
- 1.44 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 7 minute at full load
- Up to 7 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Display:
|
| Management | |
| Alarm | Changing Utility Power |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 255 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Battery Energy | 1555.2 kJ |
| Backup/Run Time (Half Load) | 26 Minute |
| Backup/Run Time (Full Load) | 7 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| AVR | Yes |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 10 ms |

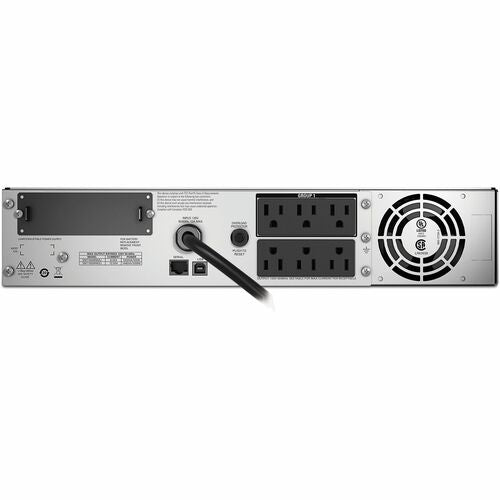

| Receptacle Detail | 6 x NEMA 5-15R |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMT1500RMX93 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 1.5kVA 120V RM SHIPBOARD |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 58.42 lb (26498.87 g) |
| Form Factor | Rack-mountable |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 18.78" (477 mm) |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 693 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1 kW |
| Miscellaneous | |
| Certifications & Standards | CSA C22.2 No 107.1 |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| TAA Compliant | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RMX93_ROHS_DECLARATION&p_FileName=SMT1500RMX93KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241382&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241382&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
