This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity. The 750VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.
- Works adequately in situations where the supply is prone to sags and surges
- Experience higher efficiency with lower energy cost
- Prevent critical data loss by staying powered during a blackout with up to 600 W load capacity
- 750 VA load capacity provides sufficient backup during power failures
- Up to 4.11 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Display & Graphics | |
| Display | LCD |
| Interfaces/Ports | |
| USB | No |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Management | |
| Alarm | Low Battery |
| On Battery | |
| Configurable Delay | |
| Environmental Conditions | |
| Thermal Dissipation | 88 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 46 dB(A) |
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Battery Energy | 604.8 kJ |
| Backup/Run Time (Half Load) | 14.93 Minute |
| Backup/Run Time (Full Load) | 4.11 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 5 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMT750RM1U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SMT 750VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Product Series | SMT |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Current | 6.25 A |
| Surge Energy Rating | 540 J |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Physical Characteristics | |
| Weight (Approximate) | 34.83 lb (15798.62 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |

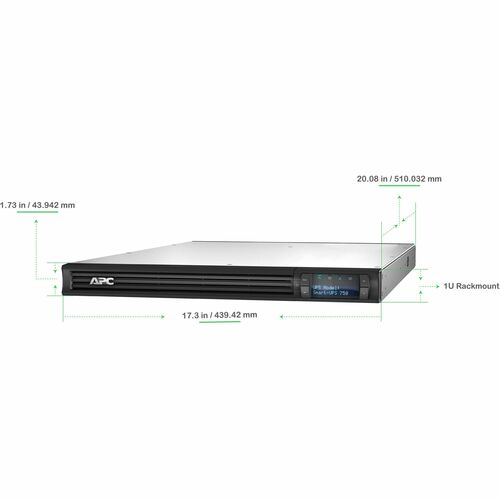

| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 19.76" (502 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Technical Information | |
| Application/Usage | Hyperconverged Infrastructure (HCI) |
| Virtual Machine | |
| Server | |
| Business | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15P |
| AVR | Yes |
| Transfer Time | 8 ms |

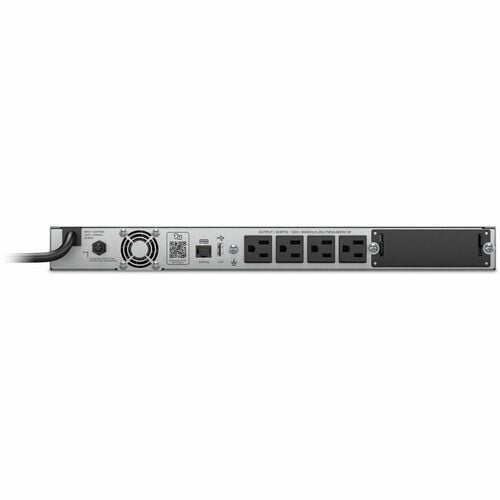

| Receptacle Detail | 4 x NEMA 5-15R |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | CSA |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750RM1U_ROHS_DECLARATION&p_FileName=SMT750RM1UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112028&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567112028&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
