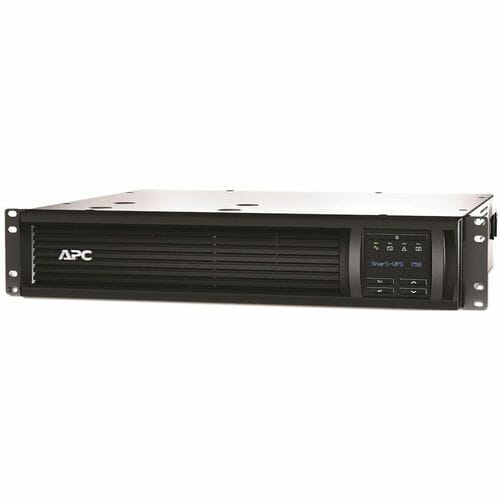

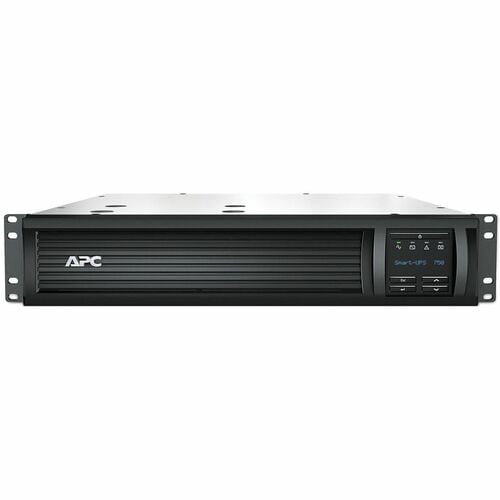

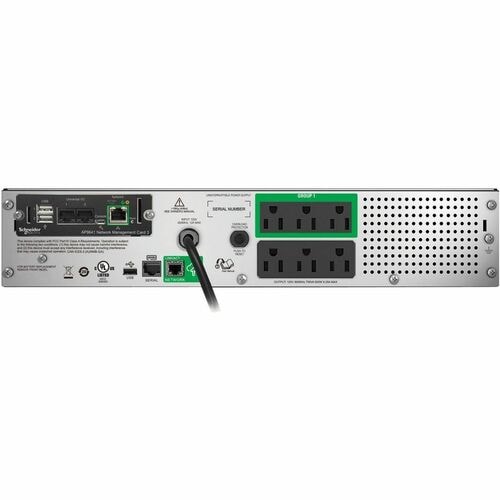

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
- 750VA/500W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
Spécifications techniques
| Display & Graphics | |
| Display | LCD |
| Interfaces/Ports | |
| USB | Yes |
| Warranty | |
| Additional Warranty Information | 3 Years |
| Management | |
| Network Management | SmartConnect |
| Alarm | Configurable Delay |
| On Battery | |
| Low Battery | |
| Environmental Conditions | |
| Thermal Dissipation | 70 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 41 dB(A) |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Battery Energy | 604.8 kJ |
| Backup/Run Time (Half Load) | 16.06 Minute |
| Backup/Run Time (Full Load) | 5.45 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMT750RM2UCNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 750VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 39.02 lb (17699.17 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 16.10" (409 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 680 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 75 V AC - 154 V AC |
| 82 V AC - 144 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
| Technical Information | |
| Application/Usage | Business |
| Virtual Machine | |
| Server | |
| Office | |
| Network | |
| IT | |
| Critical System | |
| Edge Computing | |
| Hyperconverged Infrastructure (HCI) | |
| Infrastructure | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15P |
| AVR | Yes |
| Transfer Time | 10 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | cULus|ENERGY STAR V2.0 (USA) |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750RM2UCNC_ROHS_DECLARATION&p_FileName=SMT750RM2UCNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168915&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168915&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
