À propos du produit
APC by Schneider Electric offers tailored solutions to meet the demanding requirements for marine, shipboard and other mobile applications. Designed and engineered to meet the unique demands of shipboard applications. With naval ready features shipboard UPSs provide clean, reliable, and battle-ready performance.
- Experience higher efficiency with lower energy cost
- 750 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 500 W load capacity
- 750 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 5 minute at full load
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Status:
|
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 15 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Thermal Dissipation | 90 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Sound Emission (A-Weighted) | 41 dB(A) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMT750X93 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

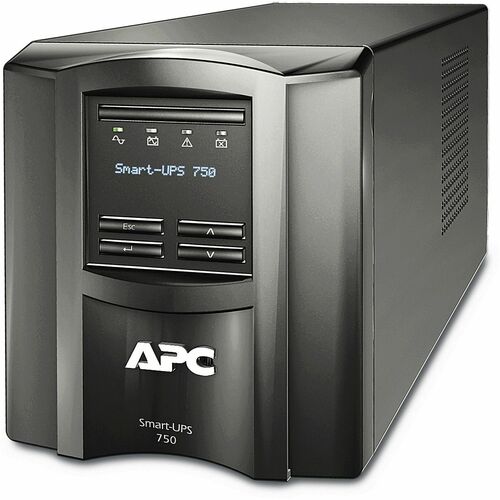

| Product Name | Smart-UPS 750VA Tower UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 27.56 lb (12501.01 g) |
| Form Factor | Tower |
| Height | 6.34" (161 mm) |
| Width | 5.43" (138 mm) |
| Depth | 14.53" (369 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 593 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
| Technical Information | |
| Application/Usage | Network Device |
| IT | |
| Communication System | |
| Business | |
| POS | |
| Storage | |
| Server | |
| Security System | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 10 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
| Miscellaneous | |
| Certifications & Standards | CSA C22.2 No 107.1 |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| TAA Compliant | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750X93_ROHS_DECLARATION&p_FileName=SMT750X93KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241380&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241380&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
