À propos du produit

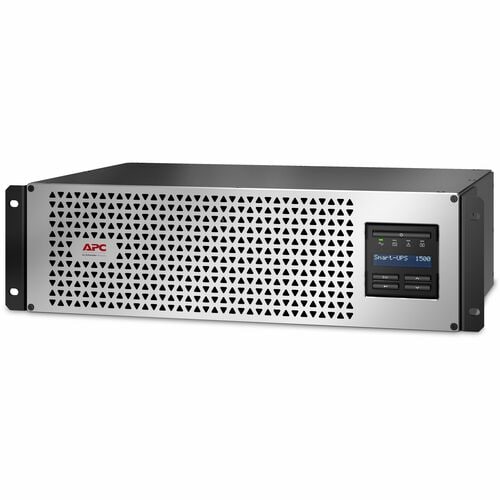

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- 1.44 kVA load capacity - work without any interruption during power outages
- 1.35 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 1.35 kW load capacity
- 1.44 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 3.03 minute at full load
- Up to 3.03 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Multifunction LCD Status and Control Console |
| Warranty | |
| Additional Warranty Information | 5 year repair or replace |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SmartConnect |
| Alarm | On Battery |
| Low Battery | |
| Configurable Delay | |
| Environmental Conditions | |
| Thermal Dissipation | 135 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 25000 ft (7620000 mm) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 864 kJ |
| Backup/Run Time (Half Load) | 8.87 Minute |
| Backup/Run Time (Full Load) | 3.03 Minute |
| DC System Voltage | 36 V DC |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMTL1500RM3UCNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 1500VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15P |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 6 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 680 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 75 V AC -154 V AC |
| 82 V AC - 144 V AC | |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Physical Characteristics | |
| Weight (Approximate) | 42.99 lb (19499.94 g) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.16" (131 mm) |
| Width | 17.24" (438 mm) |
| Depth | 11.89" (302 mm) |
| Product Color | Black |
| Silver | |
| Color Family | Dual Color |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | NOM |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL1500RM3UCNC_ROHS_DECLARATION&p_FileName=SMTL1500RM3UCNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301538&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301538&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN |
| REACH free of SVHC | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
