À propos du produit
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30 input, 6 NEMA 5-20R and 1 NEMA L5-30R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- 3kVA/2.7kW line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Preinstalled Network Management Card for network-based UPS monitoring & management
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD/LED |
| Warranty | |
| Additional Warranty Information | 5 year repair or replace |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Thermal Dissipation | 348 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Management | |
| Network Management | SmartConnect |
| USB | |
| Alarm | Low Battery |
| On Battery | |
| Overload | |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 1209.6 kJ |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 10.23 Minute |
| Backup/Run Time (Full Load) | 5.30 Minute |
| Typical Battery Recharge Time | 2 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMTL3KRM2UCLNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 3KVA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 75.44 lb (34219.01 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |

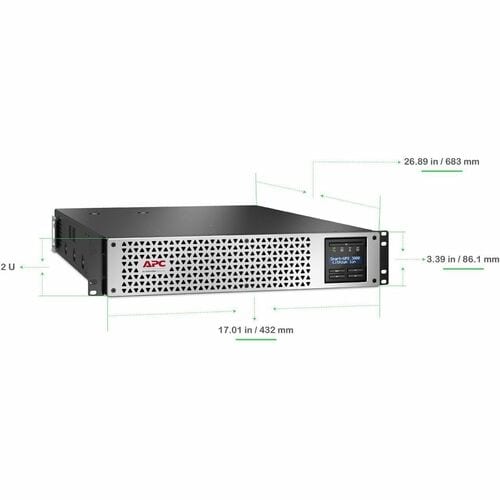

| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.89" (683 mm) |
| Product Color | Black |
| Silver | |
| Color Family | Dual Color |
| Mounting Preference | Lower |
| Power Description | |
| Input Voltage | 125 V |
| 120 V | |
| 110 V | |
| Output Voltage | 120 V AC |
| 110 V AC | |
| 125 V AC | |
| Surge Energy Rating | 459 J |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Power Factor | 0.9 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | ENERGY STAR V2.0 (USA)|cULus |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL3KRM2UCLNC_ROHS_DECLARATION&p_FileName=SMTL3KRM2UCLNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168926&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168926&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Application/Usage | Virtual Machine |
| Switch | |
| Server | |
| Router | |
| POS | |
| Office | |
| Network Equipment | |
| IT | |
| Hyperconverged Infrastructure (HCI) | |
| Hub | |
| Edge Computing | |
| Business | |
| Critical System | |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA L5-30P |
| AVR | Yes |
| Transfer Time | 10 ms |

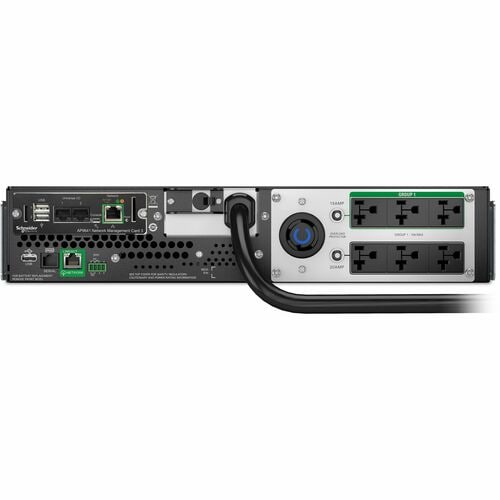

| Receptacle Detail | 6 x NEMA 5-20R |
| 1 x NEMA L5-30R |
