À propos du produit

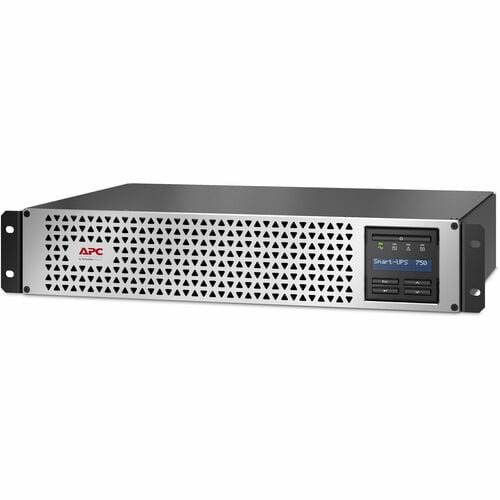

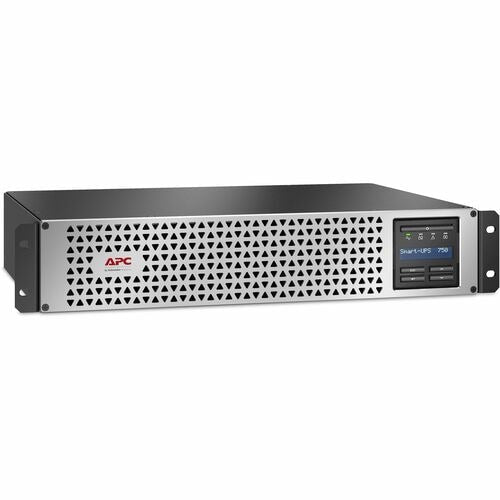

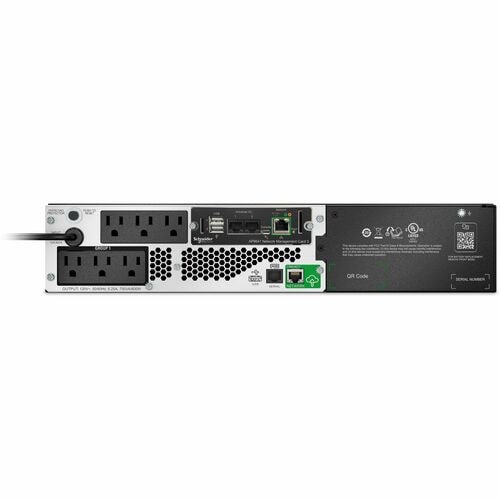

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Prevent critical data loss by staying powered during a blackout with up to 600 W load capacity
- 750 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 5.70 minute at full load
- Up to 5.70 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Écran LCD multifonction |
| Management | |
| Network Management | SmartConnect |
| Warranty | |
| Additional Warranty Information | 5 year repair or replace |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 25000 ft (7620000 mm) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Half Load) | 13.80 Minute |
| Backup/Run Time (Full Load) | 5.70 Minute |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMTL750RM2UCNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 750VA UPS |
| Product Series | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 680 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Physical Characteristics | |
| Weight (Approximate) | 33.95 lb (15399.46 g) |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| Rack Height | 2U |
| Height | 3.39" (86 mm) |
| Width | 17.24" (438 mm) |
| Depth | 12.52" (318 mm) |
| Product Color | Silver |
| Black | |
| Color Family | Dual Color |
| Mounting Preference | Lower |
| Miscellaneous | |
| Certifications & Standards | NOM |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL750RM2UCNC_ROHS_DECLARATION&p_FileName=SMTL750RM2UCNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112132&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567112132&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN |
| REACH free of SVHC | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Application/Usage | Network Equipment |
| Education | |
| Router | |
| Security | |
| Server | |
| Storage | |
| Switch | |
| Healthcare | |
| Hub | |
| IT | |
| Network | |
| Network Closet | |
| Network Device | |
| Office | |
| Edge Computing | |
| Data Center | |
| Business | |
| Bank | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15P |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Receptacle Detail | 6 x NEMA 5-15R |
