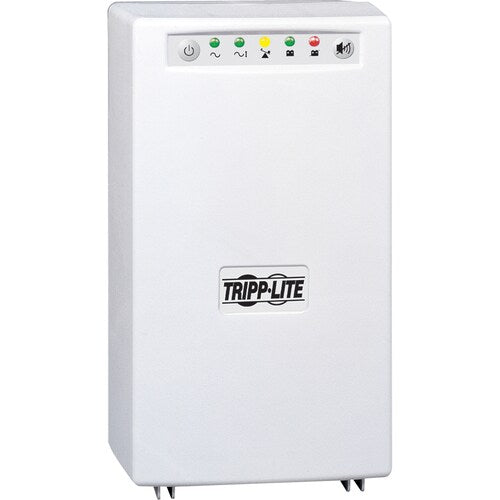

SMART UPS INT 1000VA 750W 230V AVR MEDICAL TOWER FULL ISO USB DB9

Tripp Lite's SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load, or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps. This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15 cm (6 in.) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules. The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
Application Usage

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty

Provides Ideal UPS Backup in Healthcare Facilities

• Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
• Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise

Battery Backup and Full Surge Protection

• 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
• All six hospital-grade outlets provide surge protection rated to 340 joules
• EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
• Resistant to electrostatic discharge

LEDs and Audible Alarms Keep You Aware of Power Status

• Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
• Audible alarms alert you to power failure, overload and low battery conditions; the alarm's mute/quiet mode ensures patients are not disturbed

Saves Your Files, Even When You're Away

• Works with Tripp Lite PowerAlert software (included) to enable safe, unattended system shutdown and files saves during prolonged power failures
• Connects to your computer via either the DB9 port or USB port

• Corrects under- and overvoltages from 155V to 274V
• 6 IEC-320 C13 outlets
• Front-panel LEDs indicate load, power, voltage and battery statuses
• Expandable runtime with optional external battery packs
• 27.5 min. runtime at half load; 11 min. at full load
