À propos du produit

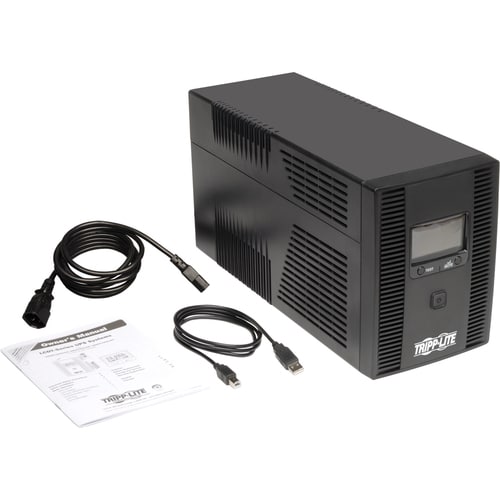

The SMX1500LCDT SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, media centers and home entertainment systems, the SMX1500LCDT switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCDT has an internal battery that provides 10 minutes of support at half load. It can also power an entry-level PC up to 90 minutes. Two of the eight outlets provide surge protection only for printers and other non-essential devices A front-panel LCD screen lets you configure settings and monitor operating data, such as voltage, battery and load statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 170V to 280V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 455-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's free downloadable PowerAlert software, SMX1500LCDT enables safe unattended system shutdown and file saves in case of a prolonged power failure.
- Corrects under- and overvoltages from 170V to 280V
- 8 C13 outlets-2 surge-only
- Interactive LCD monitoring screen
- Monitoring of power conditions via POWERALERT12
- 10 min. runtime at half load
Spécifications techniques
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Management | |
| Alarm | Power Failure |
| Low Battery | |
| Battery Information | |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 24.69 lb (11200 g) |
| Form Factor | Tower |
| Height | 8" (203.20 mm) |
| Width | 5.75" (146.05 mm) |
| Depth | 15.50" (393.70 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMX1500LCDT |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SMX1500LCDT |
| Product Name | Smart LCD 1500VA Tower Line-Interactive 230V UPS with LCD Display and USB Port |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Dataline Protection | RJ-11 |
| RJ-45 | |
| Protection Type | Surge |
| EMI / RFI | |
| Plug/Connector Type | IEC 60320 C14 |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V DC |
| Output Voltage | 230 V AC |
| Input Current | 9 A |
| Surge Energy Rating | 455 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Sine Wave | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 900 W |
