À propos du produit

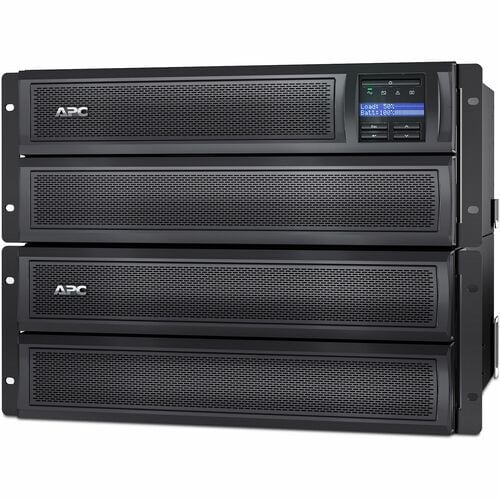

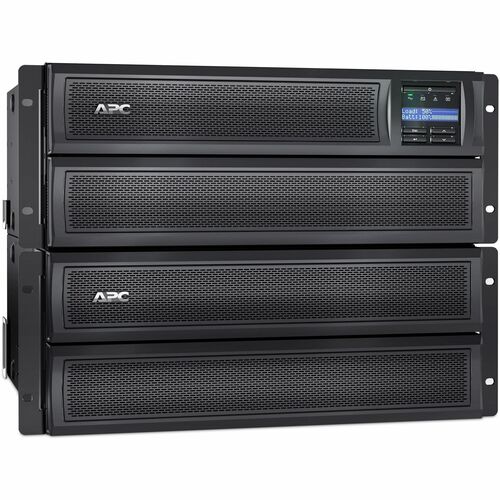

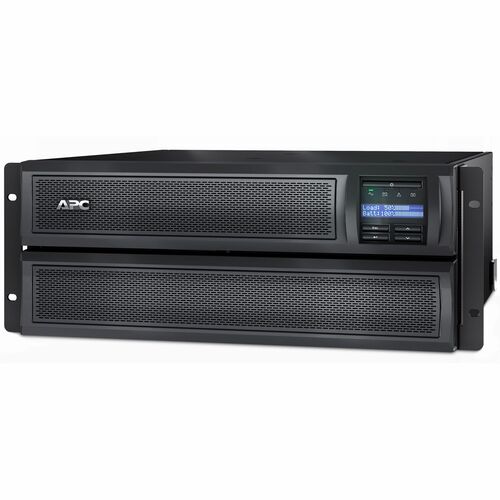

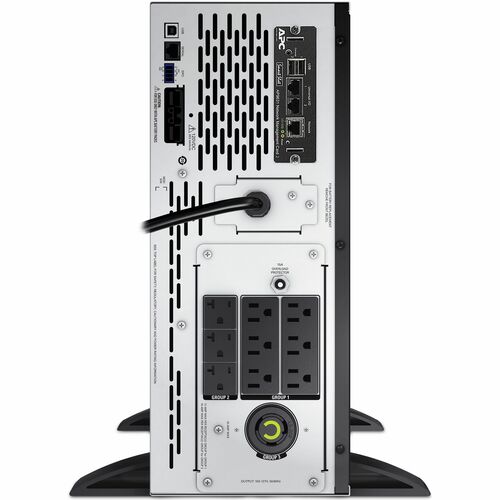

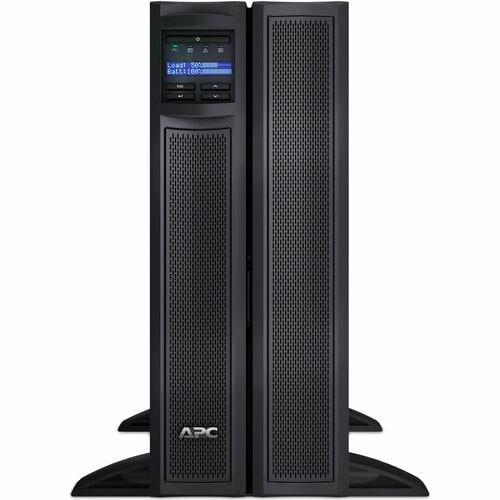

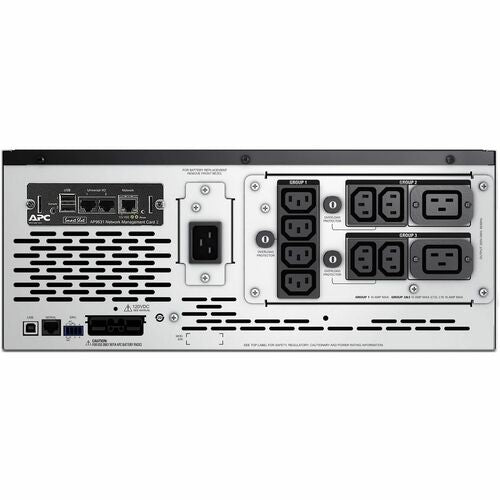

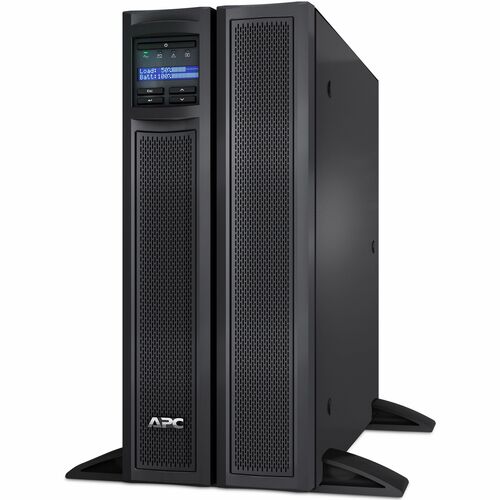

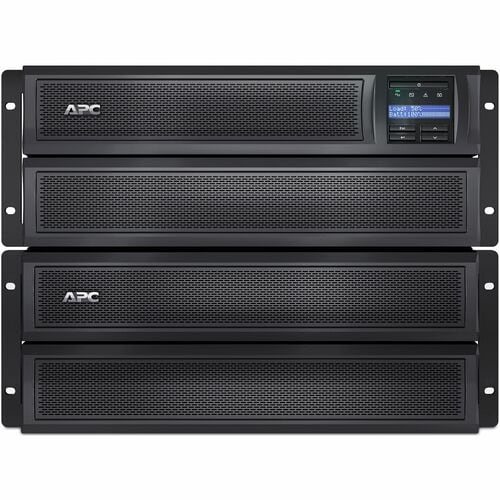

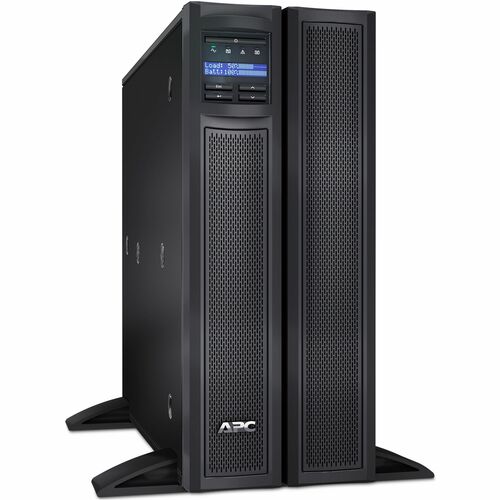

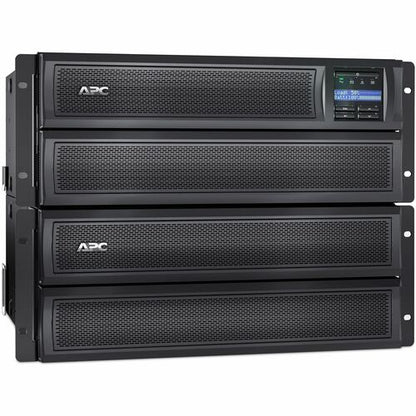

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- 3 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 2.70 kW load capacity
- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Interfaces/Ports | |
| Serial Port | Yes |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Low Battery |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 18 Minute |
| Backup/Run Time (Full Load) | 6 Minute |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Input Voltage | 208 V |
| 230 V | |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 645 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMX3000HVNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 3000VA Tower/Rack Mountable UPS |
| Product Line | Smart-UPS |
| Product Series | SMX |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 85.19 lb (38641.53 g) |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 17.01" (432 mm) |
| Width | 7.01" (178 mm) |
| Depth | 19.02" (483 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Technical Information | |
| Emergency Power OFF | Yes |
| Protection Type | Surge |
| AC Noise | |
| Plug/Connector Type | IEC 320-C20 |
| British BS1363A | |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | Schuko CEE 7/EU1-16P |
| Number of Battery & Surge Outlets | 12 |
| Receptacle Detail | 2 x IEC 320-C19 |
| 2 x IEC Jumper | |
| 8 x IEC 320-C13 | |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | C-tick|CE|CSA|EAC|GOST|IRAM|VDE|UK PSTI |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVNC_ROHS_DECLARATION&p_FileName=SMX3000HVNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166978&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166978&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
