À propos du produit

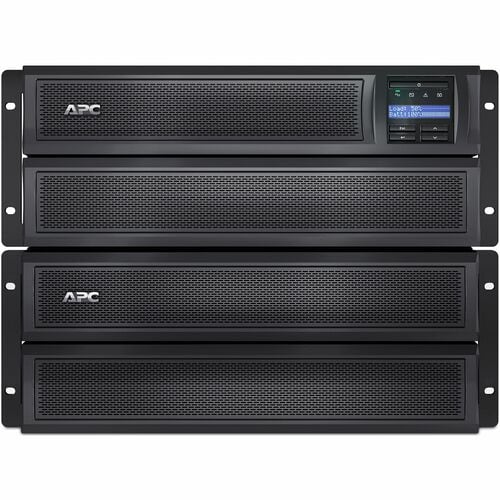

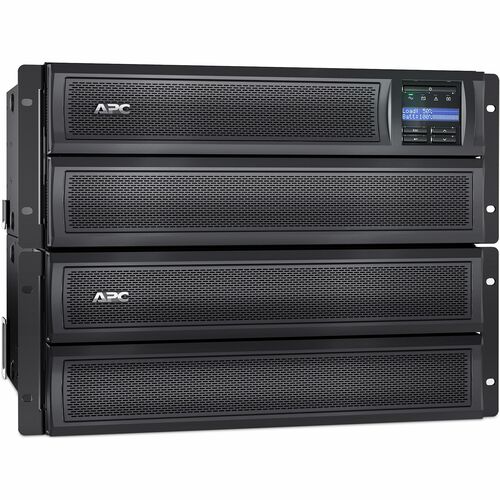

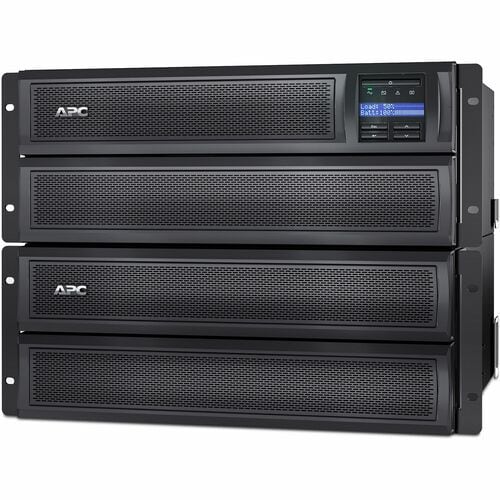

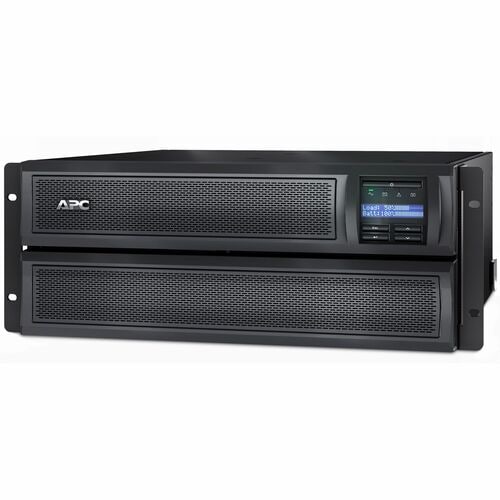

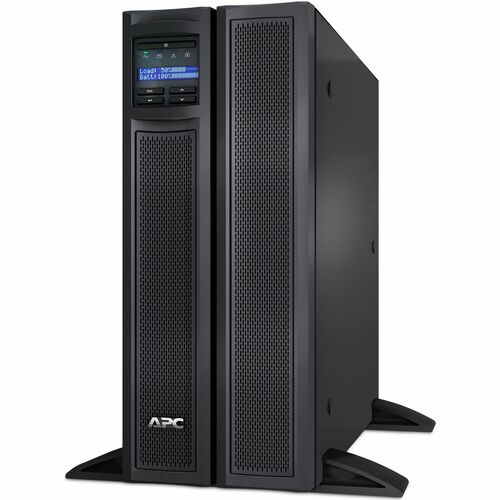

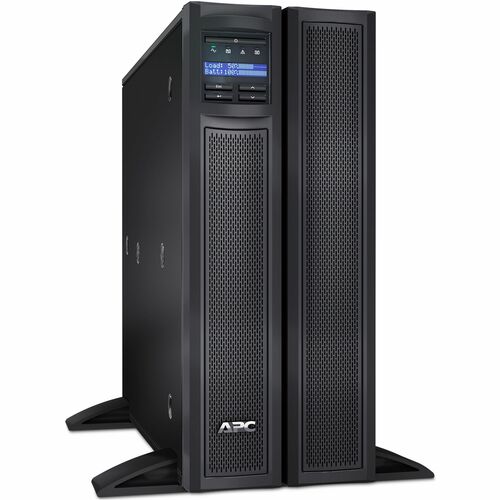

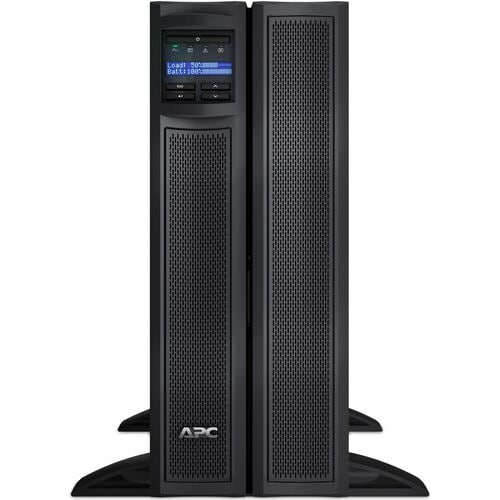

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- Experience higher efficiency with lower energy cost
- 3 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 2.70 kW load capacity
- Keep your sensitive devices powered with a backup of up to 6.30 minute at full load
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
| Environmental Conditions | |
| Thermal Dissipation | 184 BTU/h |
| Maximum Operating Temperature | 113°F (45°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Management | |
| Alarm | On Battery |
| Configurable Delay | |
| Low Battery | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 15.70 Minute |
| Backup/Run Time (Full Load) | 6.30 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Surge Energy Rating | 645 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMX3000HVT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V |
| Product Line | Smart-UPS |
| Product Series | X |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 85.19 lb (38641.53 g) |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 17.01" (432 mm) |
| Width | 7.01" (178 mm) |
| Depth | 19.02" (483 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Technical Information | |
| Emergency Power OFF | Yes |
| Protection Type | Surge |
| Plug/Connector Type | NEMA L6-20P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA L6-20P |

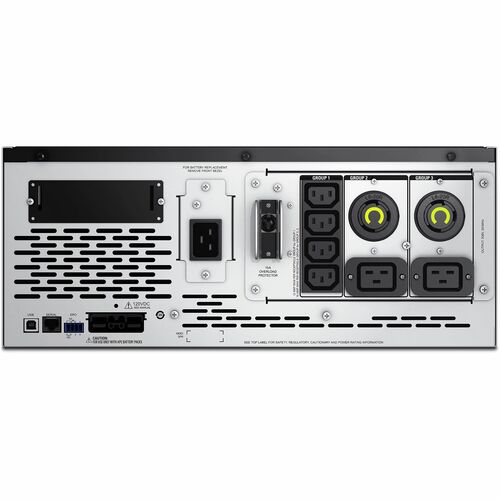

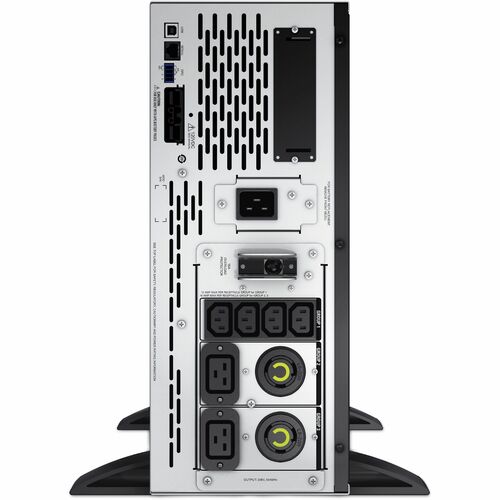

| Number of Battery & Surge Outlets | 11 |
| Receptacle Detail | 2 x NEMA L6-20R |
| 4 x IEC 320-C13 | |
| 3 x IEC Jumper | |
| 2 x IEC 320-C19 | |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute Serial Edition |
| Certifications & Standards | C-tick|CE|CSA|GOST|IRAM|VDE |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVT_ROHS_DECLARATION&p_FileName=SMX3000HVTKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166980&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166980&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
