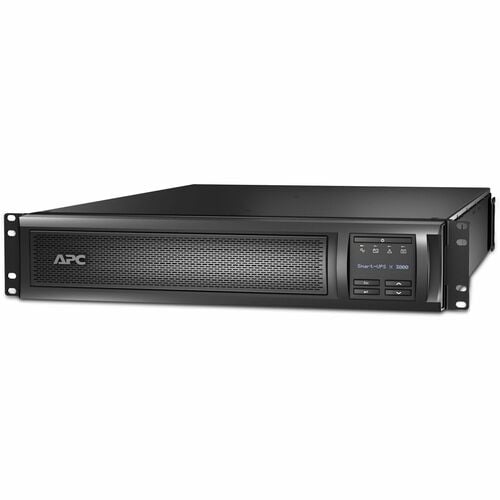

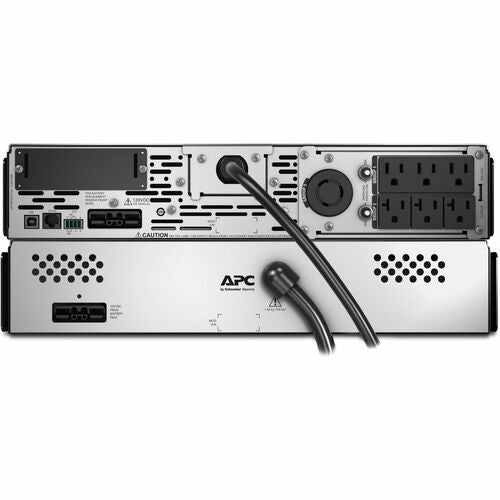

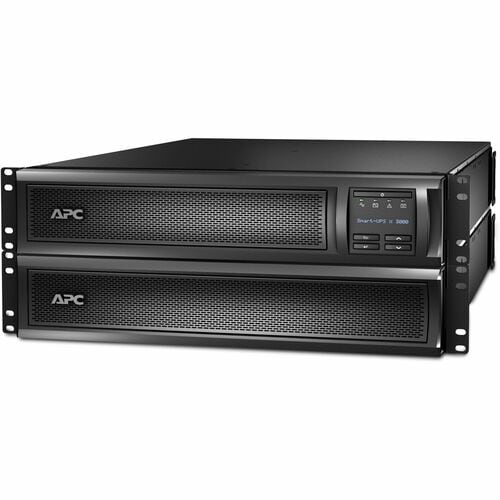

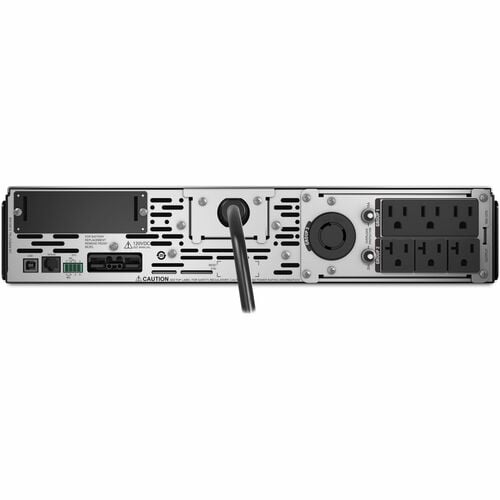

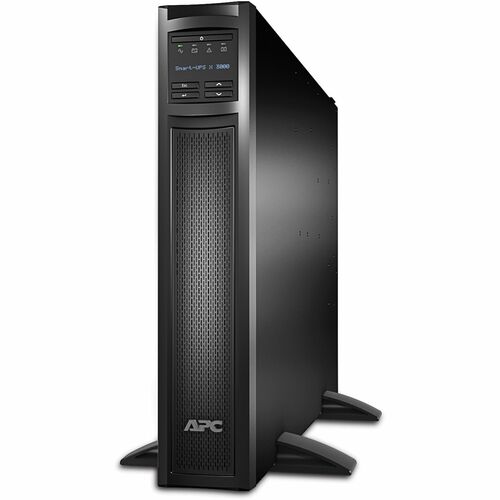

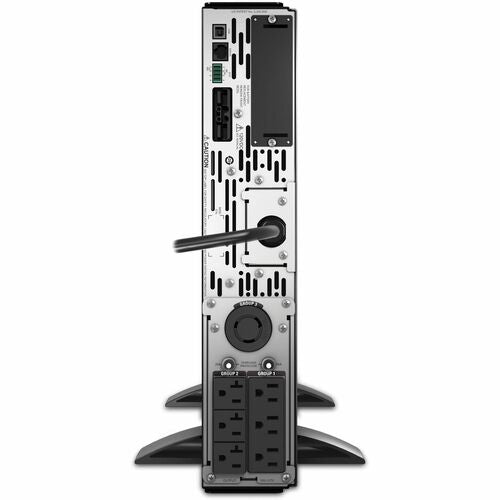

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- Works adequately in situations where the supply is prone to sags and surges
- 2.88 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 2.70 kW load capacity
- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 18 Minute |
| Backup/Run Time (Full Load) | 6 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
| Surge Energy Rating | 540 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.70 kW |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMX3000RMLV2U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Model | SMX3000RMLV2U |
| Product Name | Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Product Series | X |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA L5-30P |
| Number of Battery & Surge Outlets | 7 |
| Transfer Time | 4 ms |
| Receptacle Detail | 1 x NEMA L5-30R |
| 3 x NEMA 5-20R | |
| 3 x NEMA 5-15R | |
| Physical Characteristics | |
| Weight (Approximate) | 84.77 lb (38451.03 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.26" (667 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute Serial Edition |
| Certifications & Standards | BSMI|CSA|NOM|TÜV|VCCI Class A |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000RMLV2U_ROHS_DECLARATION&p_FileName=SMX3000RMLV2UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035430&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035430&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
