À propos du produit

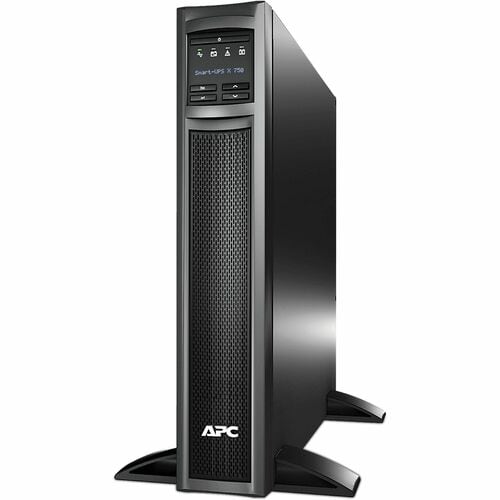

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- Works adequately in situations where the supply is prone to sags and surges
- Prevent critical data loss by staying powered during a blackout with up to 675 W load capacity
- 750 VA load capacity provides sufficient backup during power failures
- Up to 12 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Control Panel:
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SmartConnect |
| Alarm | Overload |
| On Battery | |
| Low Battery | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 25.60 Minute |
| Backup/Run Time (Full Load) | 12 Minute |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMX750C |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SMX 750VA Tower/Rack Convertible UPS |
| Product Line | Smart-UPS |
| Product Series | SMX |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 48.61 lb (22049.13 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 17.01" (432 mm) |
| Width | 3.50" (89 mm) |
| Depth | 19.29" (490 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | Lower |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 645 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Frequency | 127 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 675 W |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute Serial Edition |
| Certifications & Standards | cUL Listed|ENERGY STAR V2.0 (USA) |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX750C_ROHS_DECLARATION&p_FileName=SMX750CKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555124198&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555124198&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Application/Usage | IT Infrastructure |
| Business | |
| Workstation | |
| VoIP | |
| Telecommunication | |
| Tablet | |
| Server Room | |
| Security System | |
| Computer | |
| Data Storage | |
| Edge Computing | |
| Electronic | |
| Communication System | |
| Mission Critical Equipment | |
| Mobile Device | |
| Network Device | |
| POS Terminal | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15P |
| AVR | Yes |
| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 0 ns |
| Receptacle Detail | 8 x NEMA 5-15R |
