À propos du produit

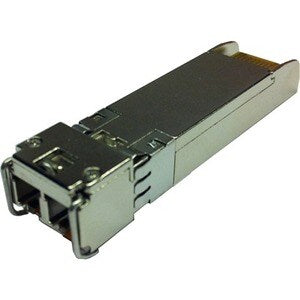

The SPPS-10GLR10 is a high performance 1310nm single-mode fiber SFP+/mini-GBIC tranceiver that features a full duplex LC connector, 10Gbps data rate over a 10km transmission range, and is a hot pluggable unit. It also features a metal enclosure for lower EMI, interface compliant to SFF-8431, a 2-wire interface for management specifications compliant with SFF 8472 and has a single 3.3 V power supply.
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Optimize the network's performance with 10 Gigabit Ethernet connectivity
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
- With 10GBase-LR technology, enjoy up to 10Gbps data transfer rate over optical fiber cable
Spécifications techniques
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 2.20" (55.88 mm) |
| Width | 1.20" (30.48 mm) |
| Depth | 0.50" (12.70 mm) |
| Media & Performance | |
| Network Technology | 10GBase-LR |
| Maximum Data Transfer Rate | 10 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| General Information | |
| Product Type | SFP+ |
| Manufacturer Part Number | SPPS-10GLR10 |
| Manufacturer Website Address | http://www.amermounts.com |
| Manufacturer | Amer Networks, Inc |
| Product Model | SPPS-10GLR10 |
| Product Name | SPPS-10GLR10 SFP+ Module |
| Brand Name | Amer |
