À propos du produit

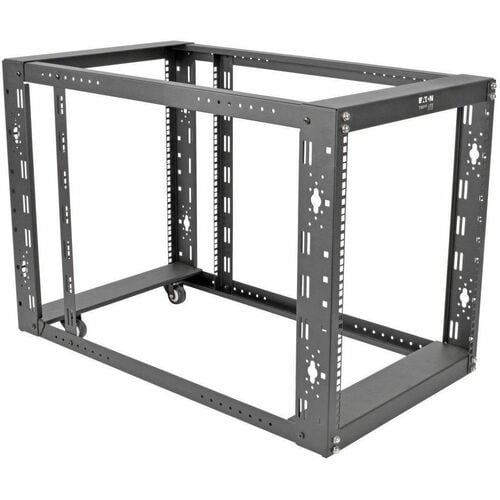

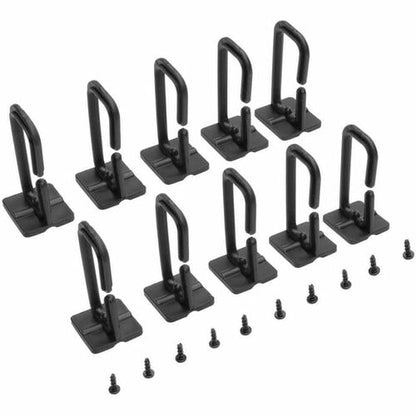

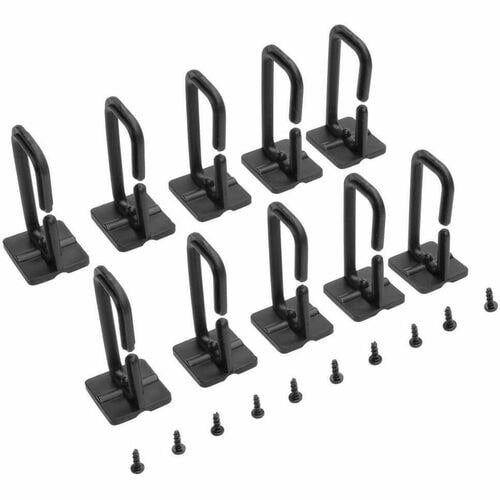

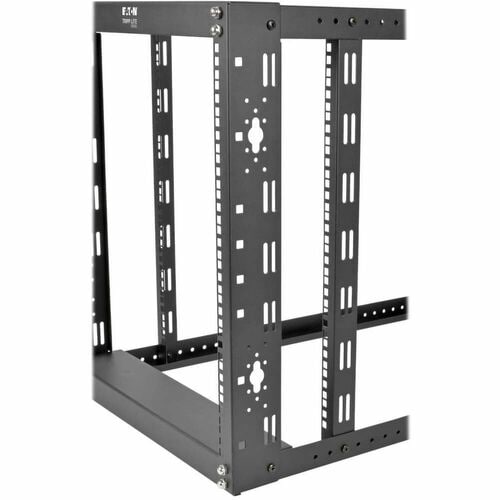

The SmartRack 12U Standard-Depth 4-Post Open Frame Rack provides an economical rack-mount solution for small offices, retail locations and other secure IT locations with limited floor space where you need equipment to be organized and easy to access. It's ideal for mounting network switches, routers, patch panels, audio/video components and other EIA-standard 19-inch rack equipment up to 36 inches deep.Constructed from heavy-duty steel with a durable black powder-coated finish, the SR12UBEXPNDKD has a maximum load capacity of 1,000 pounds. Stashed away under a counter, on a workbench or in a corner, this rack saves precious space and allows you fast, easy access at your immediate workspace for organizing, installing and servicing equipment and cabling. The open design allows unobstructed airflow to help keep components cool and performing at their peak.The self-squaring SR12UBEXPNDKD assembles using the included hardware. Built-in casters allow you to roll the rack into place. The vertical mounting rails have square, numbered holes and optional cable management hooks for securing equipment to the steel frame. Only user-supplied standard hand tools are required for setup. Toolless button holes accept 0U vertical installation of PDUs and cable managers.
- Maximum load capacity of 1,000 lb.
- Secures 12U of 19 in. rack equipment up to 36 in. deep
- Heavy-duty steel construction designed to last
- Assembles using included hardware
- Accommodates toolless button mounting for PDUs
Spécifications techniques
| Technical Information | |
| Application/Usage | Patch Panel |
| A/V Equipment | |
| Server | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Assembly Required | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Rack Frame |
| Manufacturer Part Number | SR12UBEXPNDKD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SR12UBEXPNDKD |
| Product Name | SmartRack 12U 4-Post Open Frame Rack |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 45 lb (20411.66 g) |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 12U |
| Height | 25.60" (650.24 mm) |
| Width | 20.37" (517.40 mm) |
| Depth | 35.94" (912.88 mm) |
| Maximum Weight Capacity | 1000 lb (453592.37 g) |
| Static/Stationary Weight Capacity | 1000 lb (453592.37 g) |
| Rack Depth | 36" (914.40 mm) |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Product Material | Steel |
