À propos du produit
48U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Enclosures ship fully assembled for rapid deployment. Toolless mounting slots allow quick installation of PDUs and vertical cable managers. Adjustable mounting rails include an easy-view depth index. Lightweight modular doors and side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows. SmartRack enclosures hold up to 3000 lbs. Perforated doors permit massive front to rear airflow. Enclosures are fully compatible with hot-aisle / cold-aisle data center configurations. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance.

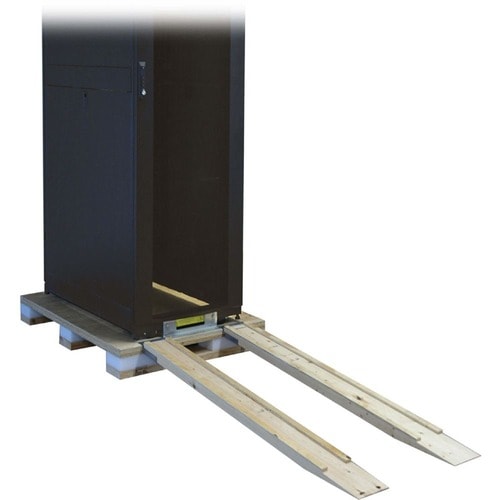

- Standard 48U SmartRack enclosure with additional shock pallet and loading ramps.
- 4 interior vertical posts with unthreaded square hole openings
- Standard 24" width for optimizing floor space
- Ships fully assembled
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors
- Locking, removable side panels keyed alike with doors
Spécifications techniques
| Physical Characteristics | |
| Rack Height | 48U |
| Static/Stationary Weight Capacity | 3000 lb (1360777.11 g) |
| Dynamic/Rolling Weight Capacity | 2250 lb (1020582.83 g) |
| Miscellaneous | |
| Additional Information |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SR48UBSP1 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SR48UBSP1 |
| Product Name | SR48UBSP1 Rack Enclosure Server Cabinet Shock Pallet - 48U - 19" |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
