À propos du produit

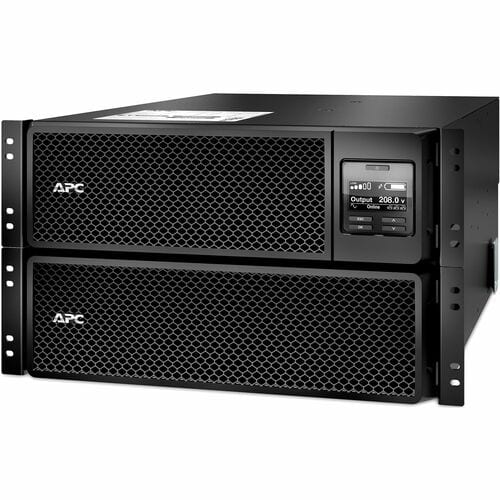

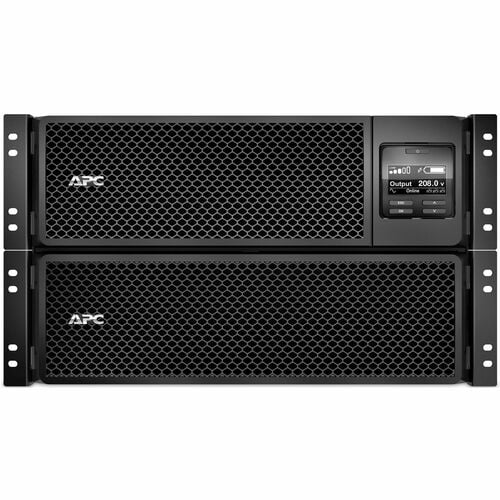

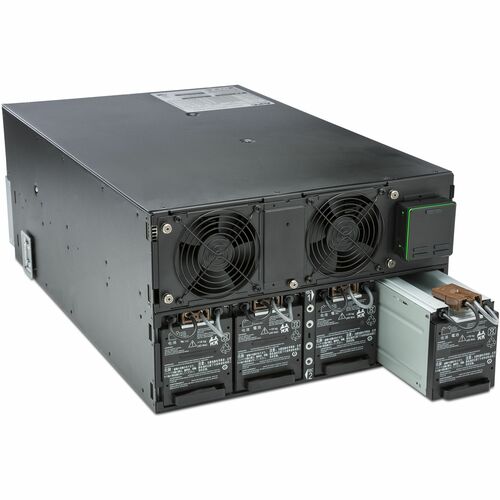

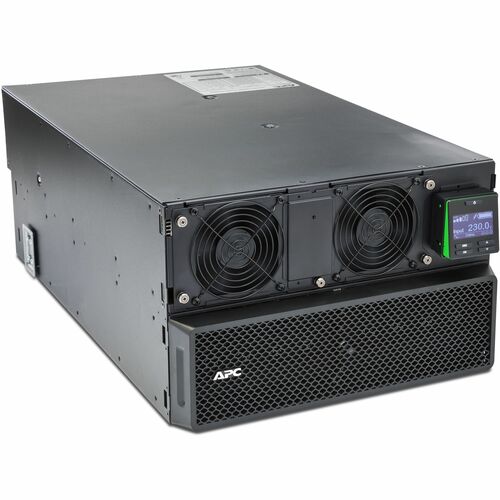

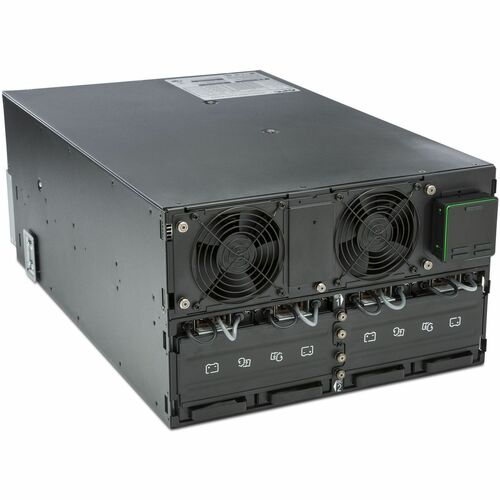

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 2x NEMA L6-30R and 4x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- 10 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 10 kW load capacity
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Surge Energy Rating | 480 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
| Technical Information | |
| Receptacle Type | NEMA L6-30R |
| NEMA L6-20R | |
| Number of Battery & Surge Outlets | 6 |

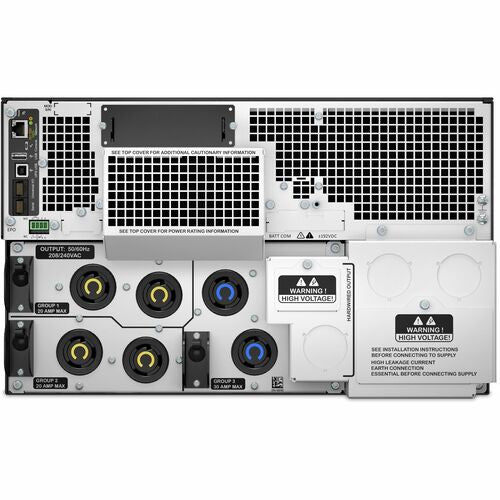

| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G) |
| 2 x NEMA L6-30R | |
| 4 x NEMA L6-20R | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT10KRMXLT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 10000VA RM 208V |
| Product Line | Smart-UPS On-Line |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 245.99 lb (111579.19 g) |
| Form Factor | Rack-mountable |
| Rack Height | 6U |
| Height | 10.35" (263 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.15" (715 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|FCC part 15 class A|NOM|UL 1778 |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KRMXLT_ROHS_DECLARATION&p_FileName=SRT10KRMXLTKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135454&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135454&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
