À propos du produit

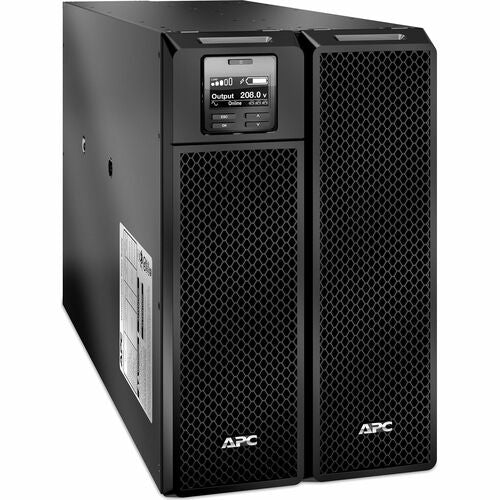

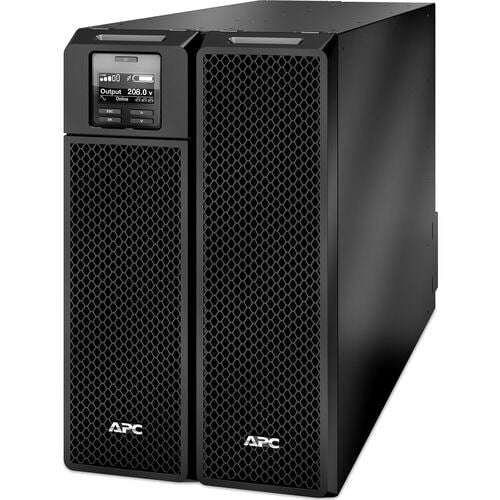

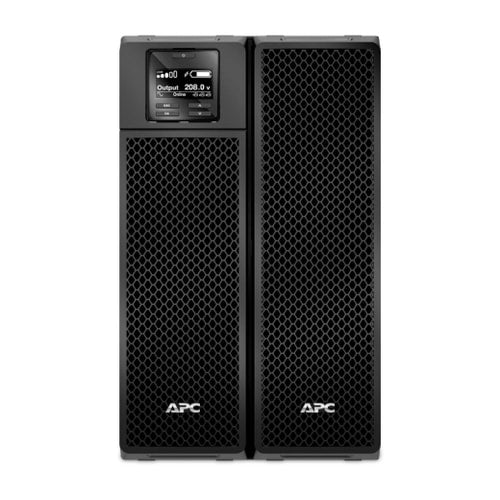

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- 10 kW load capacity - backup power for your valuable electronics
- 10 kVA load capacity provides sufficient backup during power failures
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Surge Energy Rating | 480 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT10KXLT-IEC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 10000VA Tower/Rack Mountable UPS |
| Product Line | Smart-UPS SRT |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 245.99 lb (111579.19 g) |
| Form Factor | Rack-mountable |
| Height | 17.01" (432 mm) |
| Width | 10.35" (263 mm) |
| Depth | 28.15" (715 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Technical Information | |
| Application/Usage | Server |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Hard Wire 3-wire (2PH + G) | |
| Number of Battery & Surge Outlets | 13 |

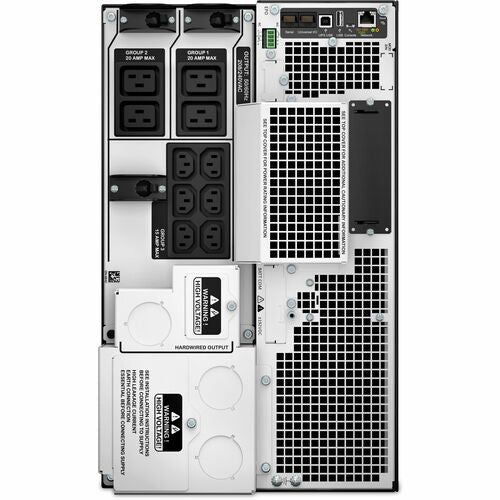

| Receptacle Detail | 6 x IEC 60320 C13 |
| 4 x IEC 60320 C19 | |
| 1 x Hard Wire 3-wire (2PH + G) | |
| 3 x IEC Jumper | |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|FCC part 15 class A|UL 1778 |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KXLT-IEC_ROHS_DECLARATION&p_FileName=SRT10KXLT-IECKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135463&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135463&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
