À propos du produit

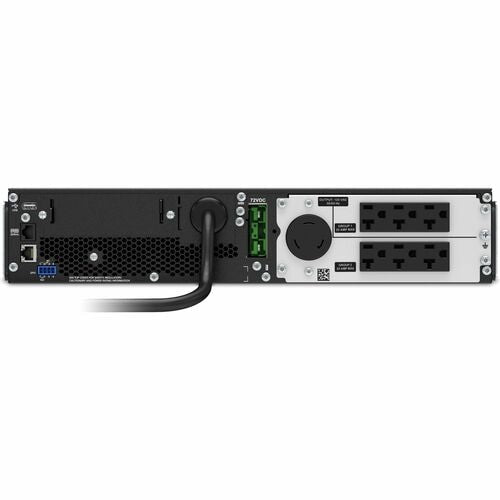

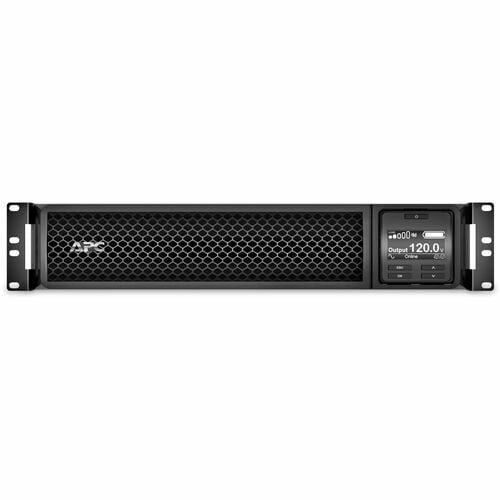

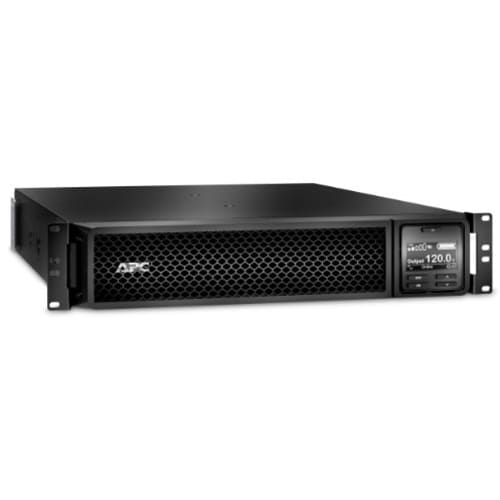

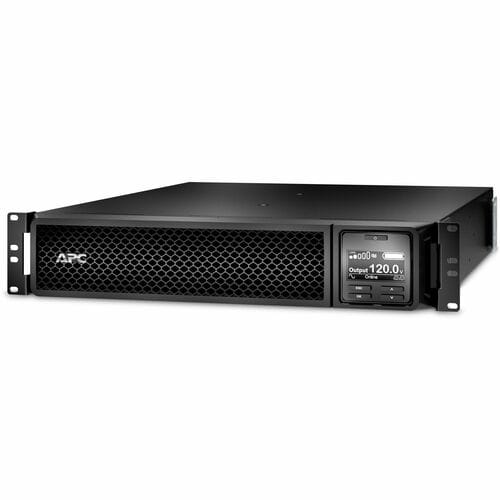

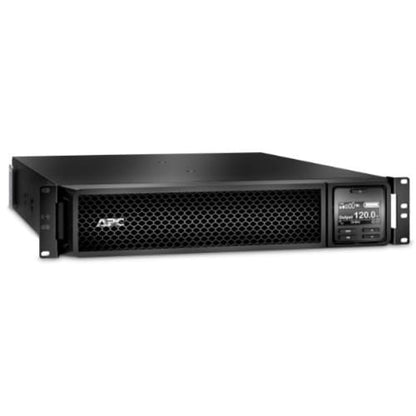

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- Prevent critical data loss by staying powered during a blackout with up to 1.80 kW load capacity
- 2.20 kVA load capacity provides sufficient backup during power failures
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LCD Display |
| Interfaces/Ports | |
| EPO Port | Yes |
| Management | |
| Network Management | SmartSlot |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Environmental Conditions | |
| Thermal Dissipation | 535 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT2200RMXLA |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 2200VA RM 120V |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 340 J |
| Waveform Type | Sine Wave |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Energy | 1101.6 kJ |
| Number of Batteries | 1 |
| Replaceable Battery | Yes |
| DC System Voltage | 72 V DC |
| Typical Battery Recharge Time | 3 Hour |
| Technical Information | |
| Application/Usage | Network Workstation |
| Server | |
| Plug/Connector Type | NEMA 5-20P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-20P |
| Number of Battery & Surge Outlets | 7 |
| Receptacle Detail | 6 x NEMA 5-20R |
| 1 x NEMA L5-20R | |
| Physical Characteristics | |
| Weight (Approximate) | 55.01 lb (24952.12 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.99" (584 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute Serial Edition |
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA_ROHS_DECLARATION&p_FileName=SRT2200RMXLAKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563181&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563181&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612036_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612036_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
