À propos du produit
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
- 8 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 8 kW load capacity
- 8 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 5 minute at full load
Spécifications techniques
| Controls/Indicators | |

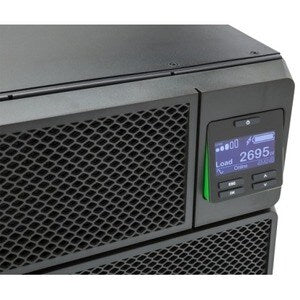

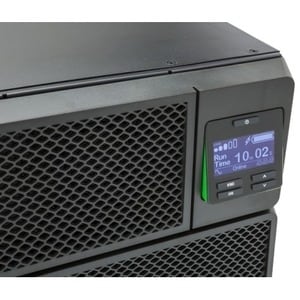

| Status Indicators | LED Indicators |
| Management | |
| Alarm | Battery Failure |
| Environmental Conditions | |
| Thermal Dissipation | 1497 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |

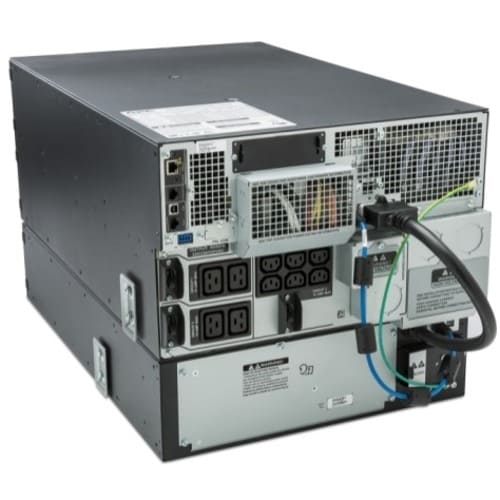

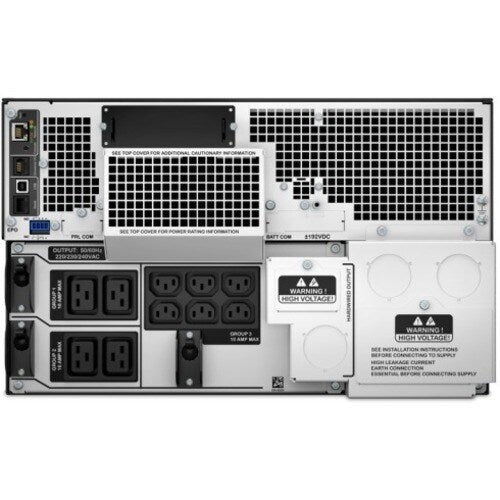

| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Total Number of Expansion Slots | 1 |
| Miscellaneous | |
| Package Contents | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Power Description | |
| Circuit Breaker | Yes |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 8 kW |

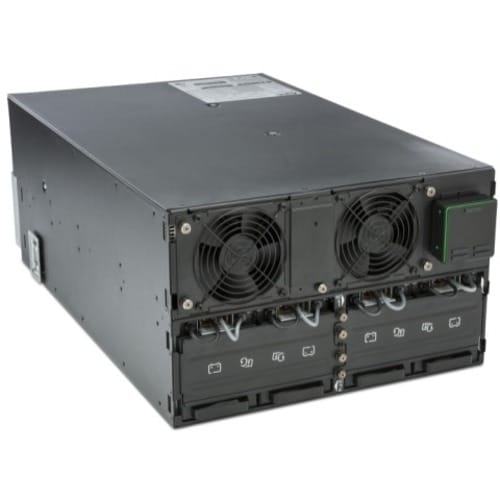

| Battery Information | |
| Battery Chemistry | Lead Acid |

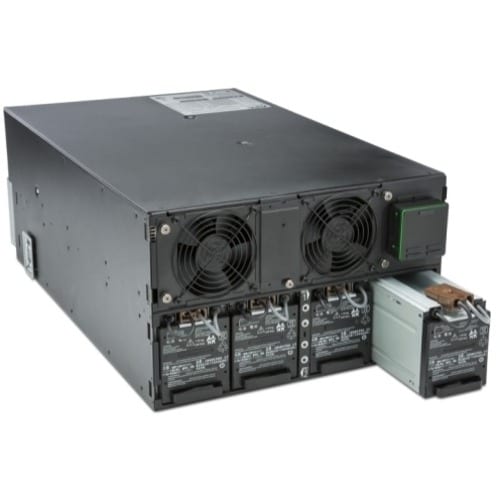

| Hot Swappable | Yes |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 16 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Typical Battery Recharge Time | 1.50 Hour |
| Technical Information | |
| Bypass Switch | Automatic & Manual |
| Internal | |
| Emergency Power OFF | Yes |
| Protection Type | Spike |
| Surge | |
| Lightning | |
| Number of Battery & Surge Outlets | 25 |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT8KRMXLI |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

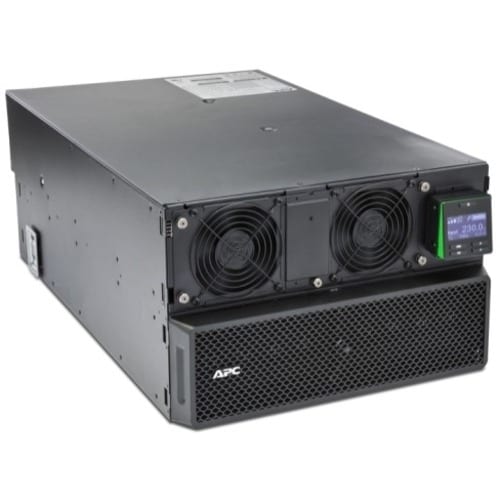

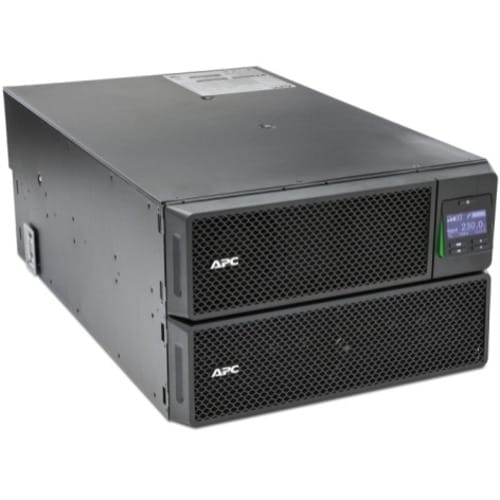

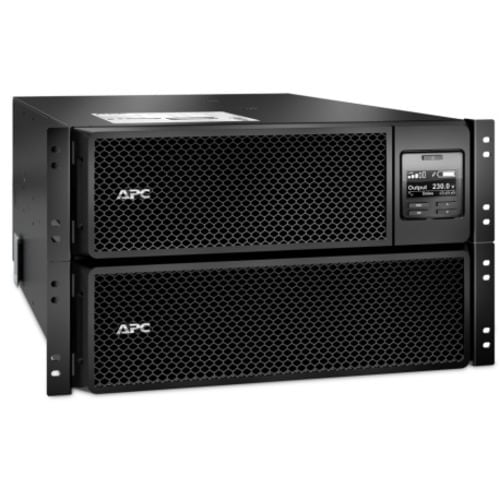

| Product Name | Smart-UPS SRT 8000VA RM 230V |
| Product Line | Smart-UPS |
| Product Series | SRT |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 246.52 lb (111820 g) |

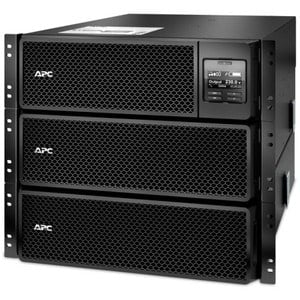

| Form Factor | Rack-mountable |
| Rack Height | 6U |
| Height | 10.35" (263 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.15" (715 mm) |
| Product Color | Black |
| Color Family | Black |
