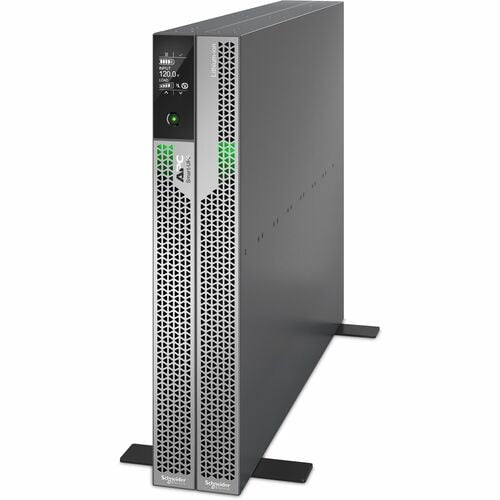

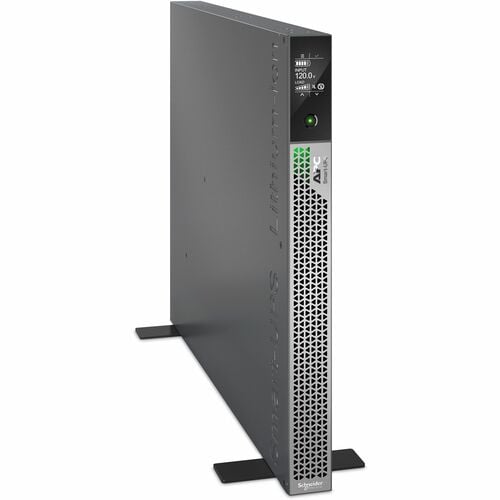

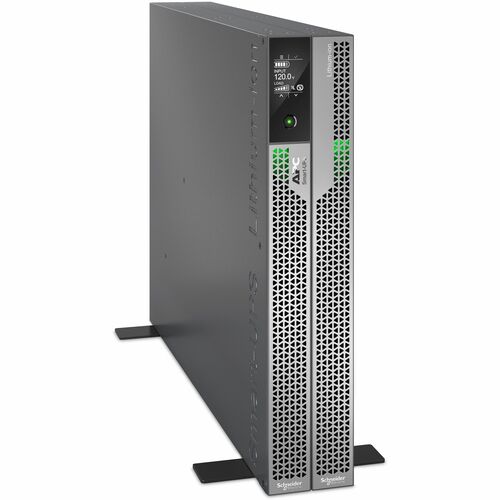

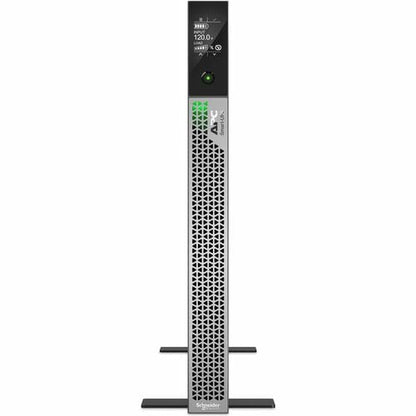

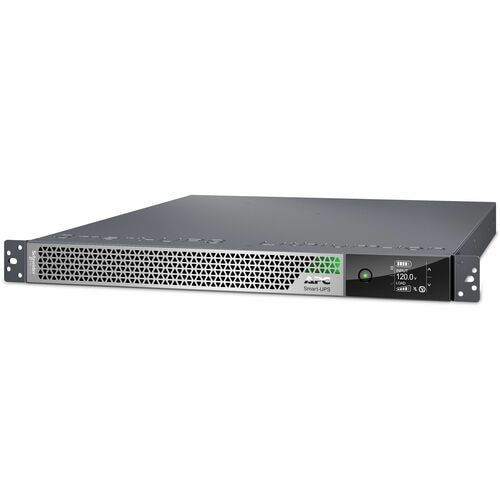

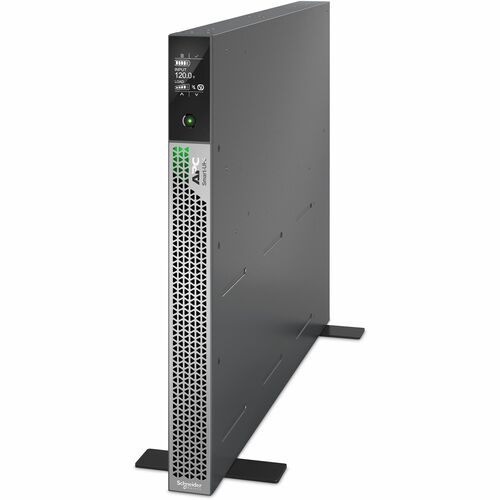

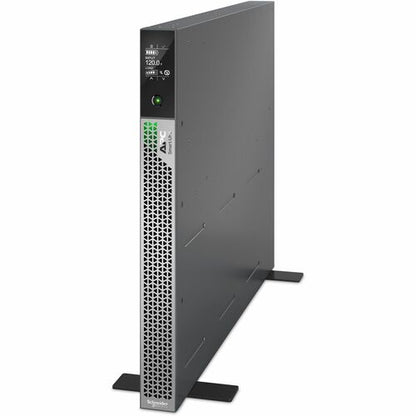

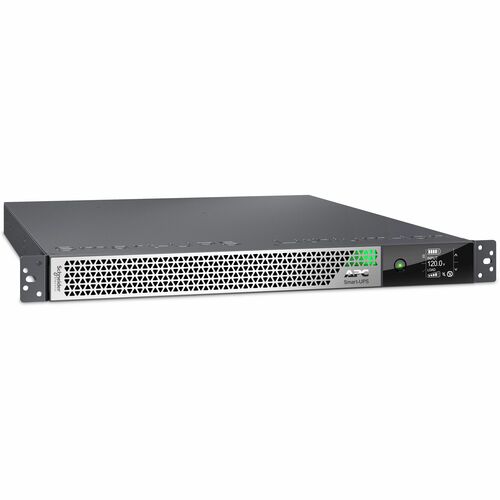

APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with Embedded Network Port This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Replacement battery (1) is available

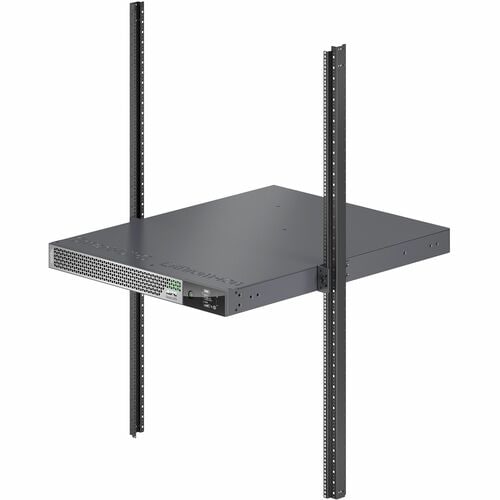

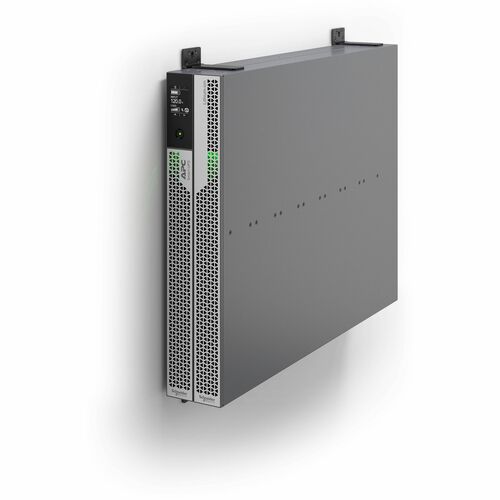

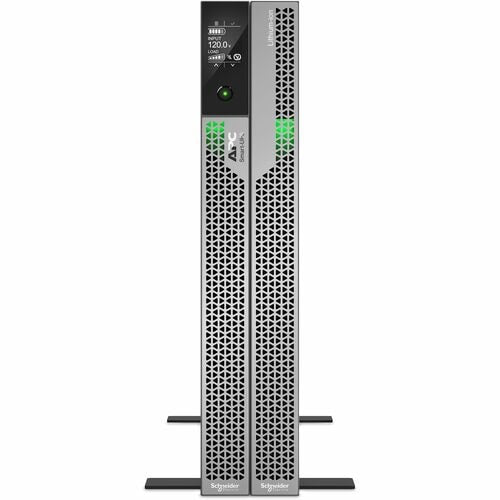

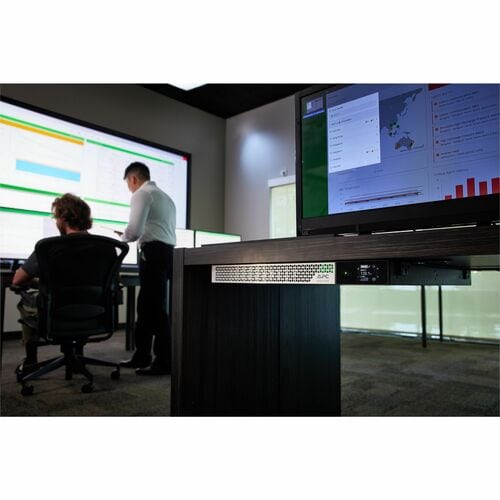

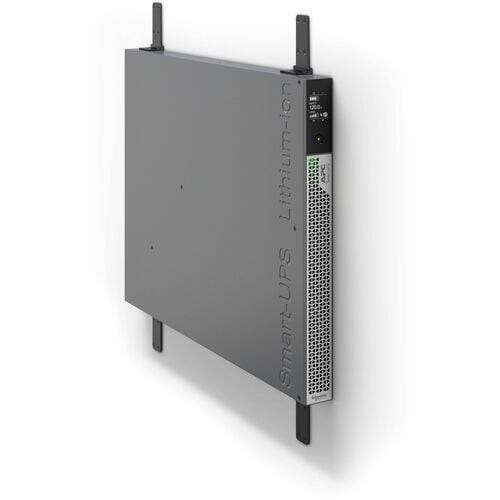

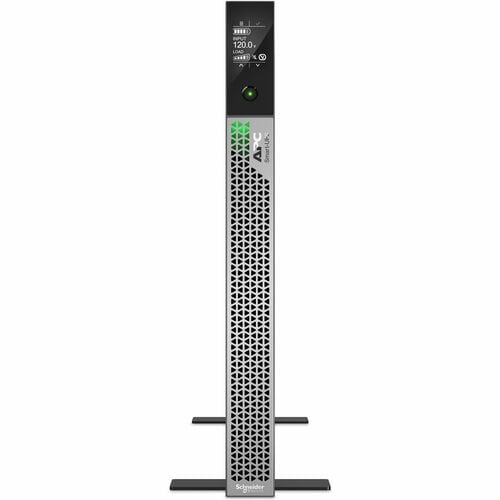

- 1U, 2200VA/1950W UPS with 5 mounting styles: rack/tower/wall/ceiling/desk under mount
- Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
- EcoStruxure™ Ready for remote monitoring and management
- Wireless communication capable with optional WiFi Device accessory (AP9834)
- 5-year warranty on UPS and internal batteries
Spécifications techniques
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | 5 years repair or replace |
| Management | |
| Network Management | Network Card |
| Alarm | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 50V |
| Battery Energy | 1123.2 kJ |
| Backup/Run Time (Half Load) | 12.65 Minute |
| Backup/Run Time (Full Load) | 6.05 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| General Information | |
| Product Type | Dual Conversion Online UPS |
| Manufacturer Part Number | SRTL2K2RM1UNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS |
| Product Line | Smart-UPS Ultra |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 120 V |
| 125 V | |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 2.20 kW |
| Physical Characteristics | |
| Weight (Approximate) | 35.05 lb (15898.41 g) |
| Form Factor | Rack/Tower/Wall/Ceiling/Desktop Mountable |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.05" (560 mm) |
| Product Color | Silver Gray |
| Color Family | Silver |
| Mounting Preference | No Preference |
| Technical Information | |
| Application/Usage | Voice/Data Network |
| Server | |
| Retail | |
| Medical Laboratory | |
| Light Industrial Application | |
| Plug/Connector Type | NEMA 5-20P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-20P |

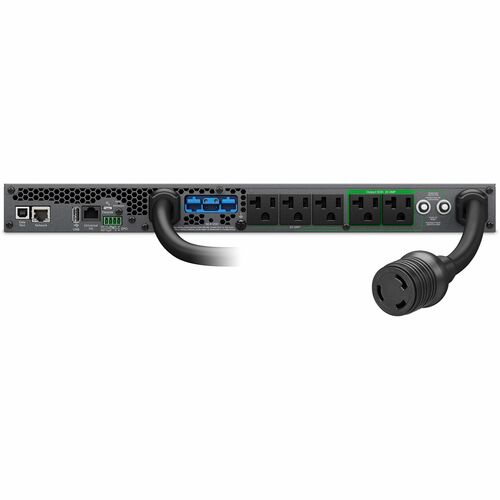

| Receptacle Detail | 5 x NEMA 5-20R |
| 1 x NEMA L5-20R | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | UL/cUL listed|FCC |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL2K2RM1UNC_ROHS_DECLARATION&p_FileName=SRTL2K2RM1UNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555828788&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555828788&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
