À propos du produit

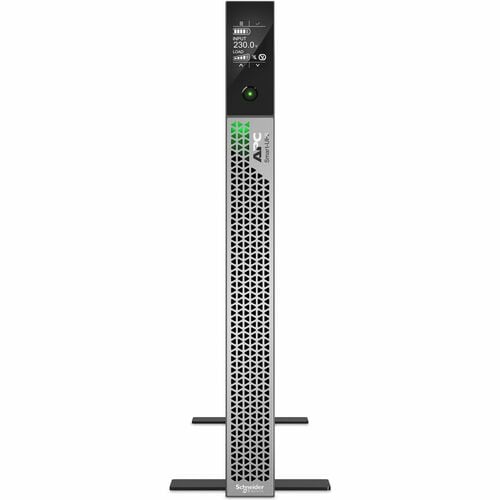

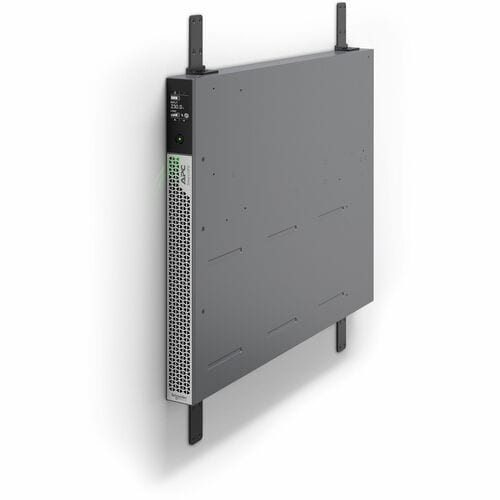

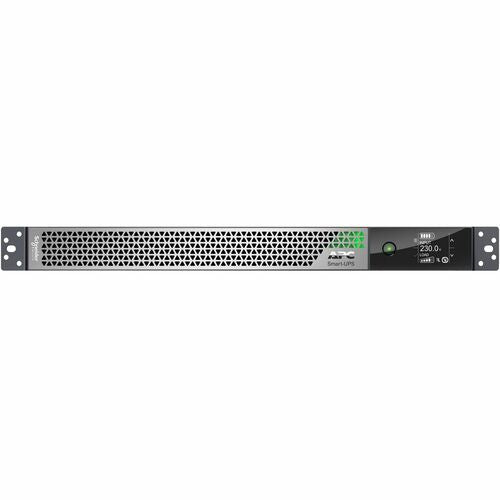

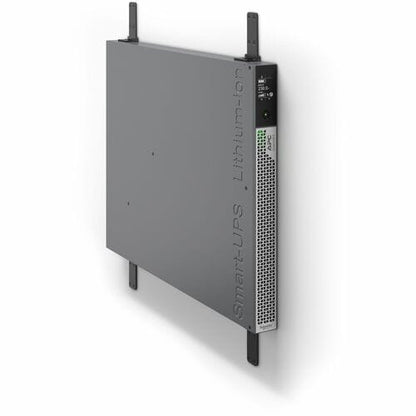

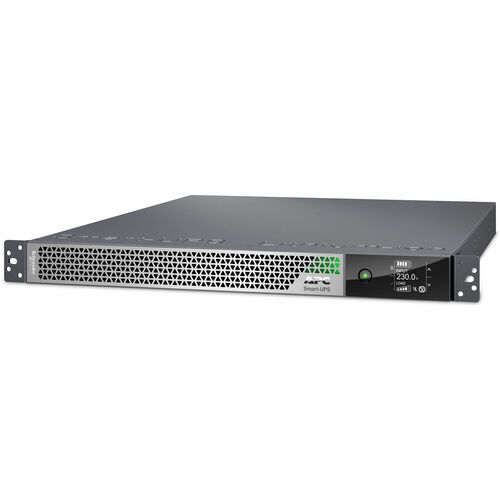

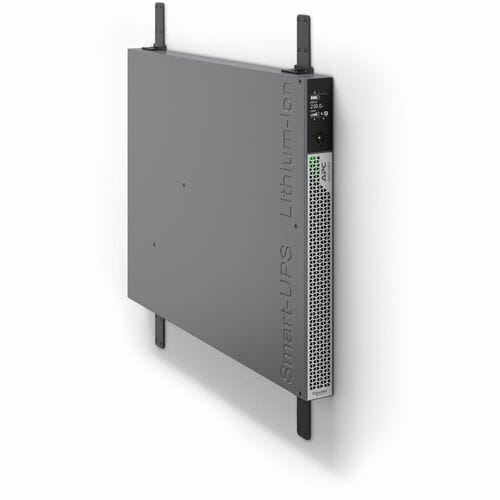

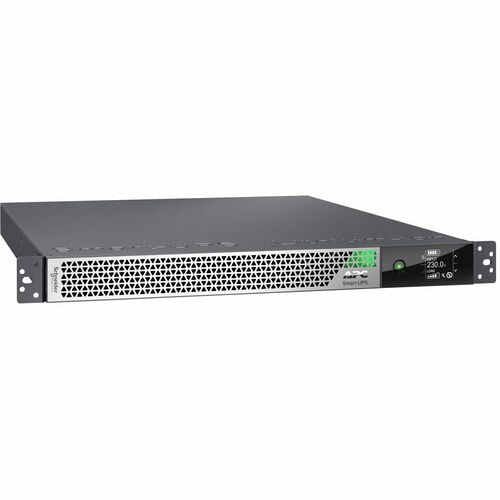

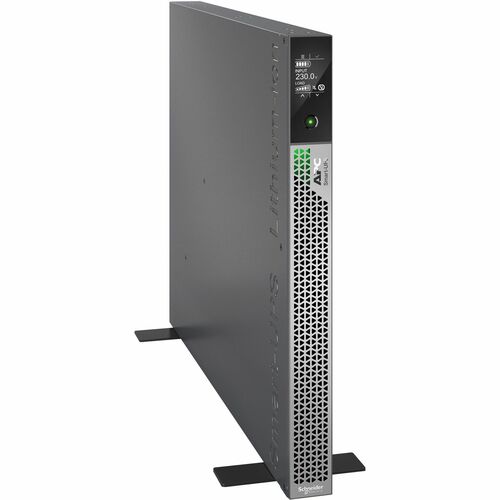

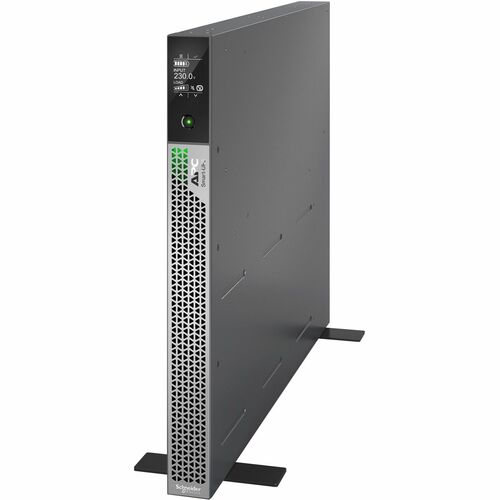

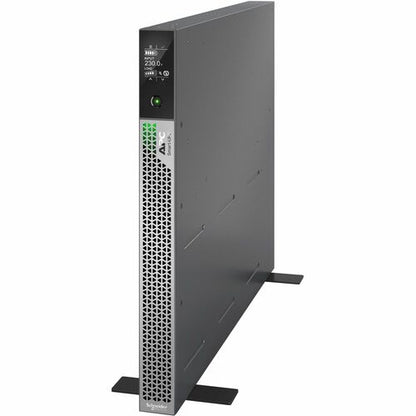

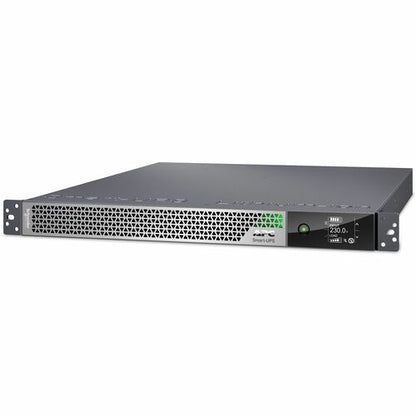

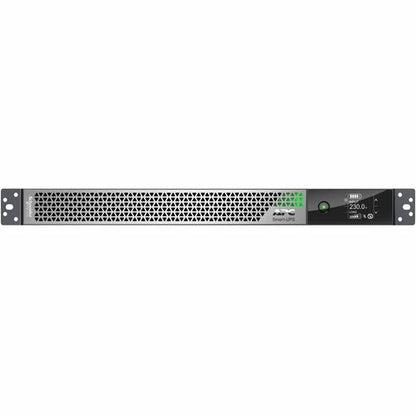

With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. 230V and 208V user selectable output. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- 2.20 kVA load capacity - work without any interruption during power outages
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Network Management | Network Card |
| Warranty | |
| Additional Warranty Information | 5 years repair or replace |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| General Information | |
| Product Type | Dual Conversion Online UPS |
| Manufacturer Part Number | SRTL2K2RM1UWNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra 2200VA Rack-mountable UPS |
| Product Line | Smart-UPS Ultra |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Application/Usage | Server |
| Network | |
| Plug/Connector Type | British BS1363A |
| Cord Length | 8 ft (2.44 m) |

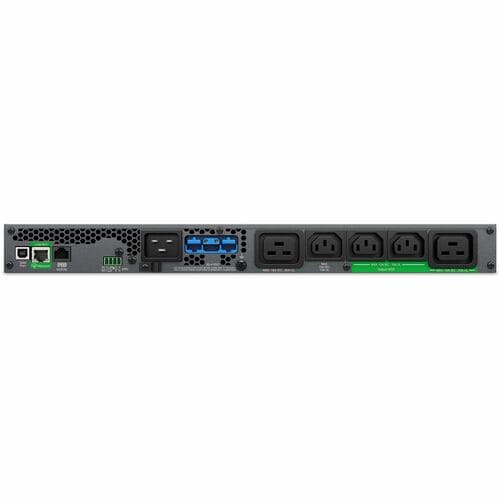

| Receptacle Type | IEC 320-C13 |
| Receptacle Detail | 2 x IEC 320-C19 |
| 3 x IEC 320-C13 | |
| Power Description | |
| Input Voltage | 240 V AC |
| 208 V AC | |
| Output Voltage | 240 V AC |
| 208 V AC | |
| Surge Energy Rating | 1600 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Frequency | 50 Hz |
| Load Capacity (VA) | 2.20 kVA |
| Physical Characteristics | |
| Weight (Approximate) | 35.05 lb (15898.41 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.05" (560 mm) |
| Product Color | Silver Gray |
| Color Family | Silver |
| Mounting Location | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | CE|EAC|RCM|VDE|UKCA|UK PSTI |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL2K2RM1UWNC_ROHS_DECLARATION&p_FileName=SRTL2K2RM1UWNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567066303&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567066303&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| Toxic Heavy Metal Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
