À propos du produit

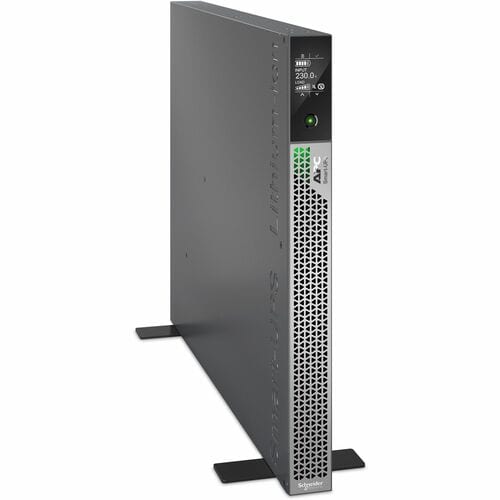

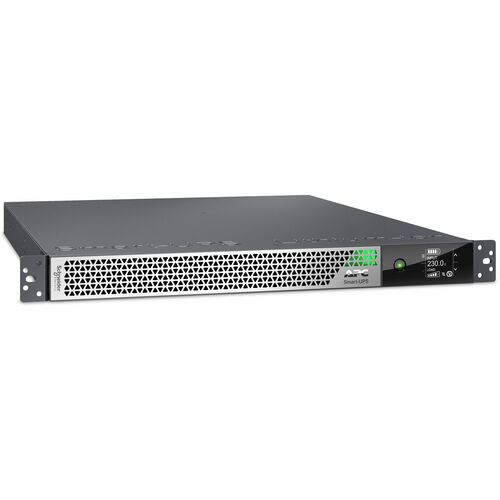

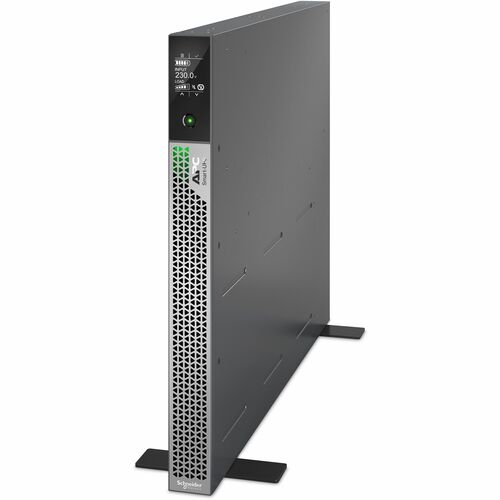

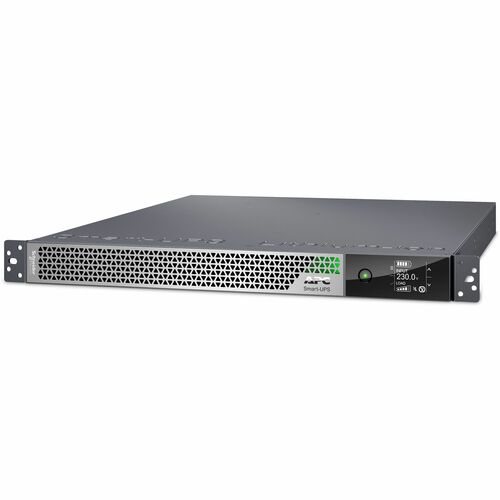

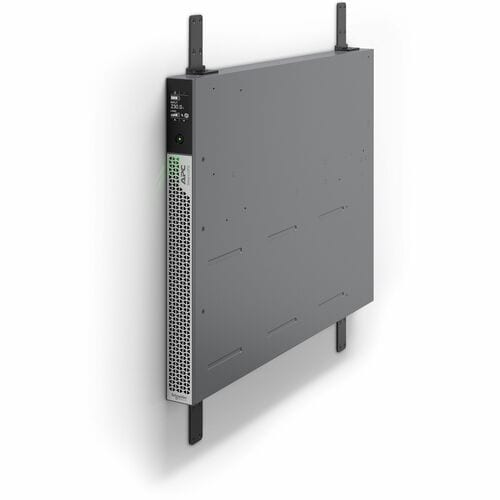

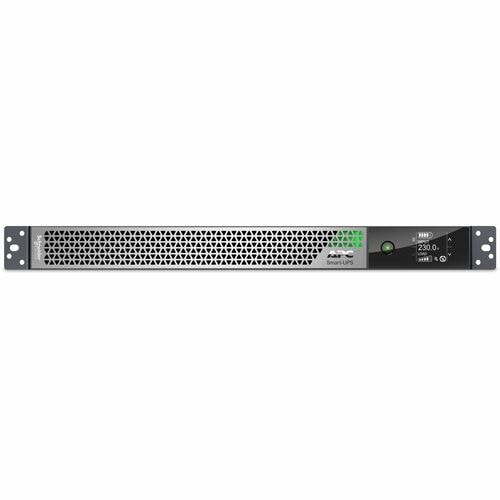

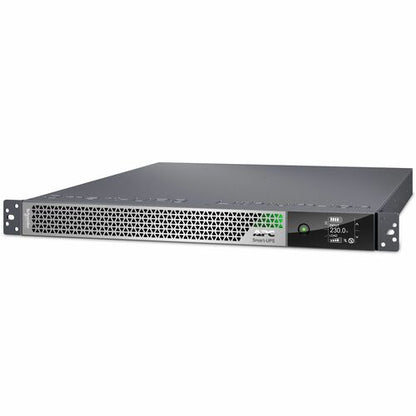

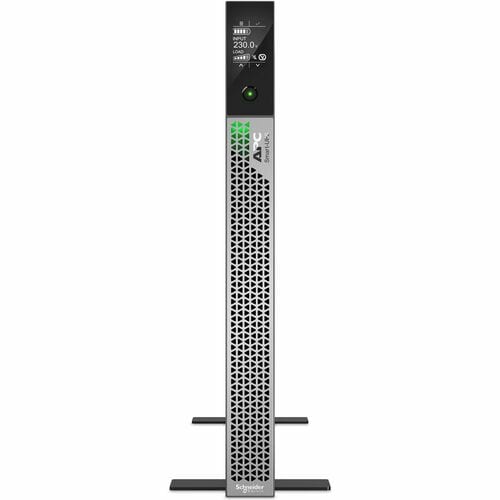

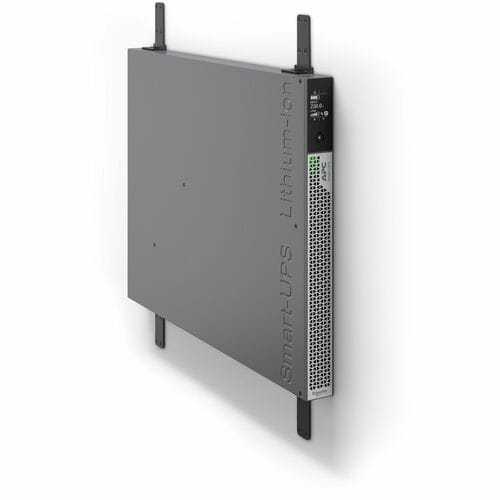

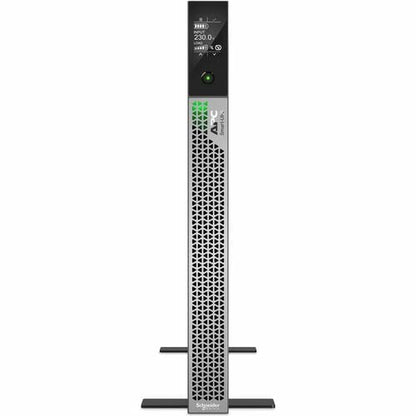

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
- 3 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 3 kW load capacity
- 3 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 4.60 minute at full load
- Up to 4.60 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Warranty | |
| Additional Warranty Information | 5 years repair or replace |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Technical Information | |
| Plug/Connector Type | British BS1363A |
| Cord Length | 8 ft (2.44 m) |

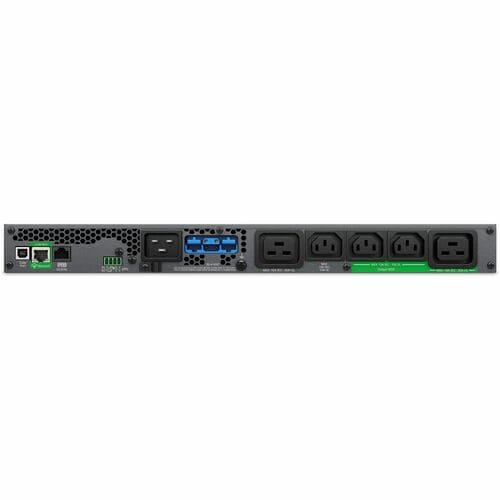

| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 3 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 50V |
| Battery Energy | 1209.6 kJ |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 4.60 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| General Information | |
| Product Type | Dual Conversion Online UPS |
| Manufacturer Part Number | SRTL3KRM1UWNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra 3000VA Rack-mountable UPS |
| Product Line | Smart-UPS Ultra |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 35.05 lb (15898.41 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.05" (560 mm) |
| Product Color | Silver Gray |
| Color Family | Silver |
| Mounting Preference | No Preference |
| Power Description | |
| Input Voltage | 240 V |
| 208 V | |
| Output Voltage | 240 V AC |
| 208 V AC | |
| Waveform Type | Sine Wave |
| Input Voltage Range | 208 V AC - 240 V AC |
| 160 V AC - 275 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | CE |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UWNC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UWNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112361&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567112361&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
