À propos du produit

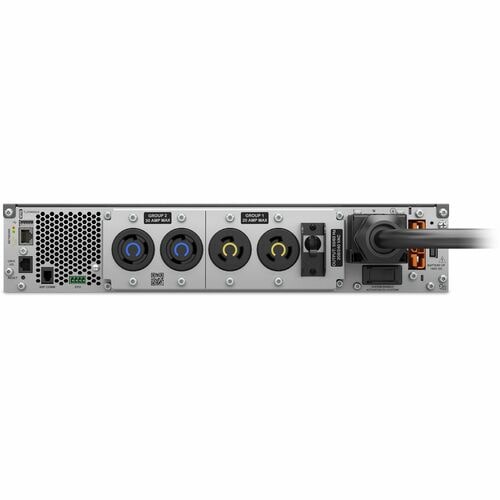

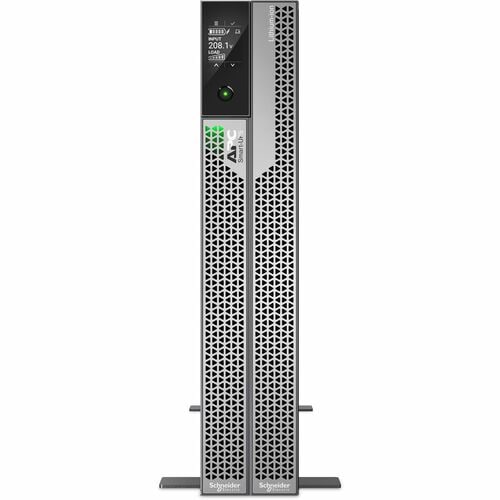

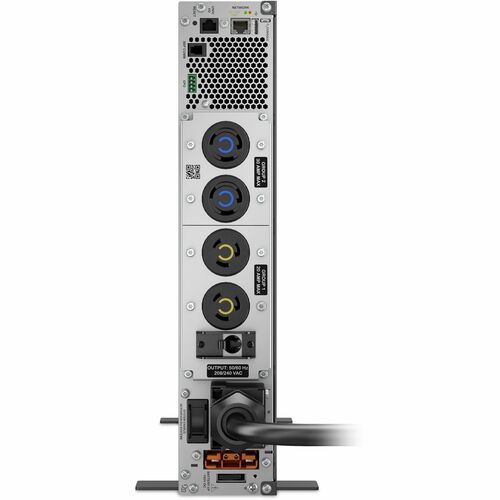

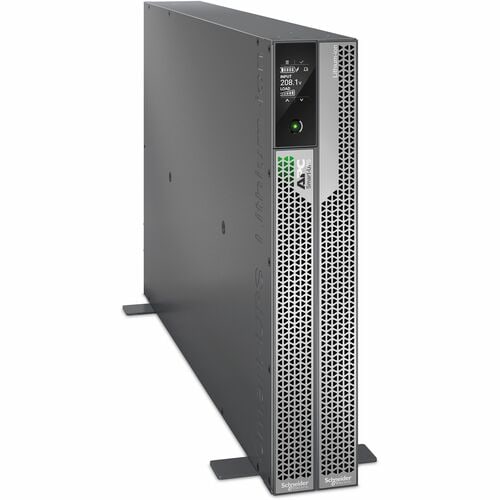

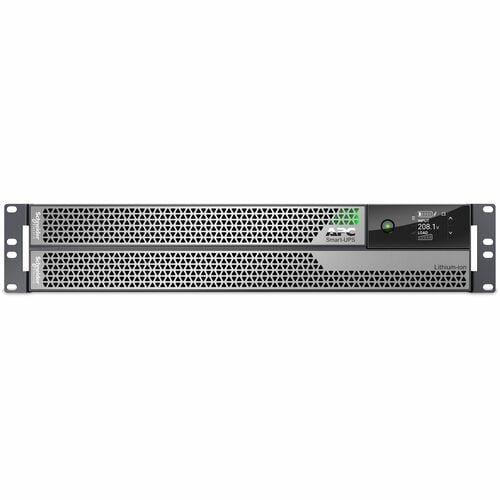

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
- 4.90 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 5 kW load capacity
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Multi-function LCD Status and Control Console |
| Warranty | |
| Additional Warranty Information | 5 years |
| Interfaces/Ports | |
| EPO Port | Yes |
| USB (HID Compliant) Port | No |
| Environmental Conditions | |
| Thermal Dissipation | 1047 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Battery Information | |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 2592 kJ |
| DC System Voltage | 180 V DC |
| Typical Battery Recharge Time | 1.50 Hour |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail | 2 x NEMA L6-20R |
| 2 x NEMA L6-30R | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRTL5KRM2UT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 4 Pack |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Surge Energy Rating | 1260 J |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 4.90 kVA |
| Load Capacity (Watt) | 5 kW |
| Physical Characteristics | |
| Weight (Approximate) | 64.37 lb (29197.74 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 27.60" (701 mm) |
| Product Color | Silver Gray |
| Color Family | Silver |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Product Take Back Program | No |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555124200&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555124200&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
