À propos du produit

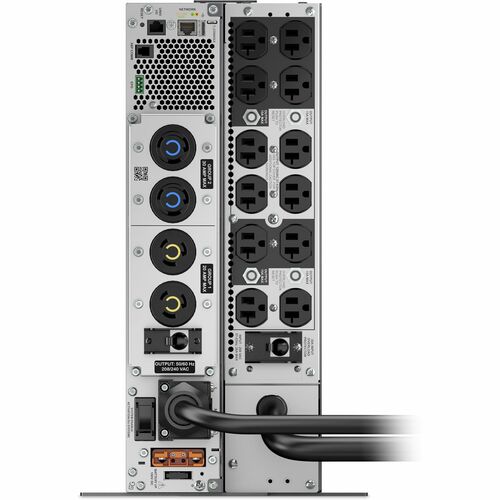

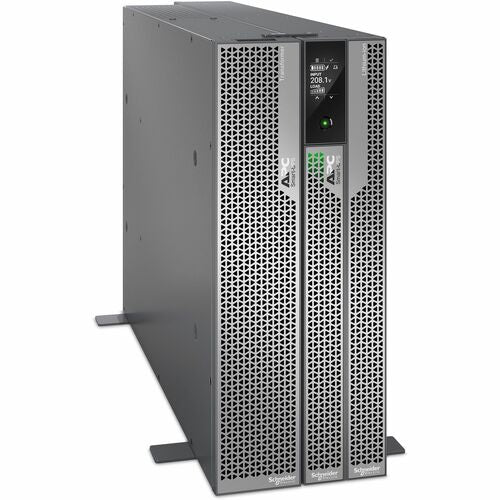

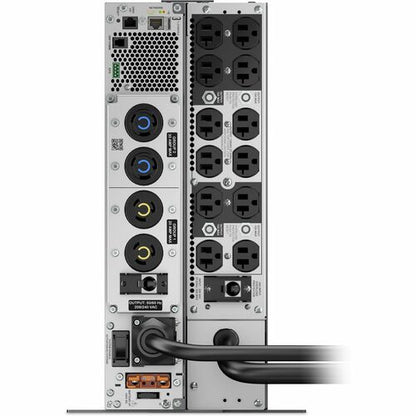

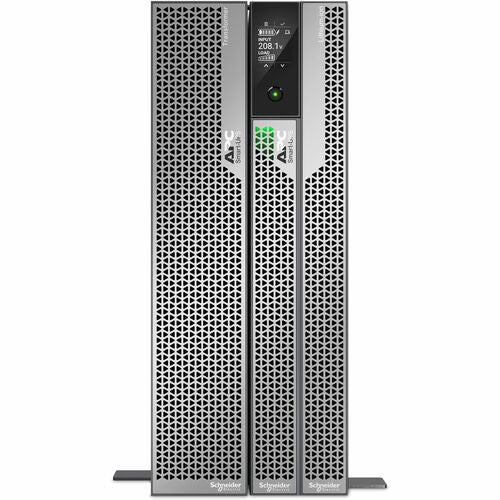

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Standard warranty, 5 years repair or replace.
- 4.90 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 4.90 kW load capacity
- 4.90 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 5.50 minute at full load
- Up to 5.50 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Management Card 3 (NMC3) |
| Warranty | |
| Additional Warranty Information | 5 years repair or replace |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 1047 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Battery Information | |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 2304 kJ |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail | 4 x NEMA L6-20R |
| 3 x NEMA L6-30R | |
| 1 x NEMA L14-30R | |
| 8 x NEMA 5-20R | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRTL5KRM2UT5KTF |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra 5000VA Tower UPS |
| Product Line | Smart-UPS Ultra |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1260 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 100 V AC - 275 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 4.90 kVA |
| Load Capacity (Watt) | 4.90 kW |
| Physical Characteristics | |
| Weight (Approximate) | 189.38 lb (85901.32 g) |
| Form Factor | Tower |
| Rack Height | 2U |
| Height | 17.13" (435.10 mm) |
| Width | 8.66" (219.96 mm) |
| Depth | 28.31" (719 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL5KRM2UT-5KTF_ROHS_DECLARATION&p_FileName=SRTL5KRM2UT-5KTFKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112365&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567112365&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
