À propos du produit

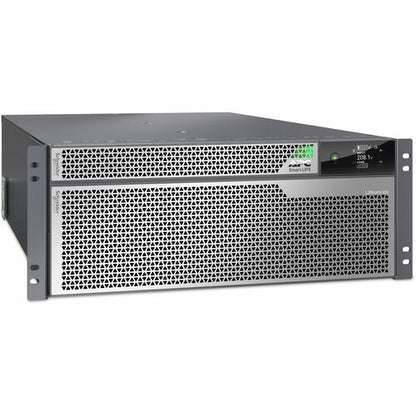

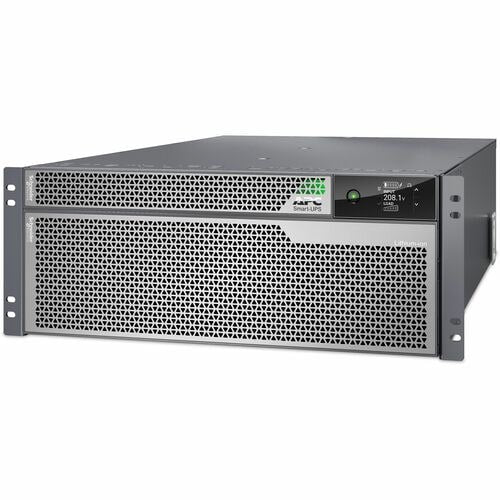

With Smart-UPS™ Ultra you can put up to 8000W of power protection in places never before possible. Make installation effortless with a 8kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime. Standard warranty, 5 years repair or replace.
- 8 kVA load capacity - work without any interruption during power outages
- 8 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 8 kW load capacity
- 8 kVA load capacity provides sufficient backup during power failures
Spécifications techniques
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Warranty | |
| Additional Warranty Information | 5 years repair or replace |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| DC System Voltage | 180 V DC |
| Typical Battery Recharge Time | 1.50 Hour |
| Interfaces/Ports | |
| USB | No |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Technical Information | |
| Features | Audible Alarm |

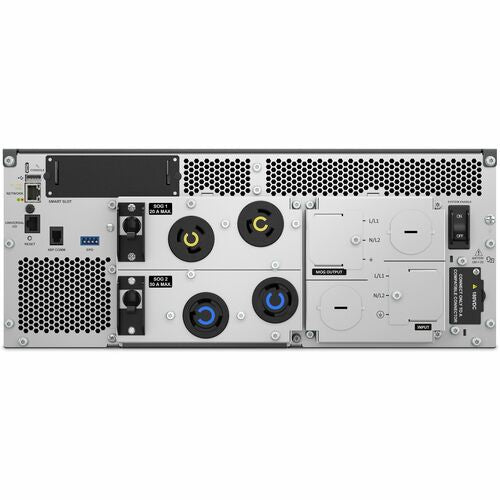

| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | NEMA L6-20R |
| NEMA L6-30R | |
| Receptacle Detail | 2 x NEMA L6-30R |
| 2 x NEMA L6-20R | |
| 1 x Hard Wire 3-wire (2PH + G) | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRTL8KRM4UT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 / Pack |
| Manufacturer | Schneider Electric SA |
| Product Name | Double Conversion Online UPS |
| Product Line | Smart-UPS Ultra |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 121.25 lb (54998.07 g) |
| Form Factor | Rack/Tower |
| Rack Height | 4U |
| Height | 6.89" (175 mm) |
| Width | 17.01" (432 mm) |
| Depth | 32.76" (832 mm) |
| Product Color | Silver Gray |
| Color Family | Silver |
| Mounting Location | Vertical |
| Mounting Preference | Lower |
| Power Description | |
| Input Voltage | 240 V AC |
| 208 V AC | |
| Output Voltage | 208 V AC |
| Surge Energy Rating | 1410 J |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 50 Hz |
| 60 Hz | |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 8 kW |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL8KRM4UT_ROHS_DECLARATION&p_FileName=SRTL8KRM4UTKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567129782&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567129782&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
