À propos du produit

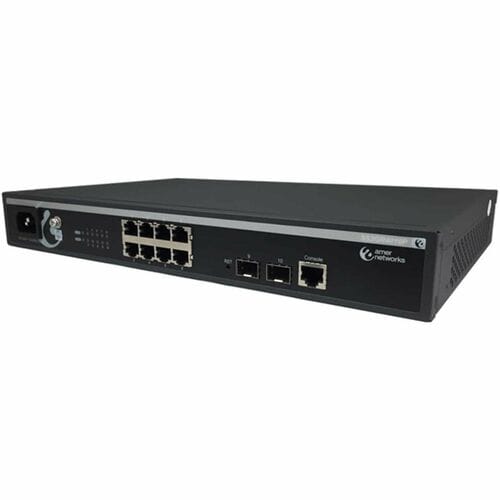

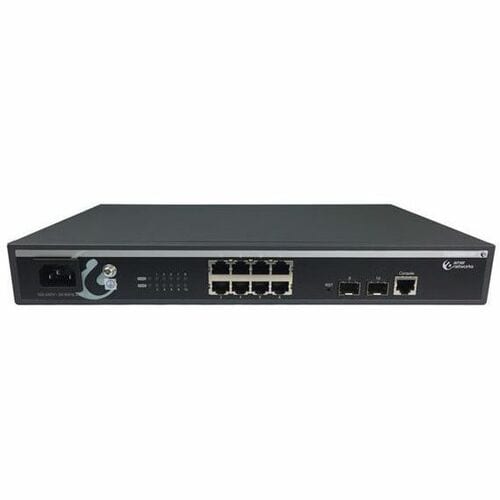

SS2GR4000 Series is an L2 Plus Gigabits intelligent switch designed for carrier and MAN networks. It supports comprehensive QoS, enhanced VLAN functions (VLAN VPN, Voice VLAN, QinQ, N:1 VLAN Translation etc), Ethernet Ring Protection Protocol (G.8032), classified bandwidth control, intelligent security control, OAM(Operations, Administration and Maintenance), manageability functions and Triple-Play services which fulfil the network requirements demanded by carrier network, MAN access. Support for the Power Over Ethernet (PoE+) standard makes these devices ideal for use in CCTV networks, as well as installations of wireless WiFi networks. SS2GR4000 Series switch offers green features like IEEE 802.3az (Energy Efficient Ethernet), Fan-less design feature, which can dramatically lower power consumption, achieve green energy and save the cost for the carrier and MAN users.
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Technical Information | |
| Features | Fanless |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 2.0 |
| Miscellaneous | |
| Application/Usage | Network |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 7.72 lb (3500 g) |
| Height | 9.06" (230 mm) |
| Width | 12.99" (330 mm) |
| Depth | 1.72" (43.60 mm) |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| 2 x Gigabit Ethernet Expansion Slot | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SS2GR4010P |
| Manufacturer Website Address | http://www.amermounts.com |
| Manufacturer | Amer Networks, Inc |
| Product Model | SS2GR4010P |
| Product Name | SS2GR4010P Ethernet Switch |
| Product Series | SS2GR4000 |
| Brand Name | Amer |
| Power Description | |
| Input Voltage | 120 V AC |
| 23 V AC | |
| Power Source | AC |
| Power Supply | |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 144 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 124 W |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1D |
| IEEE 802.1Q | |
| IEEE 802.1x | |
| IEEE 802.3af | |
| IEEE 802.1s | |
| IEEE 802.3ad | |
| IEEE 802.1ad | |
| IEEE 802.3az | |
| IEEE 802.3at | |
| IEEE 802.1w |
