À propos du produit

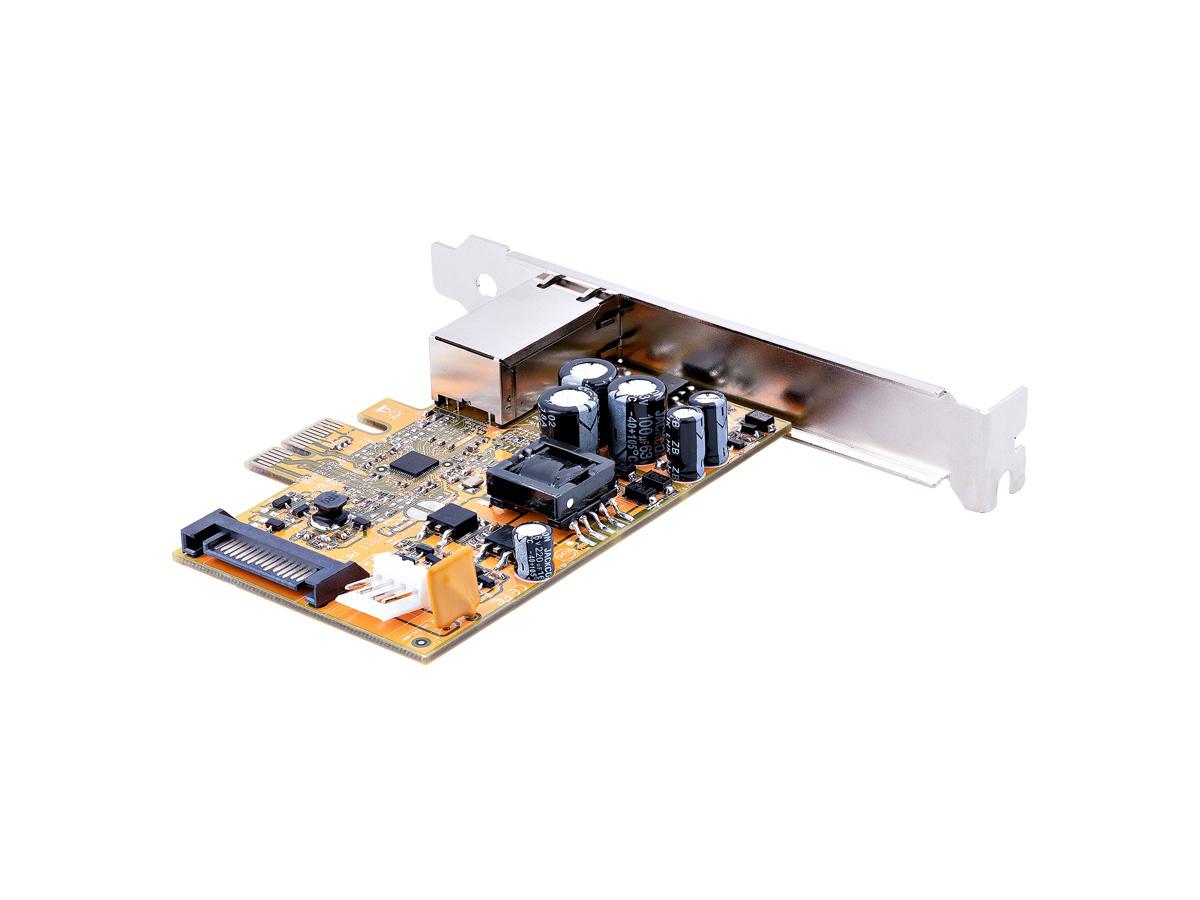

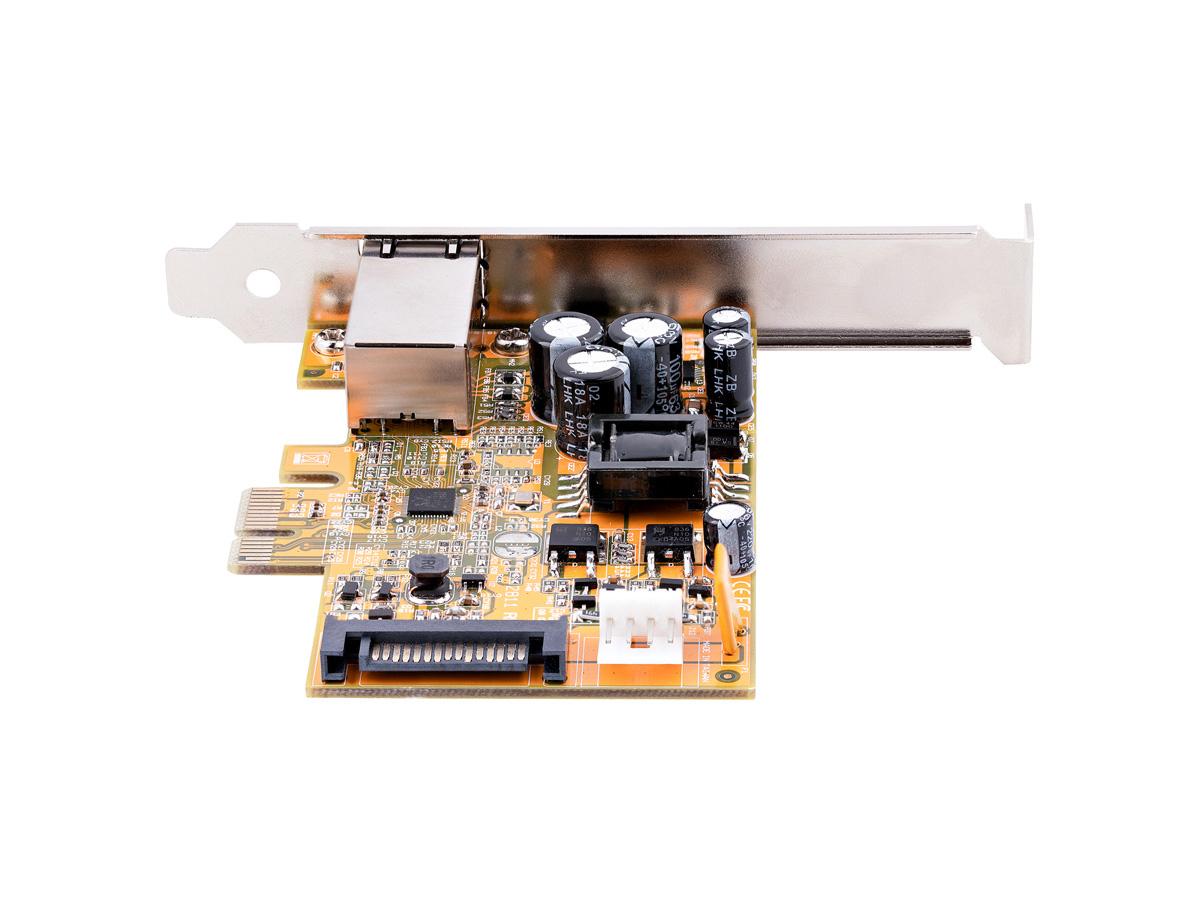

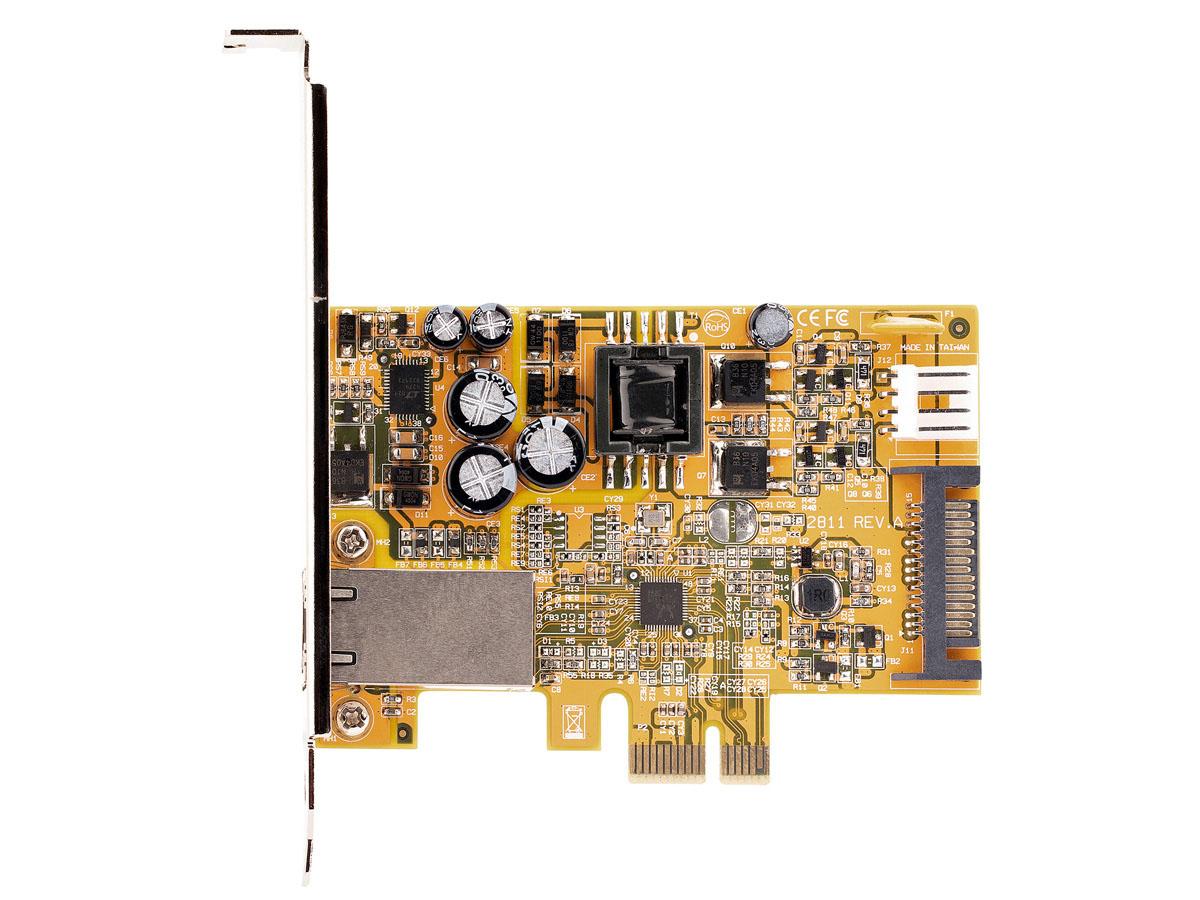

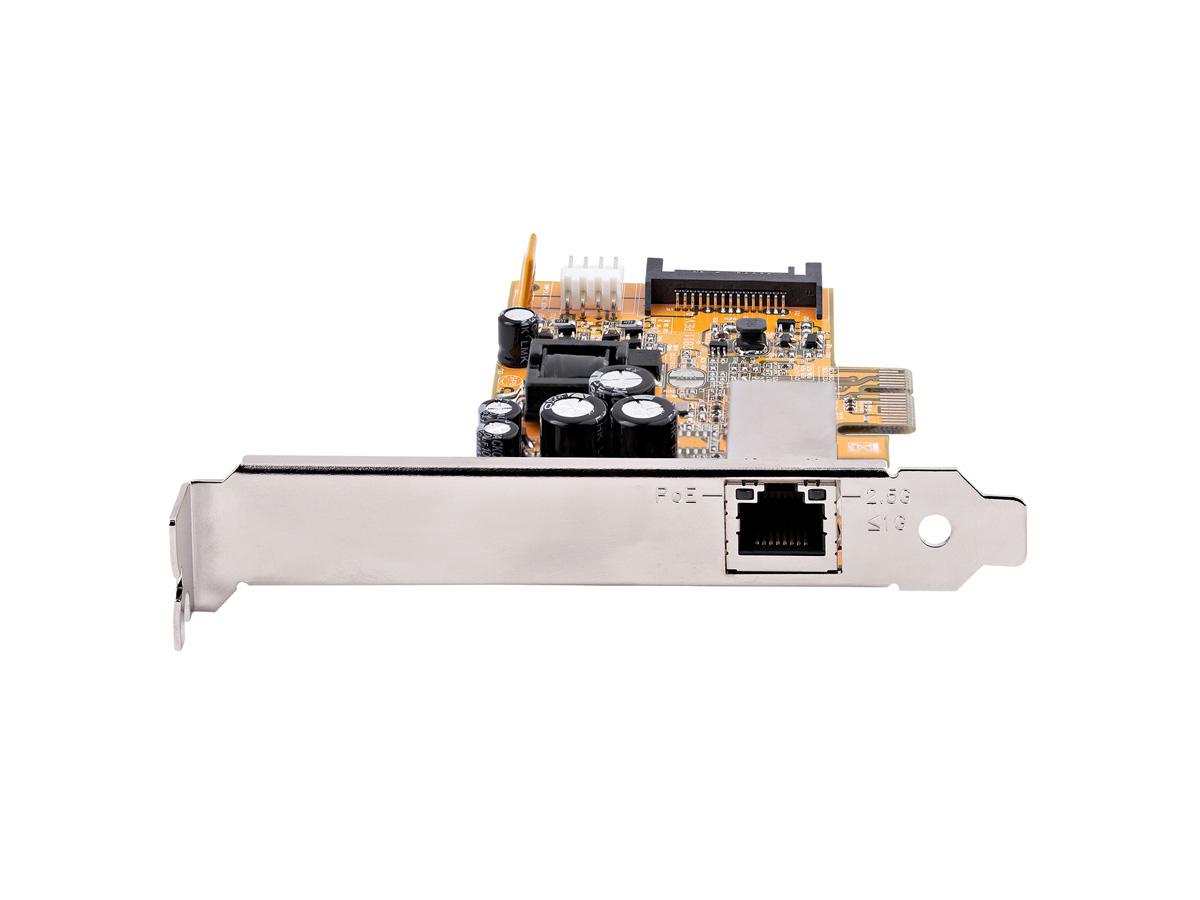

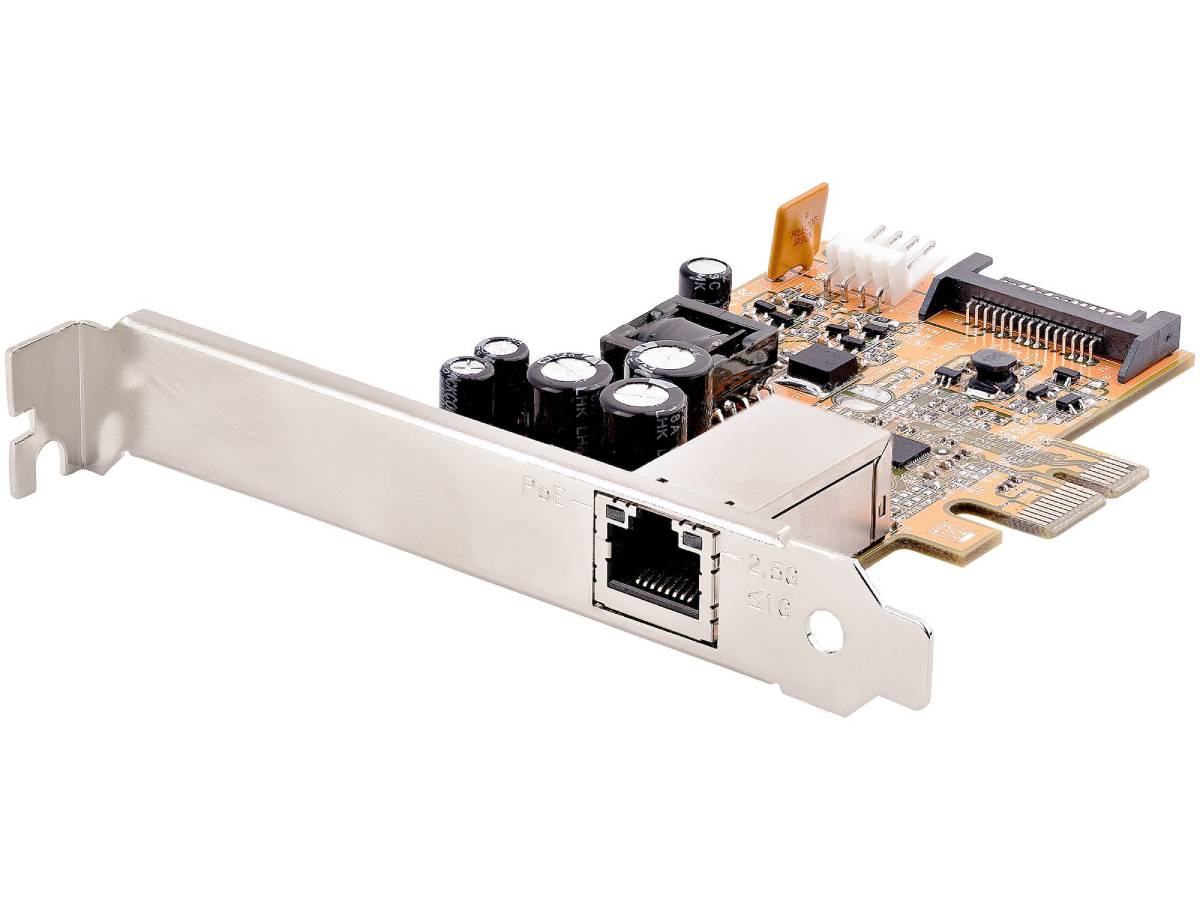

La carte réseau PCIe Power over Ethernet offre des débits multigigabit de 2,5/1 Gbit/s et 100/10 Mbit/s. Cet adaptateur LAN PoE peut fournir jusqu'à 25,5 W d'alimentation à un appareil connecté. Il combine une connexion de données réseau et une alimentation via un seul câble Ethernet Cat5e (ou supérieur). Cette carte réseau PoE est la solution idéale pour assurer à la fois l'alimentation et la communication réseau d'une installation distante.
Spécifications techniques
| Primary Information | |
| Product Description: | StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45 Port, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket Included - NBASE-T, Windows/Linux Support (ST1000PEXPSE) - network adapter - PCIe 2.1 - 2.5GBase-T (PoE+) x 1 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express 2.1 x1 |
| Ports: | 2.5GBase-T (PoE+) x 1 |
| Dimensions (WxDxH): | 0.6 in x 3.7 in x 2.5 in |
| Weight: | 7.76 oz |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, NBase-T |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Data Transfer Rate: | 2.5 Gbps |
| Capacity: | Jumbo frame size: 16000 |
| Processor: | 1 x Realtek Semiconductor RTL8125B |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az |
| System Requirements: | Microsoft Windows 11, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2019, Linux Kernel 2.4.20 or later (LTS versions only) |
| Manufacturer Warranty: | 2-year warranty |
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express 2.1 x1 |
| Networking | |
| Ports: | 2.5GBase-T (PoE+) x 1 |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, NBase-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate: | 2.5 Gbps |
| Capacity: | Jumbo frame size: 16000 |
| Status Indicators: | PoE, link |
| Features: | PoE, EEE, VLAN Tagging, WOL, flow control, Auto MDIX, full duplex capability, PXE boot, 30W PoE+ power budget, PSE, RealWoW! Technology |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az |
| Processor / Memory | |
| Processor: | 1 x Realtek Semiconductor RTL8125B |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1/2.5GBase-T (PoE+) - RJ-45 ¦ 1 x SATA power - 15 pin Serial ATA power ¦ 1 x SP4 power - 4 pin connector - male |
| Miscellaneous | |
| Included Accessories: | Low-profile bracket, full-height bracket |
| Compliant Standards: | RoHS, RCM, WEEE |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities |
| OS Required: | Microsoft Windows 11, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2019, Linux Kernel 2.4.20 or later (LTS versions only) |
