À propos du produit

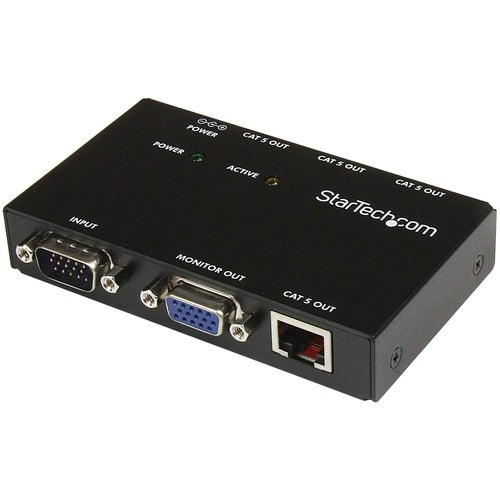

The ST1214T 4 Port VGA Video Extender over Cat 5 allows a single VGA source to be broadcast to up to four remote displays at distances of up to 500 feet (150 meters). Designed for use with our ST121 VGA Video over Cat 5 extension series of devices, the ST1214T is one of many options designed to help you create a custom VGA distribution and extension solution for many applications including digital signage and video conferencing.
Consisting of the transmitter unit only, this product requires a single ST121EXT VGA over Cat 5 Repeater can be used to increase the total VGA extension distance by an additional 500 feet(150 meters), allowing the original VGA signal to be broadcast a total distance of 1000 feet (300 meters) from transmitter to receiver. Similarly, up to three repeater units can be used between the transmitter and receiver units allowing a monitor to be connected at each repeater station , while further extending the total distance between the transmitter and receiver units.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
Spécifications techniques
| Power Description | |
| Input Voltage | 9 V DC |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5 |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | VGA |
| Maximum Video Resolution | 1600 x 1200 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Number of Input Devices Supported | 1 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Inputs | 1 |
| General Information | |
| Product Type | Video Extender Transmitter |
| Manufacturer Part Number | ST1214T |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 4 Port VGA Video Extender over Cat 5 |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Height | 0.80" (20.32 mm) |
| Transmitter Width | 2.50" (63.50 mm) |
| Transmitter Depth | 4.10" (104.14 mm) |
| Transmitter Weight (Approximate) | 7.09 oz (201 g) |
| Product Color | Black |
| Color Family | Black |
