This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations

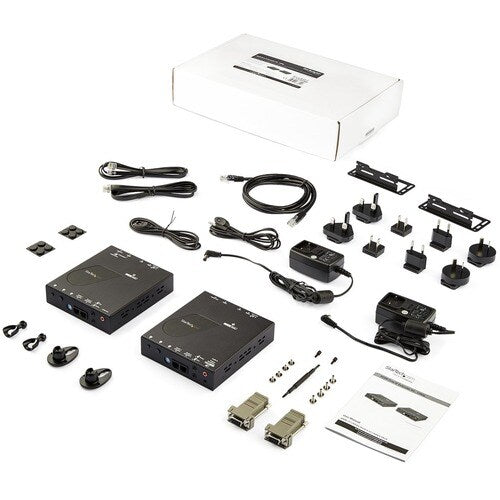

The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Scalable video distribution system extends your HDMI video signal and RS232 control to one or multiple displays
- Create stunning video walls easily using a single or multiple video source with multiple receivers
- Manage and control your digital signage with the intuitive mobile app
- Crystal-clear picture quality, video resolutions up to 1080p
- Tidy, professional installation with included mounting hardware
Spécifications techniques
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | ST12MHDLAN2K |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Name | HDMI over IP Extender Kit with Video Wall Support - 1080p |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.20" (30.48 mm) |
| Transmitter Width | 4.60" (116.84 mm) |
| Transmitter Depth | 5.20" (132.08 mm) |
| Receiver Height | 1.20" (30.48 mm) |
| Receiver Width | 4.60" (116.84 mm) |
| Receiver Depth | 5.20" (132.08 mm) |
| Transmitter Weight (Approximate) | 2.60 oz (73.71 g) |
| Receiver Weight (Approximate) | 2.60 oz (73.71 g) |
| Product Color | Black |
| Color Family | Black |
